| Place of Origin: | Hefei,Anhui |
| Brand Name: | Liquid Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 0.1-0.5 Micron Liquid Filter Bag | Efficiency: | 99.9% High Efficiency Filter Bags |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 0.1-0.5micron Dust Filter |
| Type: | 0.1-0.5micron P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 450g/M2 dust collector filter bags,2mm Dust Clollector Filter Bags,450gsm polyester felt filter bag |
||
PP/PE/NMO/PTFE liquid filtration filter bag
Item name: Liquid filter bag
Styles Of Filter Bag Media
FELT: Available in polyester and polypropylene, felt is generally used when particle retention of 1-200 microns is required. Felt media provides three dimensional depth filtration, resulting in a much higher solids loading capacity over the equivalent area of mesh fabric.
MESH: NYLON MONOFILAMENT- A woven fabric with evenly spaced holes. Suitable for surface filtration only, monofilament consists of single untwisted thread. Bags are available in 25-800 microns.
POLYESTER MULTIFILAMENT- Also suitable for surface filtration, this low cost, disposable fabric consists of many smaller diameter threads twisted together. Available in 100-800 microns.
Convertion Chart
| Mesh | 12000 | 5000 | 2500 | 1250 | 625 | 550 | 300 | 200 | 140 | 120 | 100 |
| μm | 1 | 3 | 5 | 10 | 20 | 25 | 50 | 70 | 100 | 125 | 149 |
| Mesh | 70 | 60 | 50 | 45 | 35 | 30 | 25 | 20 | 18 | 16 | 14 |
| μm | 200 | 250 | 300 | 350 | 500 | 590 | 710 | 840 | 1000 | 1200 | 1400 |
| Material Physical and chemical Performance | |||||
| Material | PE | PP | MO | RY | PTEE |
| Strong Acid | Very good | excellent | poor | general | excellent |
| Weak Acid | Very good | excellent | general | good | excellent |
| StrongAlkalis | poor | excellent | excellent | Very good | excellent |
| Weak Alkalis | Very good | excellent | excellent | good | excellent |
| Solvents | Very good | poor | good | good | Very good |
| Oxidising Agent | good | poor | general | good | Very good |
| Abrasion Resistance | Very good | very good | excellent | general | poor |

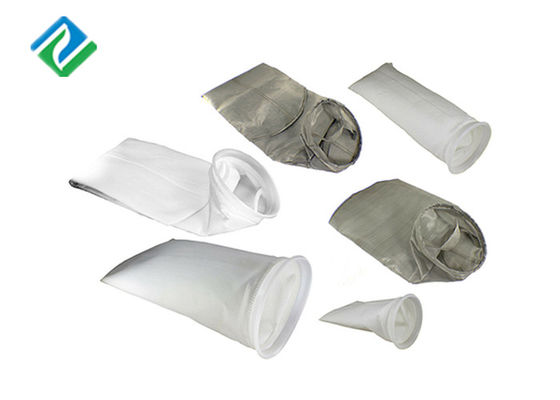

Product Show
Available Materials:
Nylon Monofilament
Polyester Multifilament
Polypropylene Monofilament
Polyester Monofilament (requires special order)
We can support
0.1 micron filter bag
1 micron filter bags
5 micron filter bag
0.5 micron filter bag
25 micron filter bag
10 micron filter bag
200 micron filter bag
50 micron filter bag
100 micron filter bag
Standard Filter Bag
standard filter bag includes a steel ring collar that is designed to gasket as well as support and secure the filter bag when placed into the bag housing.

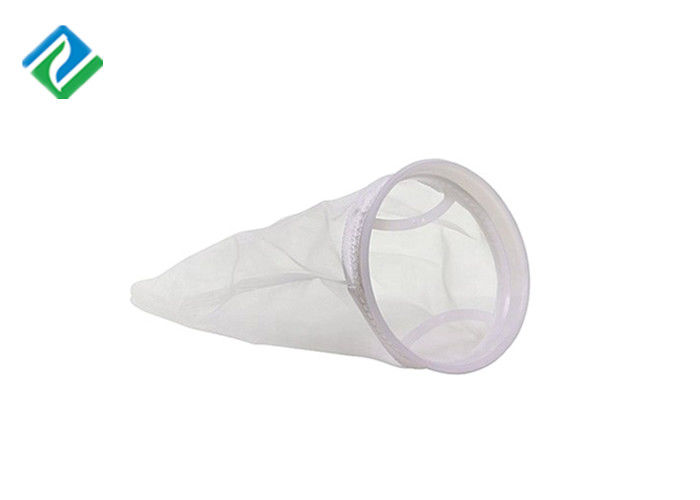

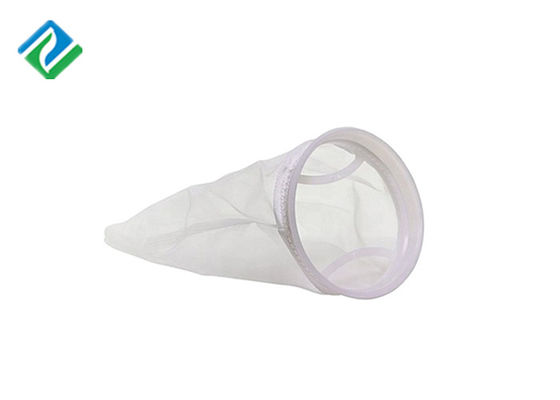

Nylon Mesh (monofilament) liquid filter bag
Steel ring stitched filter bag
Plastic welded liquid filter bag
welded bag was designed to meet the following requirements:
No Needle Holes
No Thread Contamination
Precision bonded cutting of the fabric edges
Maintain same efficiency as filter media
2# 7'X32' liquid filter bag making factory
plastic collar was engineered to meet the following requirements:
Molded plastic with built-in handle makes installation and disposal faster, cleaner, and less expensive
100% incinerable
Just drop into housing and push down
Smooth plastic designs prevent build-up of contaminants around header
Collar is sewn into place to ensure that plastic and media remain firmly intact throughout filter life
Oil Adsorption Bags
Material and Micron Rating
Polypropylene Felt: Micron rating available in 1-3-5-10-25-50-100
Polyester Felt: Micron rating available in 1-5-10-25-50-75-100-200
Styles
Plastic Ring,Metal Ring
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
