| Place of Origin: | Made in China |
| Brand Name: | Filter Bag For Cement Plant |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Cement Filter Bags PTFE Material | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | 550gsm Dust Collector Filter Bags,2mm Dust Collector Filter Bags,P84 pps filter bag |
||
Filter bag details
1) Different material:
Polyester / PPS / Aramid / P84 / PTFE / Acrylic / FMS / Glasfiber / Antistatic etc
2) Finish treatment:
Singeing / Calendering / Water&Oil repellent / PTFE dipping / Antistatic etc
3) Filter bag processing method:
Sewing&Hot sealing
4) Filter bag size:
Customize according to customer's requirement
5) Working temperature(℃):
150 - 500
6) Filtration effeciency(mg/nm³):
5 - 10
7) Working life:
up to 10000 hours(standard product)
8) Production capacity:
5000 pieces per day
Specifications
|
Product Name
|
P84 Filter bag
|
|
Product Code
|
P84-450 filter bag
|
|
Weight (g/ m2) 450
|
|
|
Thickness (mm)
|
2.1mm
|
|
Tensile Elongation(%)
|
<35
|
|
Broken strength
(Mpa/min) |
2.55
|
|
Width
|
nata
|
|
Loss on Ignition (%)
|
≥10
|
|
Chemical Finish
|
High temperature hot pressing, Singeing
|
|
Air Permeability (L/m²S@200Pa)
|
19
|
|
Bottom load/ entry(common in bin vents)
|
Disk With Wear Strip
|
|
Top load/ entry(walk-in plenum)
|
Snap Band
|
|
Tensile Strength(N/5X20cm)
|
650 Warp
|
|
1150 Weft
|
|
|
Temperature
|
|
|
Continues temperature
|
260 C°
|
|
Instant temperature
|
280 C°
|
Filter Bag Specification
| Type | Flow rate(m3/h) | Filtration Area(m2) | Size (Diameter X Length) | |||||
| #1 | 20 | 0.25 | 7" x 16" (180mm x410mm) | |||||
| #2 | 40 | 0.50 | 7" x 32" (180mm x 810mm) | |||||
| #3 | 6 | 0.10 | 4" x 8.25" (102mm x 210mm) | |||||
| #4 | 12 | 0.15 | 4" x 14" (102mm x 356mm) | |||||
| #5 | 25 | 0.30 | 6 7/8" x 34" (175mm x 870mm) | |||||
| *Size could be on your request. | ||||||||
Working Conditions
| Temp. | Aqueous | Aliphatic | Alkaline | Strong Alkaline | Aromatic | Acid | Strong Acid | |
| PET | 130℃ | √ | √ | √ | √ | √ | ||
| PPF | 90℃ | √ | √ | √ | √ | √ | ||
| PPP | 90℃ | √ | √ | √ | √ | √ | ||
| NMO | 130℃ | √ | √ | √ | √ | √ |
ORDER INFORMATION
| PRODUCT | MATERIAL | MICRON | Seal Type | SIZE | How to Order ?-Example | |||
| FB | PET | 5um=500 | Steel Ring- S | 1 |
Polyester Filter Bag; 5um; Steel Ring; Selection Code is: FBPET500S1 |
|||
| PPF | 10um-1000 | Polyester Ring -P | 2 | |||||
| PPP | 25um-2500 | 3 | ||||||
| NMO | 50um-5000 | 4 | ||||||
| 75um-7500 | 5 | |||||||
| 100um-10000 | 6 | |||||||
| 7 | ||||||||
| X-special | ||||||||

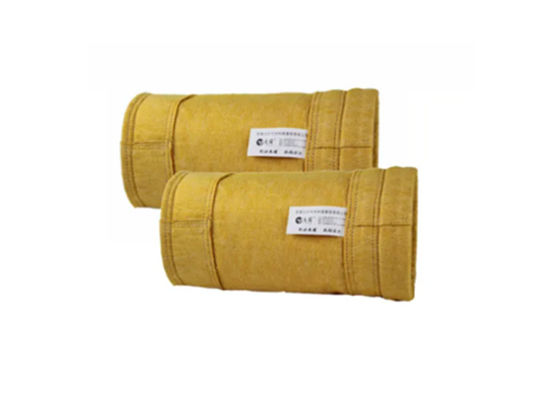

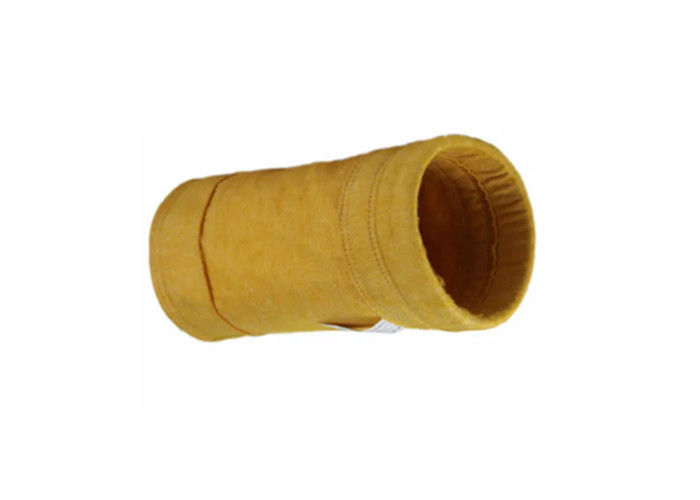

Product Show
Produce process:
1)Fiber:high grade Aramid fiber
2)Scrim: Aramid/PTFE
3)Produce Process:needle punched
4)Filter Felt Weight: 550±20gsm
5)Filter Felt Thickness: 2.0±0.2mm
6)Finish treatment:Singeing, calendaring, PTFE dipping
7)Laboratory Testing:check the test report below
8)Cut according to customer's requirement
9)Packing according to customer's requirement
Precautions for dust bag installation
1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.
FAQ
| Q1. How about your delivery time? |
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
| Q2. Can you produce according to the samples? |
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
| Q3. Is it convenient to install and operate the equipment? |
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
| Q4. What is your terms of payment? |
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
| Q5. Can it really meet the environmental requirements? |
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
| Q6. What if the equipment is broken? |
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
