Nonwoven Filter Socks Used In Cement Plant Polyester Filter Bag For Dust Collector





Product Details

---

Nonwoven (filter socks) used in Cement plant Polyester filter bag for dust collector



Structure:



Polyester filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.



Specifications



The diameter of the Polyester filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length. Polyester filter bag

Polyester filter bag Polyester filter bag

The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference. Polyester filter bag.





Product Name		NOMEX	P84 Composited Material	P84	FMS
Fiber		NOMEX	NOMEX+P84	P84	P84+Fiberglass
Scrim		NOMEX	PTFE	PTFE	PTFE
Weight(g/m2)		550	600	650	650
Temperature(℃)Continuous		204	160	170	260
Temperature(℃)Peak		230	190	200	280
N/5*20cm)Break Strength Elongation At Break%	Warp	>800	>900	>800	>800
	Weft	>1000	>1200	>1000	>1000
	Warp	<30	<30	<30	<30
	Weft	<50	<50	<50	<50
Air Permeability(m3/m2*min)		10~15	10~15	10~15	10~15
(m/min)Filtration Velocity		<1.2	<1.2	<1.2	<0.8
Applications		Good corrosion resistance, wear resistance, applicable to large and medium-sized cement kiln head	Good corrosion resistance, wear resistance,easy to dust remove, applicable to large and medium-sized cement kiln headand tail	Good corrosion resistance, wear resistance, applicable to large and medium-sized cement kiln tail	High-temperature corrosion resistance ,Bad wear-resisting performance, apply filtering wind speed is low, medium and small cement kiln. Kiln head:superfine fiber NOMEX/PTFE fabric Fiber:superfine NOMEX fiber +NOMEX fiber Finish treatment:PTFE Membrane Sew thread:PTFE sewing thread Features: High filtration concentration,

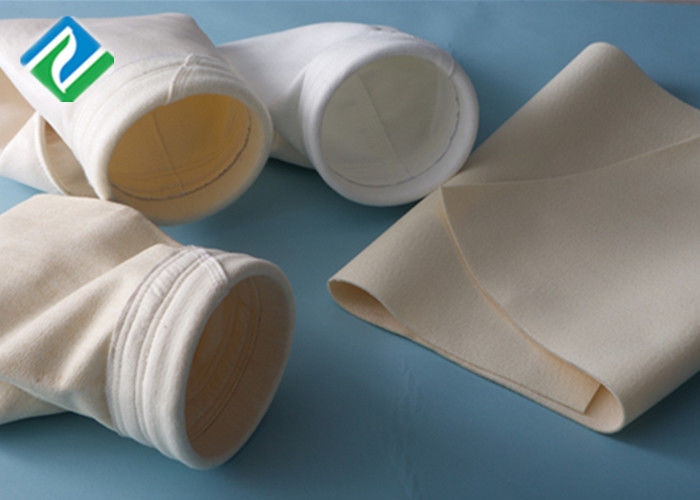

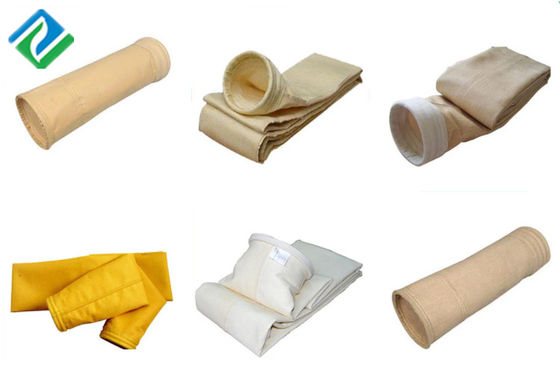

Product Picture

---

Quality Control

For Cement Industry

Polyester filter bag

We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.

Produce process:

1)Fiber:high grade Aramid fiber

2)Scrim: Aramid/PTFE

3)Produce Process:needle punched

4)Filter Felt Weight: 550±20gsm

5)Filter Felt Thickness: 2.0±0.2mm

6)Finish treatment:Singeing, calendaring, PTFE dipping

7)Laboratory Testing:check the test report below

8)Cut according to customer's requirement

9)Packing according to customer's requirement

Precautions for dust bag installation

1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.
