| Place of Origin: | Made in China |
| Brand Name: | Filter Bag For Cement Plant |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Cement Filter Bags | Material: | Nomex , P84 , FMS , P84 Composited Material |
|---|---|---|---|
| Application: | Cement Kiln Tail | Feature: | High Filtration Concentration |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Air Filtration,Powder Filtration,Metal Collection Ect., |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 25 Micron Cement Filter Bags,P84 Cement Filter Bags,PTFE 4 inch dust collector bag |
||
Product Details
Physical Properties:
|
Weight(g/㎡)
|
500
|
|
|
Thickness(mm)
|
2.0
|
|
|
Width(mm)
|
≤2.2m
|
|
|
Finish treatment
|
Singeing, Calendering, Heat setting
|
|
|
Air permeability(L/m2.s)
|
150-300
|
|
|
Tensile strength(N/5cm)
|
warp
|
≥800
|
|
weft
|
≥1000
|
|
|
Tensile elongation(%)
|
warp
|
≤20
|
|
weft
|
≤45
|
|
|
Temperature(°C)
|
Continue
|
130
|
|
Instant
|
160
|
|
|
Heat shrink@150degc,90min
|
<2%
|
|
| Product Name | NOMEX | P84 Composited Material | P84 | FMS | |
| Fiber | NOMEX | NOMEX+P84 | P84 | P84+Fiberglass | |
| Scrim | NOMEX | PTFE | PTFE | PTFE | |
| Weight(g/m2) | 550 | 600 | 650 | 650 | |
| Temperature(℃)Continuous | 204 | 160 | 170 | 260 | |
| Temperature(℃)Peak | 230 | 190 | 200 | 280 | |
| N/5*20cm)Break Strength Elongation At Break% |
Warp | >800 | >900 | >800 | >800 |
| Weft | >1000 | >1200 | >1000 | >1000 | |
| Warp | <30 | <30 | <30 | <30 | |
| Weft | <50 | <50 | <50 | <50 | |
| Air Permeability(m3/m2*min) | 10~15 | 10~15 | 10~15 | 10~15 | |
| (m/min)Filtration Velocity | <1.2 | <1.2 | <1.2 | <0.8 | |
| Applications | Good corrosion resistance, wear resistance, applicable to large and medium-sized cement kiln head |
Good corrosion resistance, wear resistance,easy to dust remove, applicable to large and medium-sized cement kiln headand tail |
Good corrosion resistance, wear resistance, applicable to large and medium-sized cement kiln tail |
High-temperature corrosion resistance ,Bad wear-resisting performance, apply filtering wind speed is low, medium and small cement kiln. Kiln head:superfine fiber NOMEX/PTFE fabric Fiber:superfine NOMEX fiber +NOMEX fiber Finish treatment:PTFE Membrane Sew thread:PTFE sewing thread Features: High filtration concentration, |
|
1. Material: PPS P84 PTFE Acrylic Fiber
2. Weight: 500g/ ㎡
3. Thickness: 2.0 mm
4. Working temperature: ≤130℃
5. High quality&Low price
Aplication:
1. Industry
2. Chemical
3. Stainelss Steel Factory
4. Cement Factory
5. Waste Incineration Factory
6. Gypsum Factory
7. Thermal Power Plant

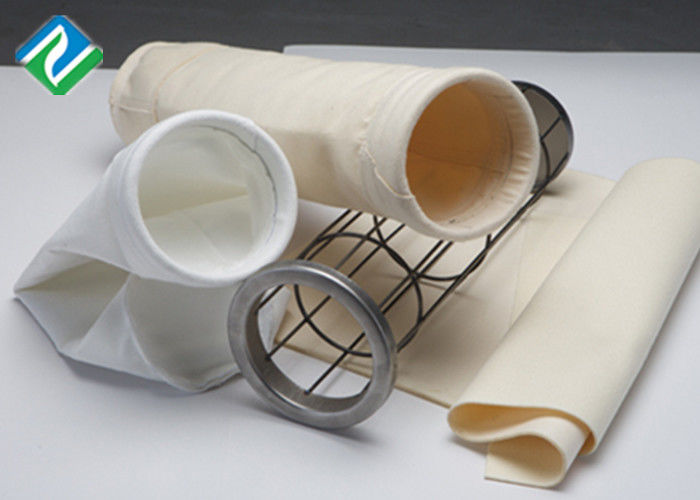

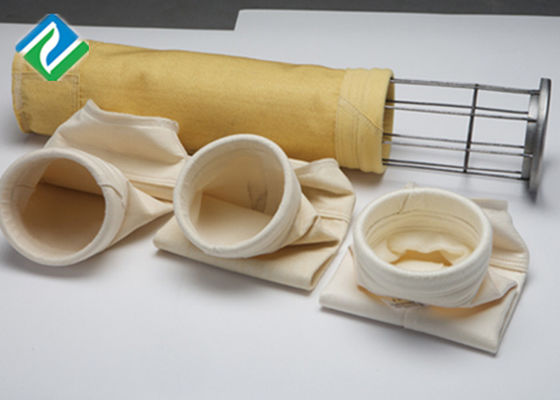

Product Image
For Cement Industry
Polyester filter bag
We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.
Produce process:
1)Fiber:high grade Aramid fiber
2)Scrim: Aramid/PTFE
3)Produce Process:needle punched
4)Filter Felt Weight: 550±20gsm
5)Filter Felt Thickness: 2.0±0.2mm
6)Finish treatment:Singeing, calendaring, PTFE dipping
7)Laboratory Testing:check the test report below
8)Cut according to customer's requirement
9)Packing according to customer's requirement
FAQ
| Q1. How about your delivery time? |
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
| Q2. Can you produce according to the samples? |
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
| Q3. Is it convenient to install and operate the equipment? |
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
| Q4. What is your terms of payment? |
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
| Q5. Can it really meet the environmental requirements? |
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
| Q6. What if the equipment is broken? |
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
