| Place of Origin: | Hefei,Anhui |
| Brand Name: | Non Woven Dust Collector Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 0.1 5 10 25 Micron Dust Collector Filter Bags | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 0.1 5 10 25 Micron Dust Filter |
| Type: | 0.1 5 10 25 Micron Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 1 Micron Filter Bag Dust Collector,450gsm 1 Micron Filter Bag Dust Collector,0.1 micron air filter bag |
||

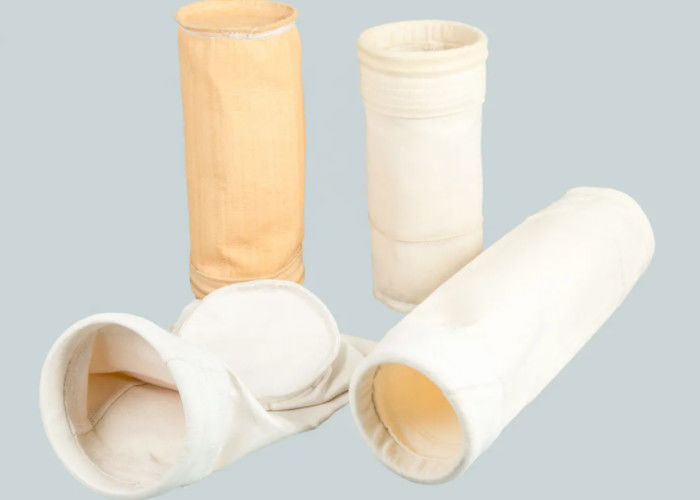

Product Show
Product Parameters
PTFE filter bags are applied in pulse jet cleaning dust collectors where chemical resistance and durability are reruired.
100%PTFE filber high temperature felt
PTFE scrim reinforced felt which is surface treated can withstand various conditions.
Common treatments include singed, canlender and ePTFE membrane.
The efficiency of membrane PTFE felt reach 99.9999% through surface filtration with 260ºC continuous service
temperture,excellent acid and resistance.
PRODUCTION DETAILS
| Polyester Filter Felt | Scrim Material | Polyester staple yarn | Heat Set | ||
| Suitable for temperature lower than 130C, weakly acidic or alkalescent environment. | Weight | GSM | 500 | Calendar | |
| Thickness | mm | 1.8 | Singe | ||
| Airpermeability | L/dm2/min | 130-180 | Teflon Coating | ||
| Tensile Strength | Warp | >=N | 1000 | Water and Oil Repellant | |
| Weft | >=N | 1200 | PTFE Membrane Coating | ||
| Break Elongation | Warp | <% | 25 | Weight, thickness, finishing style can be made on customized order. | |
| Weft | <% | 45 | |||
| Work Temp | Continuous | >ºC | 135 | ||
| Peak | >ºC | 150 |
|||
PP(Polypropylene)
1. Operating Temperature:<90 centigrade
2. Maximum Temperature:<100 centigrade
3. Wear Resistance:Fair
4. Hydrolisis Resistance:Excellent
5. Alkaline Resistance:Excellent
6. Acidic Resistance:Excellent
7. Anti-oxidability:Fair
8. The filter precision can reach less than 1 micron.
Product Picture
Notices:
Polypropylene is a relatively low temperature fiber with quite excellent chemical resistance which finds use in specialist applications such as the chemical industry.
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
