| Place of Origin: | Made in China |
| Brand Name: | Air Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | Fiber Glass | Shape: | Round |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 5 Micron Dust Collector Filter Bags,750gsm Dust Collector Filter Bags,450gsm industrial dust collector bags |
||
Production Feature
|
SPECIFICATIONS FOR FIBER GLASS FILTER BAG
|
|||
| operation temperature | 230-250℃ | maximum surge temperature | 280℃ |
| grammage(g/m2) | 800-1000 | subsequent processing | teflon coating |
| anti-acid | good | ||
| anti-alkali | fair | ||
| anti-hydrolysis | fair | ||
| air permeability(m3/m2*min) | 10-13 | ||
| tensile strength | L(N/5*20cm) | >1800 | |
| W(N/5*20cm) | >2000 | ||
| Use industry | apply filters in steel, metallurgy, carbon black, power generation, cement, chemical industry, high temperature flue gas | ||
| Product Name | P84 High temperature needled felt | Acrylic felt with high strength and low thrust | Nomex needled felt (medium temperature) | |
| Weight(g/㎡) | ≥850 | ≥550 | ≥900 | |
| Material | Alkali free glass fibre/P84 | Acrylic fine fiber/Acrylic scrim | Glass fiber/aramid/polyester | |
| Thickness(mm) | 2.3 | 2.0 | 2.0 | |
| Air Permeability(m³/㎡/min ) | 16.0 | 10.0-14.0 | 8.0-15.0 | |
| Elogation at break % | Warp | ≤35% | ≤35% | ≤10% |
| Weft | ≤55% | ≤45% | ≤10% | |
| Tensile Strength (N5*20CM) | Warp | ≥1200 | ≥900 | ≥1500 |
| Weft | ≥1400 | ≥1000 | ≥1700 | |
| Operating temperature | 260℃ | 80-140℃ | 80-140℃ | |
| Instantaneous temperature | 280℃ | 160℃ | 170℃ | |
| Finish Treatment | Calendering,Singed,Heat-set,Antistatic,PTFEmembrane | Singeing, calendering, waterproof | Oil and water proof,PTFEmembrane | |

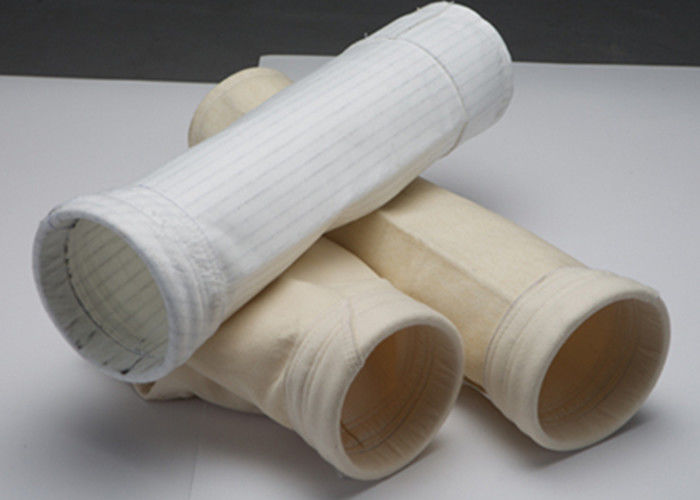

Product Image
1) Free sample is available for quality test before order.
2) The lifetime of qualified bag can last from two years to six years under the condition of reasonable usage.
3) Has the special advantages of low price,high temperature resistant.
4) Functional treatment: PTFE impregnation, coating, laminating and so on.
5) Suitable for pulse dust cleaning and high speed wind counter blowing and other kinds of bag type dust collector.

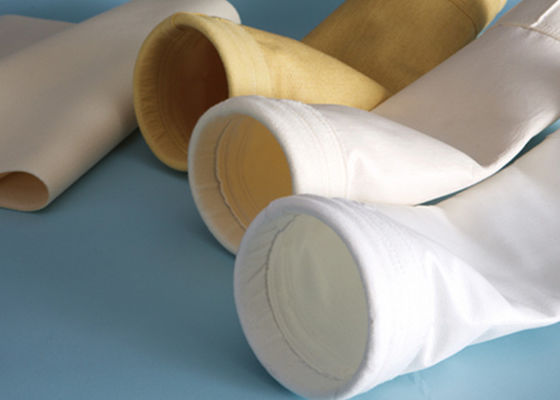

Dust filter bag
Fiber Glass filter is a reasonable structure, better performance of high-temperature filter material. It not only has a fiberglass fabric temperature, corrosion resistance, dimensional stability, elongation minimal shrinkage, high strength advantage, and carpet fiber is the short fiber which finess is just about 5-7 microns, three-dimensional porous structure, porosity, gas filtration resistance, is a relatively high speed, high temperature filter material. Compared with other high-temperature chemical fiber carpets, low price, low running resistance, high filtration precision, higher temperature, and other special advantages, but poor wear resistance.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Elaine Li
Tel: 17805600899
