| Place of Origin: | Anhui,China |
| Brand Name: | Filter Bag Cage |
| Certification: | ISO9001-2015 |
| Model Number: | Filter Bag Cage |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | Negotiable |
| Product Name: | Filter Bag Cage | Applicable Industries: | Manufacturing Plant |
|---|---|---|---|
| Function: | Back Bone Support For The Dust Filter Bag | Main Function: | Filter Bag Skeleton |
| Application: | Environment Friendly | Treatment: | Epoxy , Galvanization |
| Material: | Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel | Type: | Round |
| Advantage: | Strong Welding | ||
| High Light: | 6.62'' Filter Bag Cage,5.25'' Filter Bag Cage,6.62'' dust collector filter cage |
||
Product Information
Quick details:
1) no corrosion
2) no damage
3) 3-5 times longer life than other bag Cage with steel
4) economical maintenance(almost no Maintenance required)
5) prominent effect in removing dust from Filter by pulsing
6) easy to install
7) no ventury installation required Application: Dust from factory of mine, wood, Cement, chemical, medicine, dying,Paint, plastic, food & other industry.
| Fiber Composition | Polyester |
Polyester with PTFE membrane |
PTFE |
FMS |
P84 |
PPS |
Nomex |
| Weight (g/m2) | 500 | 500 | 750-800 | 800 | 500 | 500-550 | 450-600 |
| Thickness (mm) | 1.7-2.0 | 1.7-2.0 | 1.2-1.6 | 1.8-3 | 2.1 | 1.8-2.0 | 1.9-2.4 |
| Running Temperature (°C) | 130 | 130 | 240 | 200 | 180 | 160 | 200 |
| Peak Temperature (°C) | 150 | 150 | 260 | 280 | 260 | 190 | 240 |
| Air Permeability (M3/M2.S. 200Pa) |
8-12 | 8-12 | 5-8 | 15 | 14 | 15 | 8-12 |
| Mechanical Finish | Singeing, calendaring, heat-set | Singeing | |||||
| Chemical Finish | membrane | Water and oil repellent |
PTFE impregnated peritoneal | ||||
| Warp Of Stretch Strength | 800 | 1000 | 600 | 1400 | 900 | 900 | 900 |
| Welf Of Stretch Strength | 1200 | 1300 | 800 | 1600 | 1200 | 1200 | 1200 |
| Resistance to Acid | Medial | Fair | Excellent | Excellent | Excellen | Excellent | Fair |
| Resistance to Oxidation | Excellent | Good | Excellent | Excellent | Excellent | Poor | Fair |
| Resistance to Alkali | Medial | Poor | Excellent | Excellent | Excellent | Excellent | Good |
| Resistance to Hydrolysis | Medial | Poor | Excellent | Fair | Excellent | Excellent | Fair |
| Application | 1) The fume and smoke treatment and particle removing system in metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power plant 3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing |
||||||
| Size | Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192'' | ||||||
| Filter Bag Top Construction | 1) Side Load: raw edge top (3" longer than split collar cage length) 2) Top Load: snap band/ring ; double beaded |
||||||
| Bottom Construction | 1) Single-ply felted disc bottom 2) 3" bottom; double-ply wearguard 3) 5" wear cuff with 2" overhang below bag disc bottomBottom Construction |
||||||

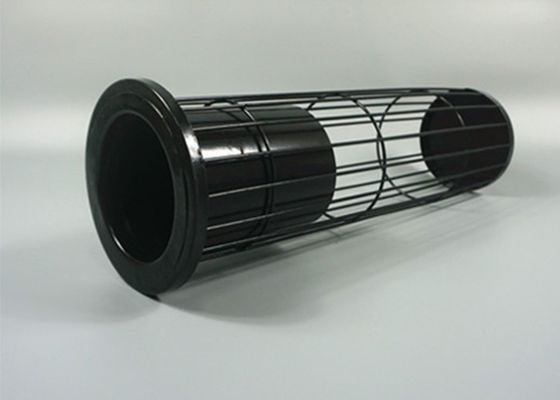

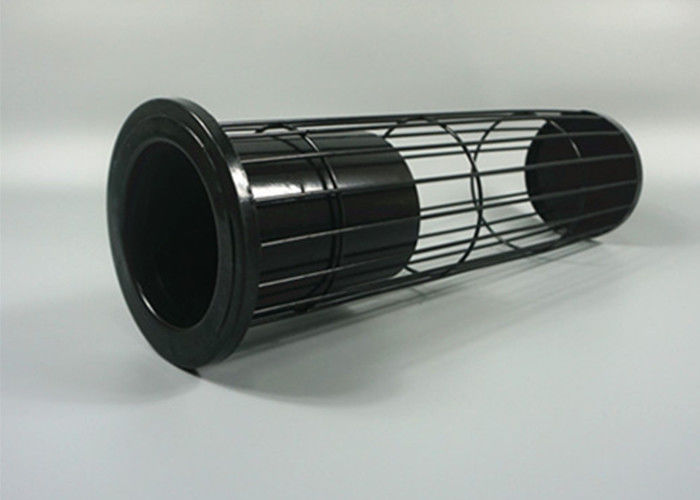

Product Show
Main Features
1. The longitudinal and anti-supporting rings of the skeleton are evenly distributed to prevent damage and deformation. The top is equipped with a cold stamping pipe, which is used to ensure the safety of the bag cage and the protection of the filter bag.
2. Once the skeleton production line is formed, ensure straightness and distortion, smooth and without burr after welding, and have sufficient strength not to unsolder, without dissoldering, virtual soldering and leakage welding.
3. The design structure is strong and reliable, and the service life is longer.
4. Accept custom, can provide the elliptical, envelope and fold shape, multi type, venturi tube, the protection under the short tube, discharge type, plug type, chuck type connection mode of skeleton dust removal, and can produce different specifications according to customer requirements of different surface treatment of different connection mode frame of dust.
Product Advantage
Round shape filter cage
1. The circular structure is adopted, and the longitudinal reinforcement and the reverse supporting ring of the bag cage are evenly distributed.
2. Sufficient strength and stiffness to prevent damage and deformation.
3. The top is equipped with a cold stamping short tube to ensure the safety of the cage and the protection of the filter bag.
Filter cage material
1. Stainless steel is used to form a skeleton production line for one time
2. Ensure straightness and distortion. Filter bag frame is smooth and burr free after welding.
3.There is sufficient strength without soldering, no soldering, virtual welding and missing welding.
Galvanizing technology
1. Zinc layer is strong, wear-resistant and corrosion resistant.
2. It avoids the corrosion of the skeleton surface and the adhesion of filter bags after a period of time.
3. The bag is guaranteed to be smooth and the damage to the bag is reduced during the bag changing process.
FAQ
Q1. How about your delivery time?
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. Is it convenient to install and operate the equipment?
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
Q4. What is your terms of payment?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. Can it really meet the environmental requirements?
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
Q6. What if the equipment is broken?
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
