| Place of Origin: | Hefei,Anhui |
| Brand Name: | Liquid Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 5 10 25 50 100 150 200 250 300 400 500 Micron Liquid Filter Bag | Efficiency: | 99.9% High Efficiency Filter Bags |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 5 10 25 50 100 150 200 250 300 400 500 Micron Dust Filter |
| Type: | 5 10 25 50 100 150 200 250 300 400 500 Micron P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 450gsm Liquid Filter Bag,25 mic Liquid Filter Bag,550gsm felt dust collector bags |
||

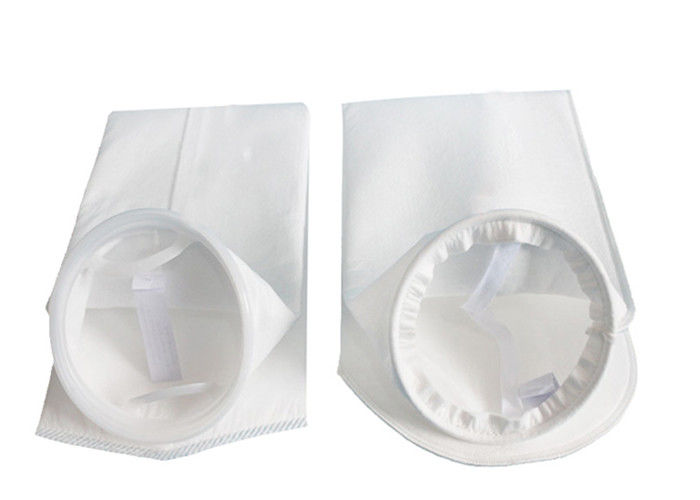

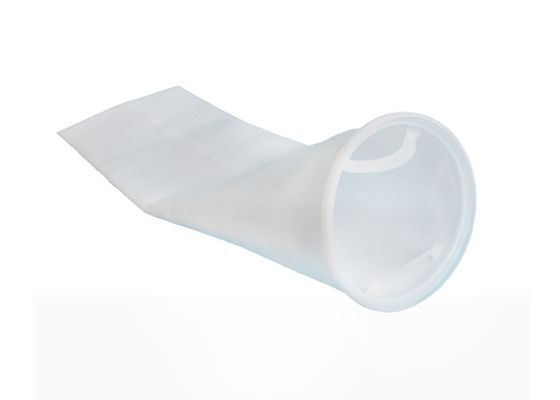

Needle punched non-woven polyester felt polyester 25 micron liquid filter bag
Quick Detail:
1. High quailty
2. Competitive price
3. ISO certification
4. Strict quality control
Specification of liquid filter bag
| Fiber | Abrasion resistance | Weakly acid | Strongly acid | Weakly alkali | Strongly alkali | Solvent | Temperature (°C) |
| PE | Very good | Very good | Good | Good | Poor | Good | 130-150 |
| Nylon | Excellent | General | Poor | Excellent | Excellent | Good | 135-149 |
| PP | very good | Excellent | Excellent | Excellent | Excellent | General | 90-110 |
Filter bags Specifications |
|
| Filter Media | nylon Felt, polyester Felt, polypropylene |
| Maximum Operating Temperature | Polypropylene: 200-220° F (93-104° C) Polyester: 275-325° F (135-162° C) Nylon: 275-300° F (135-149° C) |
| Micron Rating | Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200 Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200 Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600 |
| Size | 1: 7" x 16" (17.78 cm x 40.64 cm) 2: 7" x 32" (17.78 cm x 81.28 cm) 3: 4" x 8.25" (10.16 cm x 20.96 cm) 4: 4" x 14" (10.16 cm x 35.56 cm) 5: 6 " x 22" (15.24 cm x 55.88 cm) |
| Collar Ring | Polypropylene ring Polyester ring galvanized steel ring Stainless steel ring Rope |
| Remarks | The length of filter bags can be customized. If your filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag. |
| Please send us you inquiry specification detail by email for quote, thanks. | |
Product Show
Advantages of Liquid Filter Bag
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our good performance filter bags are provided in both plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures' housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Application fields:
1 ) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2 ) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3 ) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4 ) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5 ) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6 ) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.
