| Place of Origin: | Hefei,Anhui |
| Brand Name: | Liquid Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Liquid Filter Bag | Efficiency: | 99.9% High Efficiency Filter Bags |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 200um Baghouse Filter Bags,550g/M2 Baghouse Filter Bags,550gsm non woven filter bags |
||
Liquid Filter Bags
Filter Bags are mostly used for various types of liquid/process filtration. They are made from a variety of Medias like Polypropylene, Polyester, Nylon and Nomex. This filter bags are used to remove solid particles from liquid where the proportion of solid is high or the fluid is very viscous. These filter bags are available in wide range from 1 - 200 micron.
Features
- Can handle higher flow rate
- High dirt holding capacity
- Low Pressure drop
- Easy Maintenance
Technical Specifications
Standard sizes
|
- 4" x 10" Long |
|
- 4" x 17" Long |
|
- 4" x 20" Long |
|
- 7" x 17" Long |
|
- 7" x 32" Long |
|
- 6"x 20" Long |
Specification of liquid filter bag
| Fiber | Abrasion resistance | Weakly acid | Strongly acid | Weakly alkali | Strongly alkali | Solvent | Temperature (°C) |
| PE | Very good | Very good | Good | Good | Poor | Good | 130-150 |
| Nylon | Excellent | General | Poor | Excellent | Excellent | Good | 135-149 |
| PP | very good | Excellent | Excellent | Excellent | Excellent | General | 90-110 |
Filter bags Specifications |
|
| Filter Media | nylon Felt, polyester Felt, polypropylene |
| Maximum Operating Temperature | Polypropylene: 200-220° F (93-104° C) Polyester: 275-325° F (135-162° C) Nylon: 275-300° F (135-149° C) |
| Micron Rating | Polypropylene: 0.5, 1, 3, 5, 10, 25, 50, 100, 200 Polyester: 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 200 Nylon: 25, 50, 100, 150, 200, 300, 400, 500, 600 |
| Size | 1: 7" x 16" (17.78 cm x 40.64 cm) 2: 7" x 32" (17.78 cm x 81.28 cm) 3: 4" x 8.25" (10.16 cm x 20.96 cm) 4: 4" x 14" (10.16 cm x 35.56 cm) 5: 6 " x 22" (15.24 cm x 55.88 cm) |
| Collar Ring | Polypropylene ring Polyester ring galvanized steel ring Stainless steel ring Rope |
| Remarks | The length of filter bags can be customized. If your filter bag is different from our filter bag size, please send us your drawing size and the material which you need, we also produce the nonstandard filter bag. |
| Please send us you inquiry specification detail by email for quote, thanks. | |

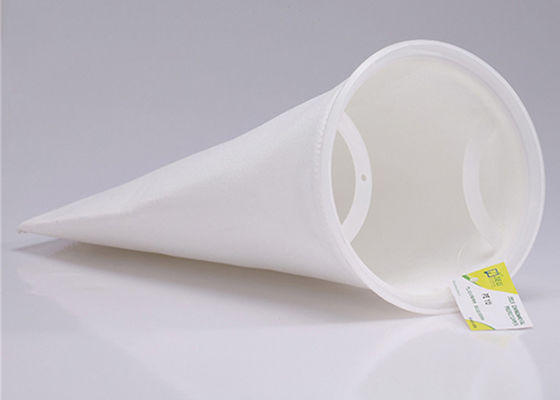

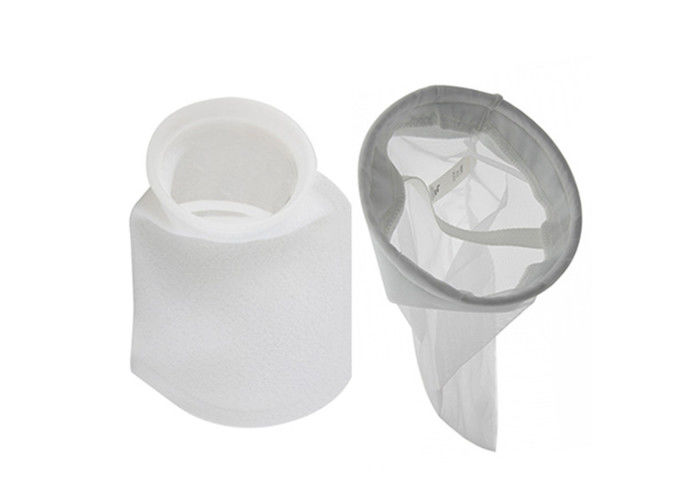

Product Show
Advantages of Liquid Filter Bag
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our good performance filter bags are provided in both plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures' housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.
Filtration Rating: - 1, 2, 5, 10,25,50,100,150,200 micron
Filter Media: Polypropylene, Polyester,Nylon,Nomex
TYPES OF FILTER BAGS
- Polypropylene Filter Bags
- Absolute Filter Bags
- Carbon Bags
- Water Absorbent Bags
- Oil Adsorbing Filter Bags
Application
- Viscous applications like honey,wax,etc.
- Paints
- Inks
- Oils
- Cooling Water
- Fats
- Food Ingredients
The above-mentioned data is the standard, it can customize according to customer's requirements.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
