| Place of Origin: | Hefei,Anhui |
| Brand Name: | Liquid Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Liquid Filter Bag | Efficiency: | 99.9% High Efficiency Filter Bags |
|---|---|---|---|
| Applicable: | Manufacturing Plant,Energy & Mining,Construction Works ,Food & Beverage Factory | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 28mm Liquid Filter Bag,0.2 um Liquid Filter Bag,550gsm nylon filter bag |
||
Introduction:
The PP pleated filter cartridge uses pleated polypropylene fiber membrane as filtration media.
The PP Polypropylene cartridge is an advanced fixed intensive filter and available in a wide range of retention rating from 0.1μm to 60μm. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration capability attracted many customers.
The filtration media of nylon micrpore filter cartridge is constructed of nylon 6 or nylon 66 media and nonwoven support materials. The adaptors are thermally welded without any glue or adhesive to prevent any possibility of pollution. The filters are produced in clean room and 100% integrity tested and flushed with ultrapure water.
Hydrophobic PTFE series pleated filter cartridge is constructed of hydrophobic PTFE membrane which has excellent chemical compatibility and corrosion resistance. This filter cartridge is suitable for the filtration to liquid and gas with strongly aggressive and oxidative.
Hydrophilic PTFE series pleated filter cartridge is contructed of hydrophilic PTFE membrane which has excellent chemical compatibility and corrosion resistance. The membrane is hydrophilic which can filter liquid directly without pre-wetting to save the operation time.

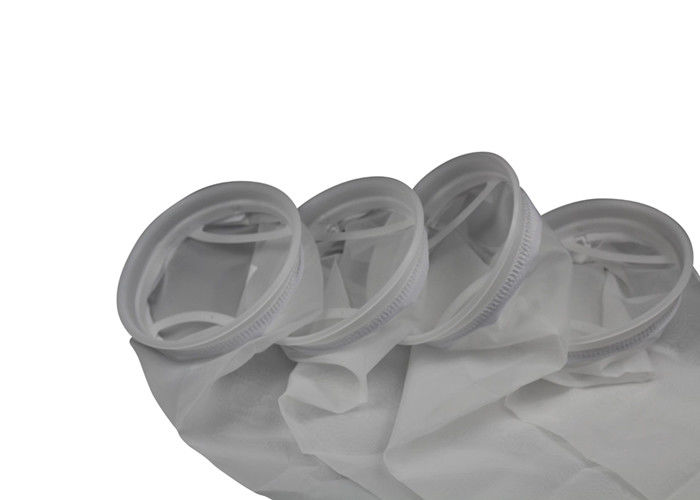

Advantages of Liquid Filter Bag
1. Inside-outside flow configuration : It can capture contaminants effectively on the inside.
2. Plastic or steel seal : It is necessary and helpful for prevention of fluid bypass and subsequent contamination of the downstream fluid. All of our good performance filter bags are provided in both plastic and steel ring sealing collar versions that will be fit for most filter bag manufactures' housings.
3. Welded seams and thermally treated exterior surfaces It is efficient for control of fiber migration.
4. Our material has the special ability to handle viscous fluids.
Specifications:
| Filter Media Option | PP cartridge | PTFE cartridge | Nylon 6 cartridge | PES cartridge |
| Length | 5", 10", 20", 30", 40" | 5", 10", 20", 30", 40" | 5", 10", 20", 30", 40" | 5", 10", 20", 30", 40" |
| Micron Rate | 0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron | 0.2, 0.45 micron | 0.2, 0.45, 0.65, 1 micron | 0.1, 0.2, 0.45, 0.65 micron |
| End Cap | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
| Inner Diameter | 28mm | 28mm | 28mm | 28mm |
| Outer Diameter | 68mm (can be customized) | 68mm (can be customized) | 68mm (can be customized) | 68mm (can be customized) |
| Gasket/O ring material | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon | Silicon/EPDM/NBR/Viton/Teflon |
| Effective filtration area | 0.4-0.7m² | ≥0.72m² | ≥0.6m² | ≥5m² |
| Max.working pressure difference | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC | 0.42Mpa at 25ºC |
| Max.back pressure | 0.28Mpa at 60ºC | 0.35Mpa at 60ºC | 0.35Mpa at 25ºC | 0.21Mpa at 25ºC |
| Max. working temperature | 88ºC at 0.28Mpa, 60ºC at 0.42Mpa | 142ºC at 0.276Mpa | 49ºC at 0.21Mpa | 140ºC at 0.28Mpa |
| Sterilizing temperature | 121ºC, 30mins | 121ºC, 30mins | 121ºC, 30mins | 121ºC, 30mins |
Product Show
Applications:
1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
