| Place of Origin: | Hefei,Anhui |
| Brand Name: | P84 Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | P84 Filter Bag | Material: | P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 650g/M2 P84 Filter Bag,P84 Filter Bag,550gsm felt dust collector bags |
||

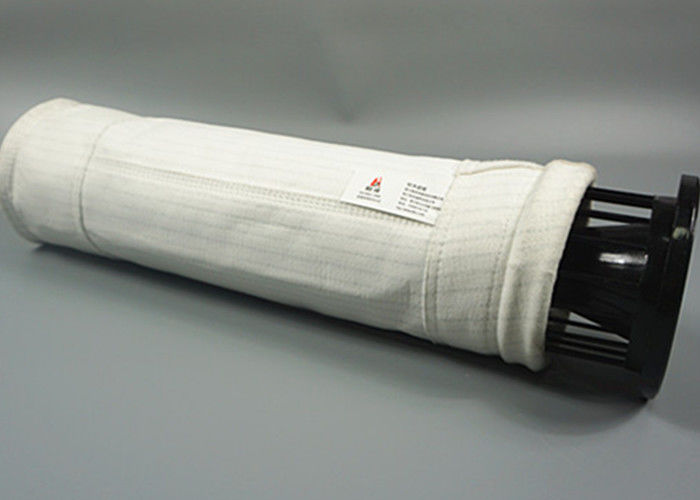

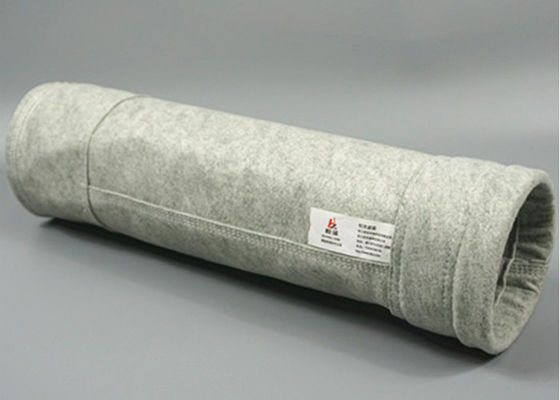

P-84 dust filter bags
Cement kiln dust filter, P84 filter bag, bag filter applied P84 filter bag, P84 high temperature resistant filter bag made of polyimide fiber by needling craft. It has remarkable high temperature endurance and acid, alkali resistance. It possesses advantages of anti-chemistry property. P84 filter bag is also called Polyimide filters which are efficient in collecting micro grain and little differential pressure. It can be continuously used in asphalt factory, cement, waste incinerator, fluid boiler, and coal-burning boiler, etc.
The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag, PTFE filter bags, Acrylic filter bags, Polyester filter bags, dust filter bag, bag filters, dust collector bags.
Filter bags, dust collector bag, dust filter bag, dust bags, filter socks, they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.
Applications:
It can be continuously used in smoke and gas filtration in asphalt factory, cement kiln , waste incinerator, fluid boiler, and coal-burning boiler, etc.
Specifications:
| Series: | P84 550 GSM |
| Fibre: | 100% P84)staple fiber |
| Scrim: | 100% P84 scrim |
| Weight: | 450 - 650g/m2 (customized) |
| Finishing: | Heat setting, single side singeing, calendering (double sides finishing would be available upon request), PTFE membrane |
| Roll length and width: | Can be customized |
| Breaking strength: | (Longitudinal)(N): >800 |
| (Transverse)(N): >800 | |
| Air permeability: | >200 |
| Packaging: | In rolls |
| Applications: | Asphalt mixing plant, cement plant, smelting, waste incineration, etc. |
| Delivery Time: | 7-45 days |
| Payment Terms: |
Product Feature
1.Hydrolysis resistance
2.Good chemical resistance
3.Corrosion resistance
4.High efficiency filtration
5.Can be customized
Specification:
1. Air filter cartridge, with Nylon, PE, Teflon,Nomex material;
2. Good resistance for the chemical corrosion: Anti acid and alkali, hardly corrosion.
3. Excellent high temperature resistance: continuous operating temperature can reach 204
degree, temperature peak up to 240 degree.
4. Fire retardant property: Carbonization up to 400 degree, no spontaneous or natural
combustion.
5. High stability of dimension :Only 1 percent flexibility at the temperature of 230, with
excellent high temperature stability.
P84 dust collector filter bag for flour mill air filter use
The filter bag is a key part of the operation of the bag filter. Usually the cylindrical filter bag is suspended vertically in the dust
collector. The fabric and design of the filter bag should be as efficient as possible for efficient filtration, easy dust removal and
durability. In pulsed and air box type pulse dust collectors, dust is attached to the outer surface of the filter bag. When the dust-
laden gas passes through the dust collector, the dust is trapped on the outer surface of the filter bag, and the clean gas passes
through the filter material and enters the inside of the filter bag. The cage inside the filter bag is used to support the filter bag to
prevent the filter bag from collapsing, and it helps to remove and redistribute the dust cake.
Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature.
Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost
and working condition of bag-house.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
