| Place of Origin: | Hefei,Anhui |
| Brand Name: | P84 Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | P84 Filter Bag | Material: | P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 90 Micron P84 Filter Bag,2mm P84 Filter Bag,500g/M2 pps filter bag |
||
Description:
P-84 dust filter bags
Cement kiln dust filter , P84 filter bag, bag filter applied P84 filter bag ,P84 high temperature resistant filter bag made of polyimide fiber by needling craft. It has remarkable high temperature endurance and acid, alkali resistance. It possesses advantages of anti-chemistry property. P84 filter bag is also called Polyimide filters which is efficient in collecting micro grain and little differential pressure. It can be continuously used in asphalt factory, cement, waste incinerator, fluid boiler, and coal-burning boiler etc
The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.
Filter bags, dust collector bag ,dust filter bag , dust bags, filter socks, - they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.
Specification:
|
Product Name
|
P84 Filter Bag
|
||
|
Size
|
D120mmxL2000mm
Or As Customized
|
||
|
Weight(g/m2)
|
500
|
||
|
Thickness(mm)
|
2.7
|
||
|
Air permiability(m3/m2/min)
|
>17
|
||
|
Tensile strength (N/5×20cm)
|
warp
|
>700
|
|
|
weft
|
>1000
|
||
|
Tensile enlongation (%)
|
warp
|
40%
|
|
|
weft
|
40%
|
||
|
Broken strength (Mpa/min)
|
≤20
|
||
|
Continuous working temperature (degree C)
|
240
|
||
|
Short time Working temperature (degree C)
|
260
|
||
|
Anti-acid
|
Good
|
||
|
Anti-alkali
|
Medial
|
||
|
Anti-abrasion
|
Good
|
||
|
The stability of water solution
|
Good
|
||
|
Finishing treatment
|
Heatset and Singed One Side
|
||

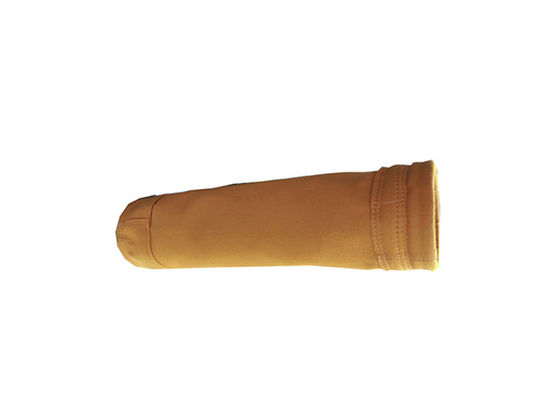

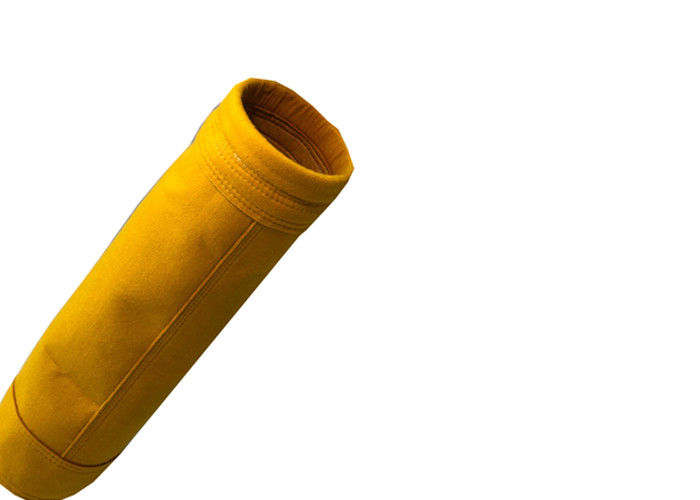

Product Show
Product Features:
weight: 500-550g/m²
thickness: 1.8-2.0mm
working temperature: 260ºC
Acidproof & alkaliproof, poor antioxidant ability
good chemical resistance
High efficiency to release the cake
high filtration efficiency
good filtration rating
good air-permeability
three-dimensional filter layer, porosity
Technical Specifications:
All of our filter bags are available in many different weights, treatments and coatings to suit the industry application. Standard and specific media materials are:
Non Woven Needle Felt Polyester
Non Woven Needle Felt Polypropylene
Metamax (Aramide / Nomex /Conex )
Glass fiber Needle Felt
Homopolymer Acrylic
PTFE
P84
PPS
FNS Series Felt
Glass/PTFE composite Felt
Available Coating & Treatment :
Acrylic Coating
Antistatic Treatment With Carbon Fiber
Antistatic Treatment With Copper Wire
Antistatic Treatment With Stainless Steel Fiber
Water & Oil Repellent
PTFE impregnation
PTFE Coating
Media with PTFE laminated
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
