| Place of Origin: | Hefei,Anhui |
| Brand Name: | P84 Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | P84 Filter Bag | Material: | P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 220 Micron Dust Collector Filter Bags,1.8mm Dust Collector Filter Bags,P84 jet dust collector bags |
||
Description:
Dust bag by temperature material points:
1. Ambient bag: The room temperature bag is mainly made of polyester, polypropylene, acrylic and other fibers through non-woven and textile technology. It has good air permeability, smooth surface, good dimensional stability, easy to peel off dust and other excellent performance. It is mainly used in dust removal and normal temperature flue gas treatment in industries where dust pollution occurs in general industrial enterprises.
2. Medium-temperature cloth bag: With the increasing emphasis on environmental protection by the country, especially the rapid development of bag-type dust-removing technology industry in recent years, China has begun to use imported synthetic fiber to develop conditions that can adapt to more severe working conditions. Lifetime high performance filter material. At present, the common medium-temperature filter material is aramid fiber, PPS series fiber through the immersion, waterproof, anti-oil, anti-corrosion process, so as to achieve the desired effect;
3. High-temperature cloth bags: High-temperature cloth bags are mainly made of high-strength fibers such as P84, expanded glass fiber and ultra-fine glass fiber, which are processed through spinning and non-woven processes. They are characterized by good thermal stability, high filtration efficiency and long service life. Mainly used in dust collectors under various high-temperature flue gas conditions.
Specification:
| Fiber Composition | Polyester |
Polyester with PTFE membrane |
PTFE |
FMS |
P84 |
PPS |
Nomex |
| Weight (g/m2) | 500 | 500 | 750-800 | 800 | 500 | 500-550 | 450-600 |
| Thickness (mm) | 1.7-2.0 | 1.7-2.0 | 1.2-1.6 | 1.8-3 | 2.1 | 1.8-2.0 | 1.9-2.4 |
| Running Temperature (°C) | 130 | 130 | 240 | 200 | 180 | 160 | 200 |
| Peak Temperature (°C) | 150 | 150 | 260 | 280 | 260 | 190 | 240 |
| Air Permeability (M3/M2.S. 200Pa) |
8-12 | 8-12 | 5-8 | 15 | 14 | 15 | 8-12 |
| Mechanical Finish | Singeing, calendaring, heat-set | Singeing | |||||
| Chemical Finish | membrane | Water and oil repellent |
PTFE impregnated peritoneal | ||||
| Warp Of Stretch Strength | 800 | 1000 | 600 | 1400 | 900 | 900 | 900 |
| Welf Of Stretch Strength | 1200 | 1300 | 800 | 1600 | 1200 | 1200 | 1200 |
| Resistance to Acid | Medial | Fair | Excellent | Excellent | Excellen | Excellent | Fair |
| Resistance to Oxidation | Excellent | Good | Excellent | Excellent | Excellent | Poor | Fair |
| Resistance to Alkali | Medial | Poor | Excellent | Excellent | Excellent | Excellent | Good |
| Resistance to Hydrolysis | Medial | Poor | Excellent | Fair | Excellent | Excellent | Fair |
| Application | 1) The fume and smoke treatment and particle removing system in metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power plant 3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing |
||||||
| Size | Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192'' | ||||||
| Filter Bag Top Construction | 1) Side Load: raw edge top (3" longer than split collar cage length) 2) Top Load: snap band/ring ; double beaded |
||||||
| Bottom Construction | 1) Single-ply felted disc bottom 2) 3" bottom; double-ply wearguard 3) 5" wear cuff with 2" overhang below bag disc bottomBottom Construction |
||||||

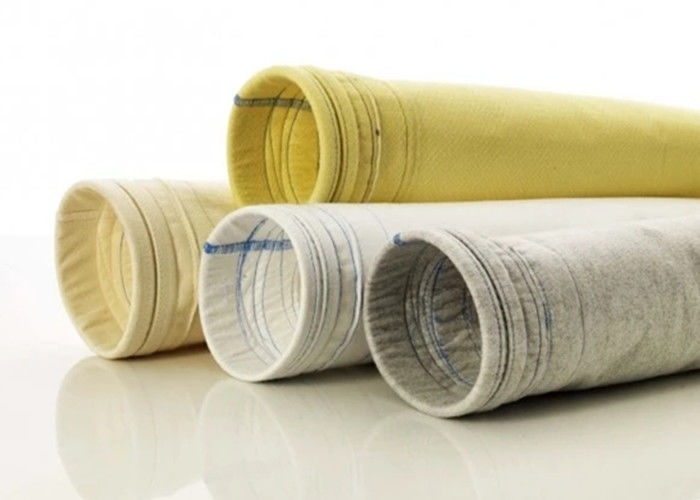

Product Show
Temparature feature:
Working temperature is 260ºC,and the instantaneous working temperature is 280 ºC.
Physical feature:
1. weight:550g±5%(g/m2)
2. thickness: 1.8±0.1mmmm
3. Good permeability
4. special treatment on material surface.
Chemical feature:
Acid-fastaness,oxidation-fastness ,hydrolysis-fastness, ,good wear resistance.alkali-fastness is just ok.
Application:
The flue gas purification,cement kiln, drying, burning, smelting,various industrial kilns, coal fired boilers and waste incineration, and widely used in the process of high emission concentration.
P84 dust collector filter bag for flour mill air filter use
The filter bag is a key part of the operation of the bag filter. Usually the cylindrical filter bag is suspended vertically in the dust
collector. The fabric and design of the filter bag should be as efficient as possible for efficient filtration, easy dust removal and
durability. In pulsed and air box type pulse dust collectors, dust is attached to the outer surface of the filter bag. When the dust-
laden gas passes through the dust collector, the dust is trapped on the outer surface of the filter bag, and the clean gas passes

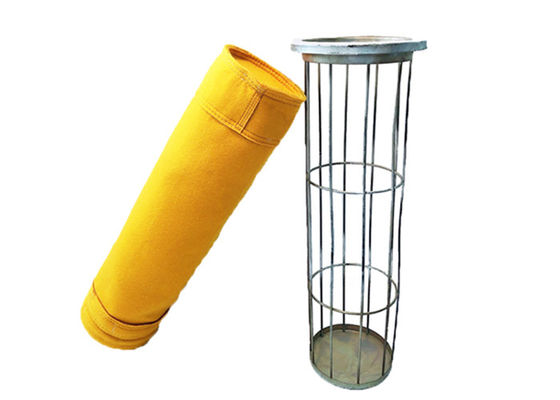

through the filter material and enters the inside of the filter bag. The cage inside the filter bag is used to support the filter bag to
prevent the filter bag from collapsing, and it helps to remove and redistribute the dust cake.
Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature.
Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost
and working condition of bag-house.
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
