| Place of Origin: | Hefei,Anhui |
| Brand Name: | P84 Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | P84 Filter Bag | Material: | P84(Polyimide) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed Boiler And Coal Fired Boiler | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | P84(Polyimide)with PTFE Membrane Filter Bag | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | 1.8mm Dust Extraction Filter Bags,550g/M2 Dust Extraction Filter Bags,550gsm industrial dust collector bags |
||

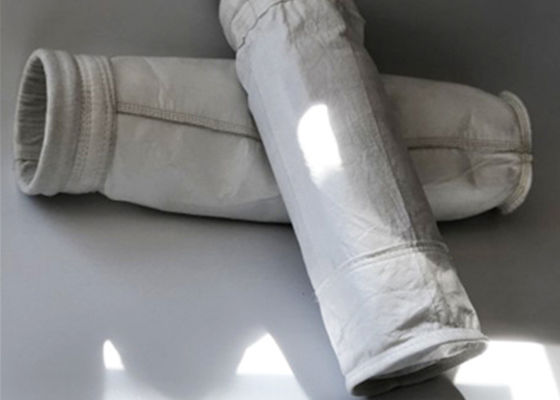

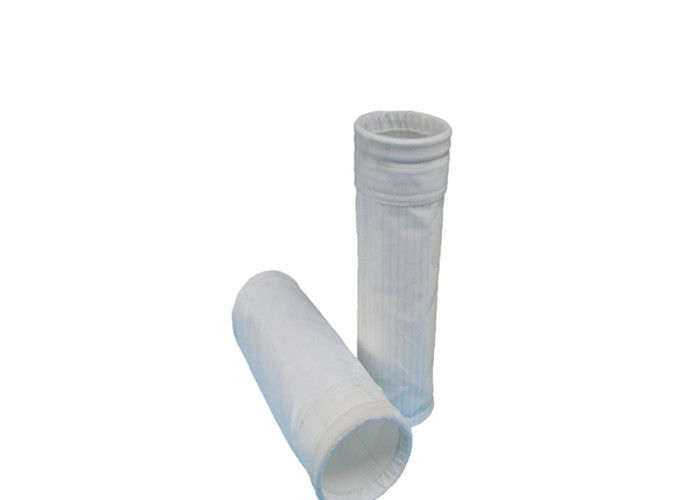

P84 filter bags are applied in pulse jet cleaning dust collectors where chemical resistance and durability are reruired.
100%p84 filber high temperature felt.
P84 scrim reinforced felt which is surface treated can withstand various conditions.
Common treatments include singed, canlender and ePTFE membrane.
It has excellent abrasion resistance and good acid resistance .Due to the irregular shape of the filter ,greater surface
area ,the efficiency can reach 99.99%.
Specification:
|
Item
|
Unit
|
Parameter
|
|
Material
|
Face:Polyimide/P84
|
Scrim:Polyimide/P84
|
|
Grammas Per Square Meter
|
550g±5%g
|
|
|
Air Permeability (200Pa)
|
20-50L/dm3.min
|
|
|
Thickness
|
1.8±0.1mm
|
|
|
Temperature Resistance
|
Continous
|
260
|
|
Peaks
|
280
|
|
|
Minimum Breaking Strength
|
N/50*200mm
|
Warp:≥700
|
|
Weft:≥900
|
||
|
Elongation at Break
|
%
|
Warp:≤25
|
|
Weft:≤35
|
||
|
Surface Treatment
|
Singeing Calendering Heat-set PTFE Membrane
|
|
|
Using Scope
|
Cement Drying ,Slag Powder
|
|
Product definition: Needle felt is ideal filter material for dust filtration, according to different materials, it includes Nomex needle felt, fiberglass needle felt, PPS needle felt, P84 needle felt, FMS needle felt, 100% PTFE needle felt.
Main material: imported P84 fiber
Product Show
Product Features:
weight: 500-550g/m²
thickness: 1.8-2.0mm
working temperature: 260ºC
Acidproof & alkaliproof, poor antioxidant ability
good chemical resistance
High efficiency to release the cake
high filtration efficiency
good filtration rating
good air-permeability
three-dimensional filter layer, porosity
Technical Specifications:
All of our filter bags are available in many different weights, treatments and coatings to suit the industry application. Standard and specific media materials are:
Non Woven Needle Felt Polyester
Non Woven Needle Felt Polypropylene
Metamax (Aramide / Nomex /Conex )
Glass fiber Needle Felt
Homopolymer Acrylic
PTFE
P84
PPS
FNS Series Felt
Glass/PTFE composite Felt
Available Coating & Treatment :
Acrylic Coating
Antistatic Treatment With Carbon Fiber
Antistatic Treatment With Copper Wire
Antistatic Treatment With Stainless Steel Fiber
Water & Oil Repellent
PTFE impregnation
PTFE Coating
Media with PTFE laminated
Shipping way
|
SHIPPING WAY AND TIME (Normally arrive port time in working days,DON'T INCLUDE CUTOM CLEARANCE TIME) |
|||
| Destination | Express/Courier | SHIP BY SEA | SHIP BY AIR |
| DHL/FEDEX/UPS/TNT | |||
| North America | 3~7 days | 15~24 days | 5~7 days |
| South America | 3~7 days | 15~25 days | 5~7 days |
| European Countries | 3~7 days | 20~30 days | 5~7 days |
| Africa Countries | 3~7 days | 40~50 days | 5~7 days |
| The Middle East | 3~7 days | 15~25 days | 5~7 days |
| Australia | 3~7 days | 10~15 days | 5~7 days |
Why Choose Us
1- What is your Delivery Time?
LCL order/Sample order:10days.
Full container order:14days.
2- What is your Guarantee Time?
5 years.
Provide you with some extra accessories and vacuum tubes, they are free for you.
3- Can you accept OEM ?
YES
4- What is your Payment Term?
We accept T/T or L/C at sight, Western Union.
5- What is your MOQ?
1 sets
6- What is your Packing?
LCL order/Sample order in wood cartoon
Full container order in high quality export carton
7- What is your FOB Port?
We accept FOB Shanghai, Ningbo etc.
8- What is your Monthly Production Capacity?
6000 sets
9- What is your Shipping Term?
By Sea/Air/Rail
