| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Polyester Oil Resistance Anti-Static Filter Bag For Dust Collector Equipment | Cartridge Installation: | Top Mounted |
|---|---|---|---|
| Filtration Precision:: | ≤30mg/nm3 | Feature: | Aste Incinerator,electric Station Boiler,industry Boiler And So On |
| Weight: | 500gsm, 550gsm And 700gsm | Temperature Resistance: | Continue: 190, Instant: 210 |
| Type: | Pocket Filter, Aramid Filter | Diameter & Length: | No Limited |
| Air Permeability: | 120 L/m2/S | HS Code: | 5911900090 |
| High Light: | Polyester Anti Static Filter Bag,500gsm Oil Resistant Anti Static Filter Bag |
||
1.The material of the polyeser filter bag:
(1) 100% POLYESTER
(2) ANTI-STATIC POLYESTER
(3) 100% POLYPROPYLENE
(4) HOMOPOLYMER ACRYLIC
(5) NOMEX (ARAMID)
(6) RYTON (PPS)
(7) P-84 (POLYIMIDE)
(8) GLASSFIBER
Specifications
| Fiber Composition | Polyester |
Polyester with PTFE membrane |
PTFE |
FMS |
P84 |
PPS |
Nomex |
| Weight (g/m2) | 500 | 500 | 750-800 | 800 | 500 | 500-550 | 450-600 |
| Thickness (mm) | 1.7-2.0 | 1.7-2.0 | 1.2-1.6 | 1.8-3 | 2.1 | 1.8-2.0 | 1.9-2.4 |
| Running Temperature (°C) | 130 | 130 | 240 | 200 | 180 | 160 | 200 |
| Peak Temperature (°C) | 150 | 150 | 260 | 280 | 260 | 190 | 240 |
| Air Permeability (M3/M2.S. 200Pa) |
8-12 | 8-12 | 5-8 | 15 | 14 | 15 | 8-12 |
| Mechanical Finish | Singeing, calendaring, heat-set | Singeing | |||||
| Chemical Finish | membrane | Water and oil repellent |
PTFE impregnated peritoneal | ||||
| Warp Of Stretch Strength | 800 | 1000 | 600 | 1400 | 900 | 900 | 900 |
| Welf Of Stretch Strength | 1200 | 1300 | 800 | 1600 | 1200 | 1200 | 1200 |
| Resistance to Acid | Medial | Fair | Excellent | Excellent | Excellen | Excellent | Fair |
| Resistance to Oxidation | Excellent | Good | Excellent | Excellent | Excellent | Poor | Fair |
| Resistance to Alkali | Medial | Poor | Excellent | Excellent | Excellent | Excellent | Good |
| Resistance to Hydrolysis | Medial | Poor | Excellent | Fair | Excellent | Excellent | Fair |
| Application | 1) The fume and smoke treatment and particle removing system in metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power plant 3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing |
||||||
| Size | Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192'' | ||||||
| Filter Bag Top Construction | 1) Side Load: raw edge top (3" longer than split collar cage length) 2) Top Load: snap band/ring ; double beaded |
||||||
| Bottom Construction |
1) Single-ply felted disc bottom |
||||||
Features
Dust bag by temperature material points:
1. Ambient bag: The room temperature bag is mainly made of polyester, polypropylene, acrylic and other fibers through non-woven and textile technology. It has good air permeability, smooth surface, good dimensional stability, easy to peel off dust and other excellent performance. It is mainly used in dust removal and normal temperature flue gas treatment in industries where dust pollution occurs in general industrial enterprises.
2. Medium-temperature cloth bag: With the increasing emphasis on environmental protection by the country, especially the rapid development of bag-type dust-removing technology industry in recent years, China has begun to use imported synthetic fiber to develop conditions that can adapt to more severe working conditions. Lifetime high performance filter material. At present, the common medium-temperature filter material is aramid fiber, PPS series fiber through the immersion, waterproof, anti-oil, anti-corrosion process, so as to achieve the desired effect;
3. High-temperature cloth bags: High-temperature cloth bags are mainly made of high-strength fibers such as P84, expanded glass fiber and ultra-fine glass fiber, which are processed through spinning and non-woven processes. They are characterized by good thermal stability, high filtration efficiency and long service life. Mainly used in dust collectors under various high-temperature flue gas conditions.

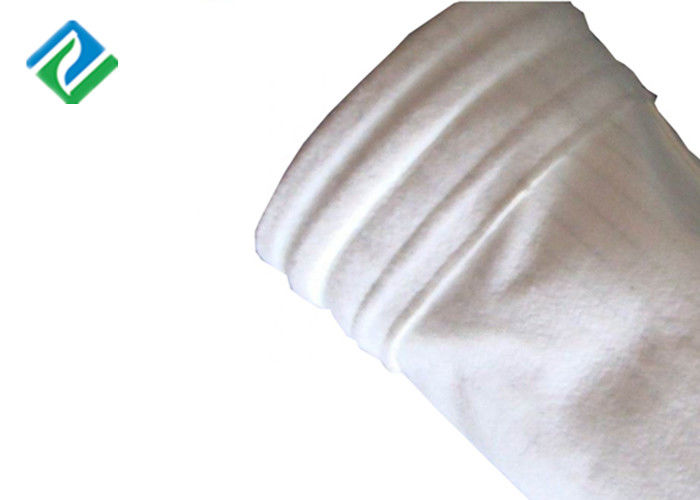

Product Picture
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
