| Place of Origin: | Made in China |
| Brand Name: | Polyester Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Aramid Fabric+glassfiber Dust Filter Bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 100% Pure Polyester Fibre Filter Bag | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 450GSM~550GSM | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 0.5 Micron Polyester Filter Bags,550gsm Polyester Filter Bags,1.6mm pocket filter bag |
||
Description:
Material: Polyester Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. As your requirements.
Length: 1000mm~8000mm. As your requirements.
During cement production process, there is a lot of dust and gas emissions outwardly, there are many different filter bags can be chosen for meet varied working condition.
Capacity: 2000 pcs per day
Main Material: Fiberglass, Nomex, P84, PTFE needle felt
Finish Treatment: Singeing, Calendering, Heat Setting, Anti-static, Water&Oil Repellent, PTFE Membrane, PTFE Impregnation and so on special treatment can be chosen.
Customization Accepted.
Specification:
| Fibre | Polyester |
| Scrim | Polyester |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.0 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, mixing lead static fibre or stripe lead static fibre Treatment. |
| Air permeability (L/m2/S): | 120 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1100 |
| Tensile elongation (%): | Warp:<35 Weft:<55 |
| Temperature (ºC): | Continue: 120 Instant: 150 |
| Surface Resistance(Ω.cm) | 103~108 |
| Anti-acid | Middle |
| Anti-alkali | Middle |
| Anti-abrasion | Excellent |
| Hydrolytic stability | Middle |
| Application | Mainly used in food and beverage industry,pharmaceutical industry,non-ferrous metallurgy,chemcial plant,building section and mining industry,power plant etc. |
Typical Operating Conditions:
| Continue Temperature(°C/℉): | 200/392-250/482 |
| Peak Temperature: : | Orientation to the maximum peak temperature of the fibre polymers used |
| Dust: | Cement, clinker, coal, gypsum, lime, raw meal |
| Dust Properties: | Agglomerating, abrasive, explosive |
| Dust Source: | Blast furnace, chlorine bypass, clinker cooler, coal grinding, mill, rotary kiln, spray dryer, silo, transfer stations |
| Harmful Gases: | H2O, NOx, SOx, HCl |
| Cleaning Process: | Pulse jet, reverse air |
| Fuels: | Natural gas, coal, oil, secondary fuels |

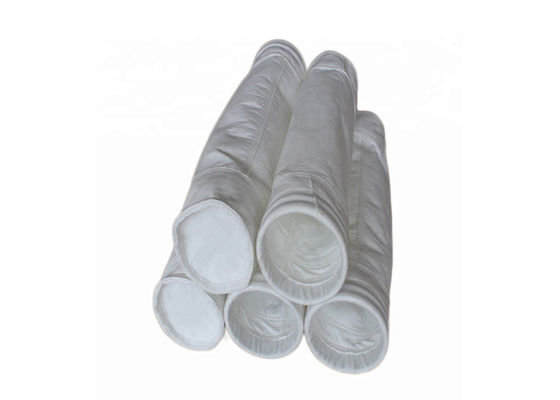

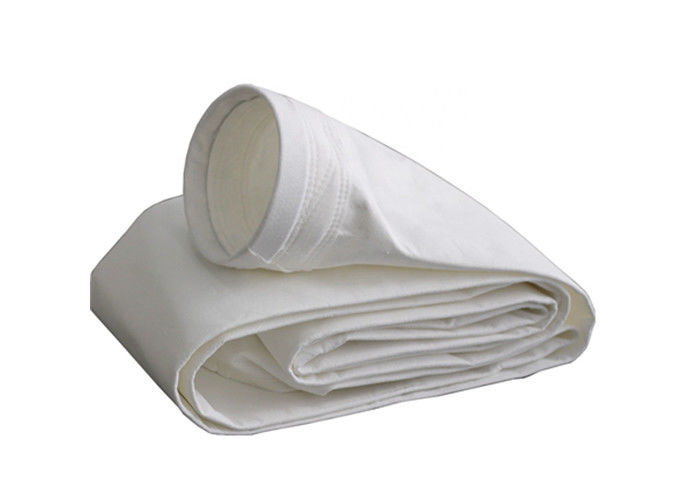

Product Picture
Product Feature:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition.
Application:
1. Food and Beverage Industry.
2. Pharmaceutical Industry.
3. Non-ferrous Metallurgy.
4. Chemcial Plant.
5. Building Section and Mining Industry.
6. Cement Plant.
7. Power Plant.
8. Steel Plant.
9. Mining Industry.
10. Grain Processing.
Making method:
Our bags are sewn with 3 - needle chain stitch to ensure seam integrity. Top constructions consist of snap band, flange top, ring top, soft cuffs or raw edge. Bottom removal bags are constructed with a raw top or soft cuff. Top and bottom removal bag bottoms have disc bottoms that are sewn using an overlock (surge) stitch or lock stitch. A wear strip or custom skirts is attached to the bottom portion of the bag to prevent premature wear from bag-to-bag and bag-to-cage abrasion.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
