| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | PPS Filter Bag For Steel Industry PPS Polyphenylene Sulfide Filter Bag | Fabric: | PPS Fiber (polyphenylene Sulfide) |
|---|---|---|---|
| Filtration Precision:: | ≤30mg/nm3 | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Steel Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | PPS Composition Dust Collector Filter Bag,Metallurgy Industry Dust Collector Filter Bag |
||
PPS (polyphenylene sulfide) Filter Bag
Specification of PPS Filter Bag:
Fabric: PPS fiber (polyphenylene sulfide)
Temperature resistance: up to 200ºC (392ºF)
Area weight (g/m2): 350~700
Thickness (mm): 1.2~2.4
Filtration precision: ≤30mg/nm3
Working lifetime: 8000 hours and more
Diameter & Length: No limited
MOQ: 50pcs. Support retail, and freight is on your own account.
Features of PPS Filter Bag:
The acid and alkali resistance is Excellent. Meanwhile, PPS fiber does not burn, neither does it support burning. The temperature resistance is up to 200ºC (392ºF).
The resistance to oxidation is poor. So the working environment requires the oxygen content less than 14%(Vol.), and the oxynitride content is less than 600mg/Nm3. The higher oxygen contents the lower working temperature.
Physical properties:
| Air permeability(L/m2.s) @200pa | Tensile strength(N/5cm) | Temperature(ºC) | ||
| warp | weft | continue | instant | |
| 150~300 | 900 | 1100 | 190 | 200 |
Chemical properties:
| Acid Resistance | Alkali Resistance | Hydrolytic Resistance | Oxidation Resistance | Abrasion resistance |
| Excellent | Excellent | Excellent | Poor | Good |
Applications :
• Coal - Fired Boilers bag houses
• Municipal Solid Waste Boilers and Waste incinerator baghouse filter
• Calciners / Catalysts
• Thermal power plant
• Waste to energy
• Iron and non ferrous Metal Industry.

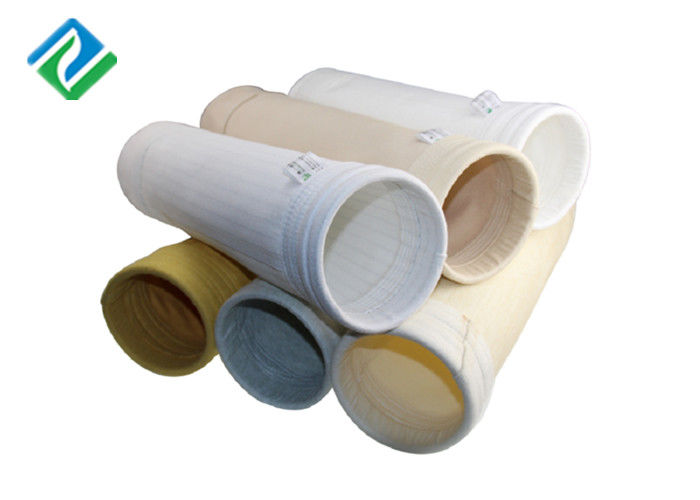

Product Picture
Nomex filter bag:
1. Temperature (°C): Continue: 204, Instant: 240
2. Application : pitch mix gas,blast furnace gas in steel factory, gas, tail gas of white char,kiln applications,electric cooker high temperature gas,etc.
PPS Ryton filter bag:
1. Temperature (°C): Continue: 190, Instant: 210
2. Application:waste incinerator,electric station boiler,industry boiler and so on.
P84 / PI filter bag ( Polyimide ),
1. Temperature (°C): Continue: 260, Instant: 300
4. Application:cement kiln,waste incinerator,etc
Fiberglass filter bag:
1.Temperature (°C): Continue: 240, Instant: 260
2.Features:low price compared with other high temperature fibers,and stable size,low
shrinkage rate,high intensity
3.Application:chemistry,steel factory,metallurgy,cement,etc.
Fiberglass combined Felt filter bag:
1.Temperature (°C): Continue: 260, Instant: 280
2.Features:heavy loads,long life time, reasonable price, strong function etc.
3.Application:polluted air and dust in Iron & Steel factory, Melting factory, Cement factory,Petrol chemistry ,etc.
PTFE 100% filter bag ,PTFE Fabrics :
1. Temperature (°C): Continue: 250, Instant: 300
2. Features: strong stability, wear resistance, chemical stability, temperature resistance is particularly prominent
3. Application:used in steel, power, waste incineration flue gas filtration and other harsh environments.
For Chemical Industry fiberglass dust filter bag
fiberglass dust filter bag
Our filter bag for the chemical industry are offered as thorough solutions. This means you will receive expert support not only filter bag design, but also how to optimize the flow parameters of your system to get the absolute best productivity. This process-specific product design and applications engineering approach has proven to be the lowest risk way to optimize your system's performance.
fiberglass dust filter bag
For Cement Industry
fiberglass dust filter ba
We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.
For Power station and Incineration Industry
fiberglass dust filter bag
With PTFE membrane, our filter bags provide near zero emissions for waste processing and power station boiler. Whether you use standard or low grade coals, wood or tires in your boiler, or operate a chemical, hazardous, or medical waste incinerator, all we can deliver consistently high airflow over the life of the filter bags for your application.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
