| Place of Origin: | Hefei,Anhui |
| Brand Name: | PPS Needle Felt PTFE Membrane Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product: | 100-200 Micron PPS Filter Bags | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 50-200 Micron Dust Filter |
| Type: | 100-200 Micron Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| Highlight: | Non Woven PPS Filter Bags,100 Micron PPS Filter Bags,550gsm polyester needle felt filter bags |
||

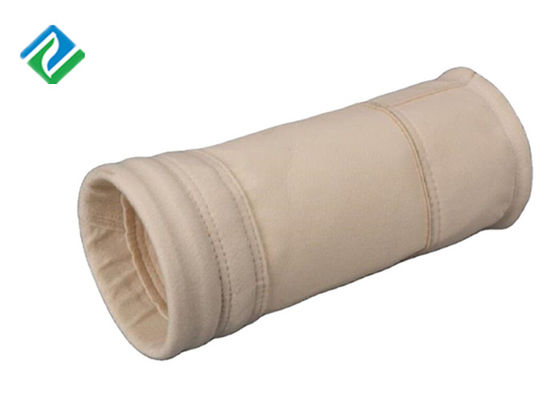

Needle felt sewn 500g antistatic dust cloth pps filter bag
QUICK DETAILS:
1 - Good quality acrylic needle felt made with advanced machinery
2 - Accordingly adjusted technical process
3 - Strict raw material control and products quality control
4 - Competitive price
5. USA Standard
6. ISO certification
Introduction
Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.
Structure and application
Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Filter bag material
We can supply kinds of material of filter bag, the following are the main material:
1. Polyester(PET) filter bag, used in dust temperature lower 130 celsius working condition.
2. Nomex (aramid) filter bag, used in dust temperature lower 200 celsius working condition. like asphalt.
3. PTFE filter bag,used in dust temperature lower 260 celsius working condition. it can be used all working conditions.
4. Fiber glass filter bag, used in dust temperature lower 260 celsius working condition.
5. others, like P84, PPS
FABRIC PROPERTIES
| FIBER | TENSILE STRENGTH | ABRASION RESISTANCE | ACID RESISTANCE | ALKALI RESISTANCE | OPERATION TEMP(°C) | TEMPERATURE SURGES(°C) |
| Polyester | Excellent | Excellent | Moderate | Poor | 130°C | 150°C |
| Polypropylene | Good | Good | Excellent | Excellent | 80°C | 120°C |
| Acrylic | Very Good | Moderate | Good | Moderate | 130°C | 150°C |
| Fiberglass | Excellent | Moderate | Moderate | Moderate | 260°C | 290°C |
| Nomex | Very Good | Very Good | Moderate | Moderate | 200°C | 250°C |
| PPS | Good | Good | Excellent | Excellent | 160°C | 200°C |
| P84 | Very Good | Good | Good | Moderate | 260°C | 300°C |
| PTFE | Moderate | Good | Excellent | Excellent | 260°C | 300°C |

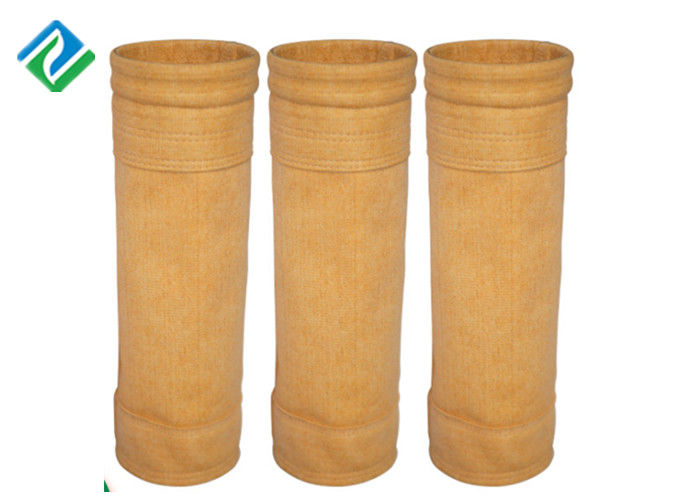

Product Show
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support
0.1 micron filter bag
1 micron filter bags
5 micron filter bag
0.5 micron filter bag
25 micron filter bag
10 micron filter bag
200 micron filter bag
50 micron filter bag
100 micron filter bag
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
