| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | PTFE Needle Felt PTFE Filter Fabrics | Material: | 100% PTFE Shot Fiber |
|---|---|---|---|
| Application: | Metallurgy Industry, Cement, Steel Plant, Etc | Feature: | Heat Stabilization, Glaze, Singe, Membrane |
| Weight: | 500gsm, 550gsm And 700gsm | Size: | 160mmx 3000mm,etc |
| Scrim: | 100% PTFE Filament Yarn | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | Thermal Power Industry PTFE Filter Bag,5mg/Nm3 PTFE Filter Bag,Waterproof PTFE Filter Bag |
||
PTFE filter bags are widely used in various harsh flue gas filtering environments such as steel, electric power, garbage incineration and so on.
1.The material of the dust collector filter bags:
(1) 100% POLYESTER
(2) ANTI-STATIC POLYESTER
(3) 100% POLYPROPYLENE
(4) HOMOPOLYMER ACRYLIC
(5) NOMEX (ARAMID)
(6) RYTON (PPS)
(7) P-84 (POLYIMIDE)
(8) GLASSFIBER
(9) 100% PTFE(TEFLON)
2. The filter cage could be carbon or stainless steel material with veturi tube. It could be also split filter cage in two or three pieces construction for easy installation on the site. Filter cage could be 8, 10, 12, 14, 16, 18, 20, 24 number of 3mm or 4mm veritcal bars.
3.Our company imported from Japan the three-needle and six-thread sewing unit that produces duster bags specially and can process bags f different shapes to the users requirement including round, trapezoidal, flat and profiled filter bag.
4.We can provide two different kinds of the filter bags, one is external filter bag, the other one is internal filter bag.
We can meet the different requirment of media and type!
Specifications of our PTFE filter bag:
| Technical Specification Of PTFE Filter Bag | ||
| Name | 100% PTFE | |
| Component | Shell Fiber | 100% PTFE |
| Scrim | PTFE | |
| Weight | 800 g/m² ± 5% | |
| Thickness | 1.1 ± 0.2mm | |
| Tensile strength N/5*20cm | Length | ≥700 |
| Cross | ≥800 | |
| Elongation at break | Length | ≤30% |
| Cross | ≤50% | |
| Temperature | Continue | 260°C |
| Peak | 280°C | |
| Finish | Heat stabilization, glaze, singe, membrane, waterproof and oil proof | |
The application
Industry Baghouse Filtration ,Air pollution control system,
Foundry / Metal Smelting , furnace filter
Asphalt Mixing
Power Generation ,
Waste treatment power generation plant ,
Cement , Gypsum / Lime Processing
Mining.
Carbon Black
Metallurgy
Chemical Plant
furnace filter
Industrial Dust Filter Bag Needle Felt
air filtration filter media PTFE Needle Felt PTFE Filter Fabrics

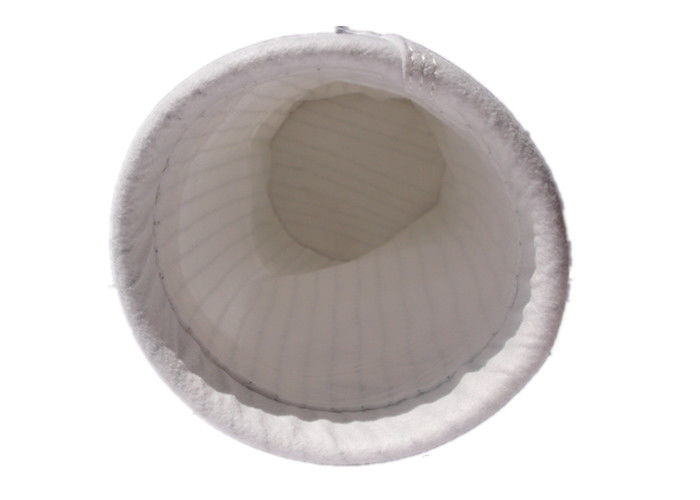

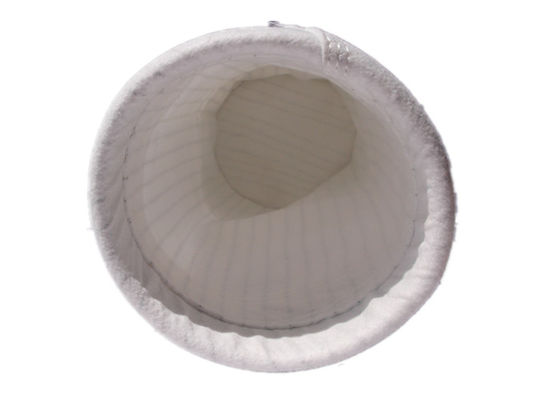

Product Picture
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
