| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 100% PTFE Needled Felt Filter Bag | Material: | Polyester, Nylon, PP, PE, PTFE, Nomex, Fiberglass, Etc. |
|---|---|---|---|
| Application: | Industrial Dust Filtration, Air Filtration | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Size: | 160mmx 3000mm,etc |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| Highlight: | 100% PTFE Dust Collector Filter Bags,5mg/Nm3 Dust Collector Filter Bags,Nomex felt dust collector bags |
||
Types of ECOGRACE Filter bags:
The type of dust filter bags :
Fabric Filter bag
Air Filter bag furnace filter
Industrial Dust Filter Bag Needle Felt
Pulse jet filter bag
Reverse jet filter bag
Envelope type filter bag
PTFE Needle Felt PTFE Filter Fabrics
Details of our PTFE 100% filter bag:
1. Excellent chemical stability and heat resistance;
2. Will withstand all strong acids and alkali erosion;
3. Will serve well for gas continuous operating temperature up to 260°C, instant temperature up to 280°C;
4. Will withstand all kinds of strong oxidant corrosion;
5. Hydrolysis resistance performance is excellent;
6. Good flame retardant, insulation, heat insulation, light stability, low coefficient of friction and small adhesion;
7. PTFE filter cloth has excellent filtration efficiency, low and stable differential pressure, easy cleaning, and under the same conditions its life is significantly longer than other high temperature resistant filter materials.
Specifications of our PTFE filter bag:
| Fiber | 100%PTFE shot fiber |
| Scrim | 100%PTFE filament yarn |
| Weight | 750g/ m² |
| Thickness | 1.2±0.2mm |
| Deviation of Thickness | -5,+5mm |
| Width | 1200 |
| Mechanical Finish | Heat styling |
| Air Permeability | 8~12 |
| Deviation of Air Permeability | -18,+18 |
| Typical Load@Peak | MD:≥800 XD:≥800(N/5*20mm) |
| Typical Strain@Peak | MD:≤18% XD:≤20% |
| Heat Strinkage | MD:≤1.5% XD:≤1% |
The application
Industry Baghouse Filtration ,Air pollution control system,
Foundry / Metal Smelting , furnace filter
Asphalt Mixing
Power Generation ,
Waste treatment power generation plant ,
Cement , Gypsum / Lime Processing
Mining.
Carbon Black
Metallurgy
Chemical Plant
furnace filter
Industrial Dust Filter Bag Needle Felt
air filtration filter media PTFE Needle Felt PTFE Filter Fabrics

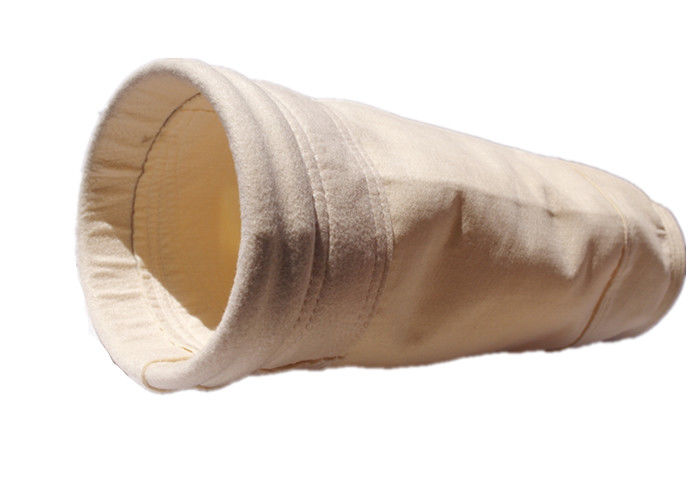

Product Picture
Nomex filter bag:
1. Temperature (°C): Continue: 204, Instant: 240
2. Application : pitch mix gas,blast furnace gas in steel factory, gas, tail gas of white char,kiln applications,electric cooker high temperature gas,etc.
PPS Ryton filter bag:
1. Temperature (°C): Continue: 190, Instant: 210
2. Application:waste incinerator,electric station boiler,industry boiler and so on.
P84 / PI filter bag ( Polyimide ),
1. Temperature (°C): Continue: 260, Instant: 300
4. Application:cement kiln,waste incinerator,etc
Fiberglass filter bag:
1.Temperature (°C): Continue: 240, Instant: 260
2.Features:low price compared with other high temperature fibers,and stable size,low
shrinkage rate,high intensity
3.Application:chemistry,steel factory,metallurgy,cement,etc.
Fiberglass combined Felt filter bag:
1.Temperature (°C): Continue: 260, Instant: 280
2.Features:heavy loads,long life time, reasonable price, strong function etc.
3.Application:polluted air and dust in Iron & Steel factory, Melting factory, Cement factory,Petrol chemistry ,etc.
PTFE 100% filter bag ,PTFE Fabrics :
1. Temperature (°C): Continue: 250, Instant: 300
2. Features: strong stability, wear resistance, chemical stability, temperature resistance is particularly prominent
3. Application:used in steel, power, waste incineration flue gas filtration and other harsh environments.
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
