NonWoven Needle Punched Felt Dust Filter Bag Anti Oxidation

NonWoven Needle Punched Felt Dust Filter Bag Anti Oxidation

  • NonWoven Needle Punched Felt Dust Filter Bag Anti Oxidation
NonWoven Needle Punched Felt Dust Filter Bag Anti Oxidation
Product Details:
Place of Origin: Made in China
Brand Name: Polyester, Nomax, PPS, PTFE, P84, Fiberglass dust filter bag
Certification: ISO9001-2015
Model Number: Air filter,Dust filter
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3 days
Payment Terms: T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: PPS/PE/PTFE/P84/Glass Fiber Filter Bag Material: Polyester, Nomax, PPS, PTFE, P84, Fiberglass Fiber
Application: Bag Filter Housing Equipment Feature: PPS/PE/PTFE/P84/Glass Fiber
Weight: 300-650gm Usage: DUST FILTER
Type: Dust Collector Bag House Working Temperature: 120-150 Degree
Finish Treatment: Calendering,Heat Setting Size: Customized Stainless Steel Mesh Bag
High Light:

Needle Punched Felt Dust Filter Bag

,

Anti Oxidation Dust Filter Bag

,

NonWoven Polyester Filter Bag

Non Woven Polyester Needle Punched Felt Dust Filter Bag Polyester Air Filter Bag For Dust Collector Bag







Product Details


Dust Filtration polyester filter baghouse dust collector filter bag with water and oil repellentPolyester filter bag


Filter bag is the core of the dust filter components. The bag filter cost bag filter housing bag polyester filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.



The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference.



Polyester Dust Collector Filter Bag Specification
Item
Industry Polyester Dust Collector Filter Bag
Construction
Needle Polyester Felt
Fibre Composition
Polyester Fibre
Weight
350gsm,400gsm,450gsm,500GSM, 550GSM 600gsm or OEM/ODM
Diameter Size
100mm,125mm,130mm,150mm,180mm,250mm or OEM/ODM
Continuous Temperature
130-150 Degree
Feature
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
Application
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, foodprocessing and pharmacy industry.
Normal Finishing
Singeing, Calendering, Heat set
Functional Finishing
anti-static, water and oil repellent, PTFE membrance











Product show

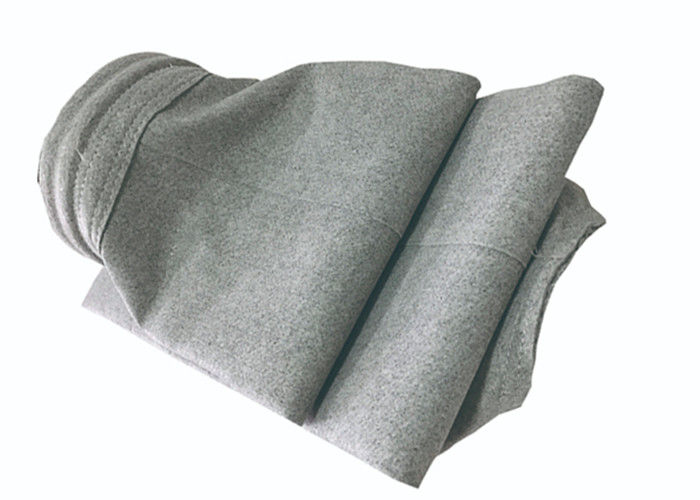

NonWoven Needle Punched Felt Dust Filter Bag Anti Oxidation 0







For Cement Industry



Polyester filter bag



We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.





Precautions for dust bag installation

1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.










FAQ



Q1. How about your delivery time?



A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.



Q2. Can you produce according to the samples?



A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q3. Is it convenient to install and operate the equipment?



A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.



Q4. What is your terms of payment?



A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q5. Can it really meet the environmental requirements?



A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.



Q6. What if the equipment is broken?



A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
