| Place of Origin: | Made in China |
| Brand Name: | Polyester Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Aramid Fabric+glassfiber Dust Filter Bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 100% Pure Polyester Fibre Filter Bag | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 450GSM~550GSM | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | Aramid Dust Collector Filter Bag,FMS Polyester Filter Bags,450GSM Dust Collector Filter Bag |
||
FILTER BAG PROFILE
FILTER BAG FEATURES
This product has the following advantages compared with glass fiber felt.
1. Good temperature resistance, up to 260 degrees.
2. Wear-resisting, bending and bending resistance, better folding resistance.
3. Mechanical strength increased significantly.
Initial resistance and running resistance are reduced.
5. Improve filtration efficiency.
6. filter wind speed up.
7. the service life was significantly improved.
8. The adaptability of dust is improved.
Specifications
|
Polyester Dust Collector Filter Bag Specification
|
|
|
Item
|
Industry Polyester Dust Collector Filter Bag
|
|
Construction
|
Needle Polyester Felt
|
|
Fibre Composition
|
Polyester Fibre
|
|
Weight
|
350gsm,400gsm,450gsm,500GSM, 550GSM 600gsm or OEM/ODM
|
|
Diameter Size
|
100mm,125mm,130mm,150mm,180mm,250mm or OEM/ODM
|
|
Continuous Temperature
|
130-150 Degree
|
|
Feature
|
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
|
|
Application
|
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, foodprocessing and pharmacy industry.
|
|
Normal Finishing
|
Singeing, Calendering, Heat set
|
|
Functional Finishing
|
anti-static, water and oil repellent, PTFE membrance
|

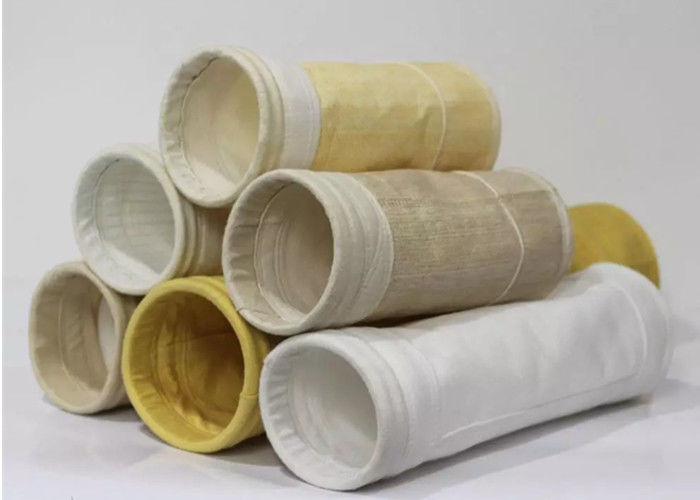

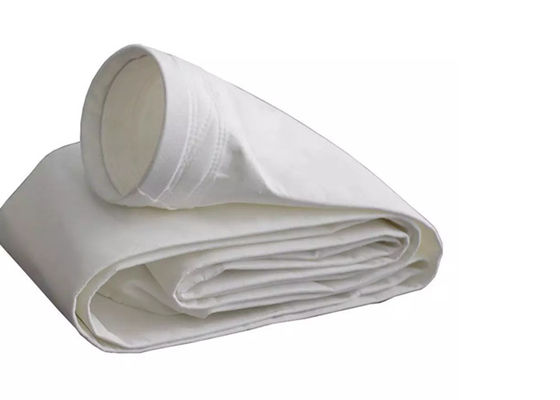

Product Show
1. Dust filtration-----filter bag and filter felt
Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.
2. Liquid filtration filter bag
Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.
3. Machines for making dust filter bags
Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
