700gsm FMS 100 Micron Dust Extractor Filter Bags

Product Details:

Place of Origin:	Made in China
Brand Name:	Filter Bag For Cement Plant
Certification:	ISO9001-2015
Model Number:	Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	Cement Filter Bags	Material:	Nomex , P84 , FMS , P84 Composited Material
Application:	Cement Kiln Tail	Feature:	High Filtration Concentration
Weight:	500gsm, 550gsm And 700gsm	Usage:	Air Filtration,Powder Filtration,Metal Collection Ect.,
Type:	Pocket Filter, Aramid Filter	Working Temperature:	120-150 Degree
Air Permeability:	120 L/m2/S	Filtration Efficiency:	< 5mg/Nm3
High Light:	FMS Dust Extractor Filter Bags , 700gsm Dust Extractor Filter Bags , PPS Air Filter Bag

High Flow Cement Dust Collector Filter Bag Industry Dust Filter Bags For Cement Industry

Product Details

Forst High Flow Cement Dust Collector Filter Bag:

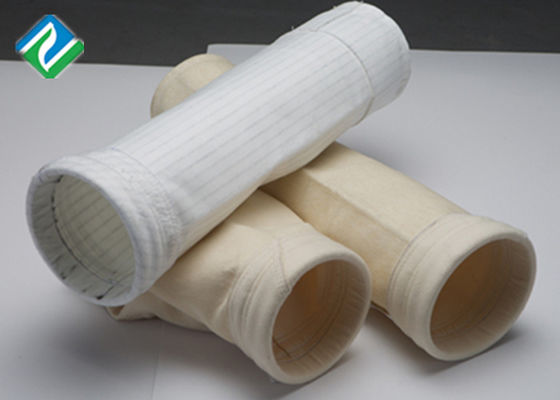

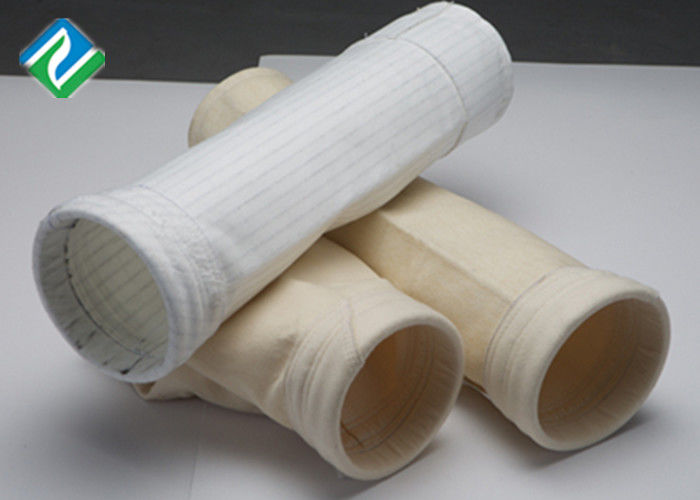

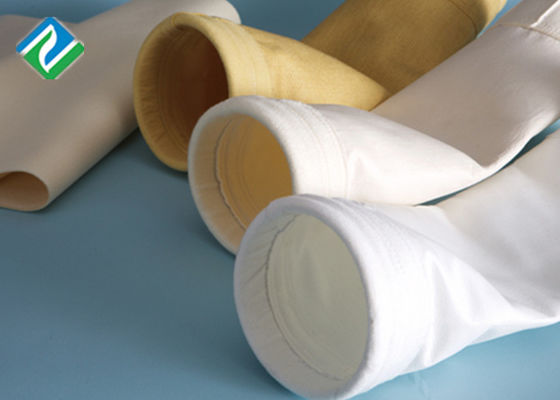

700gsm FMS 100 Micron Dust Extractor Filter Bags 0

Specification:

Model	Filter area	Length	Cartridge (2mLength)	Media Weight	Air permeability	Media type
SFF-P1	2.3m2	1m	135ºC	270g/m2	7m3/m2/min @12mm WC	Spun bond polyester
SFF-P2	4.6m2	2m	135ºC	270g/m2	7m3/m2/min @12mm WC	Spun bond polyester
SFF-D1	2.3m2	1m	135ºC	270g/m2	7m3/m2/min @12mm WC	Antistatic Spun bond polyester
SFF-D2	4.6m2	2m	135ºC	270g/m2	7m3/m2/min @12mm WC	Antistatic Spun bond polyester
SFF-F1	2.3m2	1m	135ºC	270g/m2	7m3/m2/min @12mm WC	Spun bond polyester + PTFE
SFF-F2	4.6m2	2m	135ºC	270g/m2	7m3/m2/min @12mm WC	Spun bond polyester + PTFE
SFF-N1	2.3m2	1m	190ºC	500g/m2	7m3/m2/min @12mm WC	Nomex
SFF-N2	4.6m2	2m	190ºC	500g/m2	12m3/m2/min@12.7mm WC	Nomex
SFF-B1	2.3m2	1m	190ºC			Filber Glass
SFF-B2	4.6m2	2m	260ºC			Filber Glass
SFF-J1	2.3m2	1m	260ºC			PPS
SFF-J2	4.6m2	2m	190ºC			PPS

Description:

Developed to replace traditional filter bags and cages, each pleated bag filter has a one-piece construction design which allows it to be used in new systems or as a simple retrofit in existing bag house equipment for improved system performance.

Pleated bag filters offer more filtration media than traditional felt bags increasing the filtration surface area and thus the filtration capacity. With up to 2-3 times the filter life over traditional 16 oz. polyester felt bags, pleated bag filters provide almost twice as much filtration area in existing equipment due to increased media in the pleat pack design.

This increased filter area causes the air-to-media ratio to decrease when the airflow stays the same, dramatically increasing filtration efficiency while operating at significantly lower differential pressures. Pleated bag filters are shorter than standard fabric bags which allows for larger drop out area and less opportunity for bag abrasion.

Many installation methods to meet all the working conditions, Available in a variety of configurations for top-load, bottom-load and oval styles with multiple filter media options including ePTFE (expanded polytetrafluoruethylene) and spunbond polyester.High temperature media and configurations also available.

Features:

(1) World famous brand filter media: 100% spun bond polyester Smooth surface of filters.
(2) Highest filter efficiency more than 99.99% Proper number of pleats, wide and rigid pleats Large Length-to-OD ratio.
(3) Offers excellent dust release Incorporate design according to requirements Various installation options available, easy to install and save time.
(4) Airtight gasket accessories available Applications in many temperatures conditions. filter media options:

Filter media options: Water and oil repellent treatment.
Antistatic treatment.
PTFE membrane treatment.

Name:Polyester Dust Collector Bag Filter

Filter bag is the"heart"of a dust collector,and it plays a very important part in dust collection.
Filter bag performance effects directly on the dust collecting efficiency.
Polyester needle felt is a widely used filter bag material which has great intensity and elastic
recovery,steady fiber dimension,good anti-wear property,large porosity,good air permeability,
long serving life,high dust collecting efficiency.It shows good mechanical properties and acid and alkali resistance at normal temperature.
Polyester needle felt is a good option with good properties and appropriate price.
Characters of dust such as temperature,proportion,size,adhesion,concentration,humidity, explosibility and filtration velocity should be considered before choosing filter bag to achieve an optimum efficiency.

Advantage

1. High Temperature resistant
2. Corrosion resistance
3. Good hydrolysis stability
4. High filtration efficiency
5. Anti static

Specifications

Vacuum cleaner fabric dust bag material: PE, PPS, P84, PTFE, Glass fiber,dust bags,dust bag filter
Dust bags PPS filter bag media is made of various synthetic fabrics, and each fabric has its own unique function. We can supply the technical proposal to meet customers need according to working condition and the bag's application.

Application fields of Polyester Non Woven Dust Bag,Filter Bag
1 ) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations
2 ) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals
3 ) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers
4 ) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics
5 ) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster
6 ) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

For Cement Industry

Polyester filter bag

We know that the cement producer all over the world need high-performance filter media for kiln/mill, alkali, and other pulse jet or reverse baghouse. Our filter Bags provide emissions control, production increases and the lowest overall maintenance and operating costs.

Produce process:

1)Fiber:high grade Aramid fiber

2)Scrim: Aramid/PTFE

3)Produce Process:needle punched

4)Filter Felt Weight: 550±20gsm

5)Filter Felt Thickness: 2.0±0.2mm

6)Finish treatment:Singeing, calendaring, PTFE dipping

7)Laboratory Testing:check the test report below

8)Cut according to customer's requirement

9)Packing according to customer's requirement

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
