| Place of Origin: | Hefei,Anhui |
| Brand Name: | PPS Needle Felt PTFE Membrane Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | PPS Filter Bags | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | Dust Filter |
| Type: | Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 0.1 Micron PPS Filter Bags,2.5mm PPS Filter Bags,850g/M2 fabric filter bag |
||
Nonwoven Needle Punched Filter Water and Oil Repellent PPS Dust Filter Bag
We are the manufacturer of the filter bag and filter cartridge.
As for dust filter bag,we have PPS/PTFE/NOMEX/P84/Aramid dust filter bag and so on, these material comes from import material, it has a long life, if you are interested in our dust filter bag,when you send inquiry to me,please tell me length and outer diameter,so that we can give you quote,thanks.
1. Product Describtion:
1. High Temperature Resistance:190-220ºC
2. Excellent Anti-Acid and Anti-Alkali
3. Abrasion resistance, high tensile strength
4. Long Service Life: 2 years
5. low resistance of filtration
6. Single fiber, high porosity, gas filtration resistance
7. Can be used in a variety of complex situation and harsh environmental conditions
8. Can be customized.
2 . Specifications:
| Width | ≤2.2m | ||
| Thickness | 2.5mm | ||
| Weight | 850g/m2 ±10% | ||
| Temperature (ºC) | Continue: 120, Instant: 140 | ||
| Air permeability(L/m2.s) | 200-350 | ||
| Tensile strength(N/5cm) | warp | ≥900 | |
| weft | ≥1050 | ||
| Tensile elongation(%) | warp | ≤35 | |
| weft | ≤60 | ||
| Heat shrinkage(%) | warp | ≤1.5 | |
| weft | ≤1.0 | ||
| Finish treatment | Singeing, Calendering, Heat setting | ||
| Anti-acid | Excellent | ||
| Anti-alkali | Excellent | ||
| Anti-abrasion | Excellent | ||
| hydrolysis stability | Good | ||

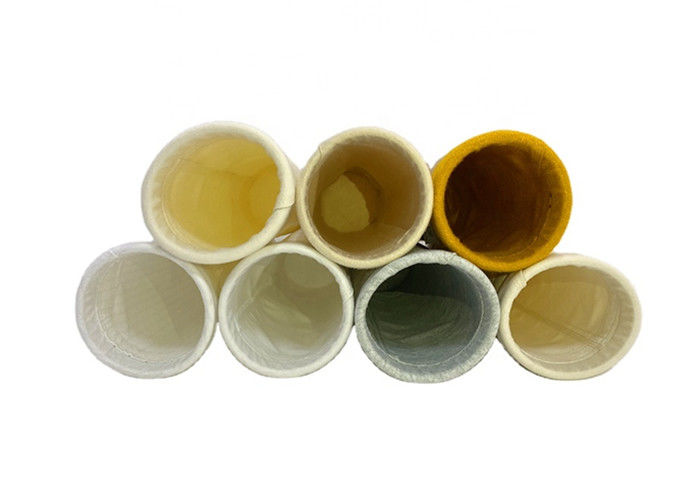

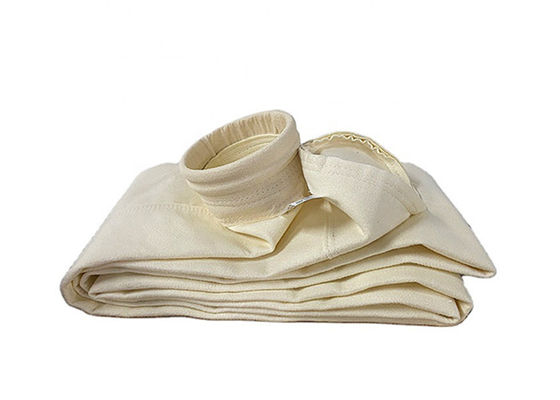

Product Show
Product Range:
Dust Collector
Exhaust Gas Purification
Screw Conveyor
Bucket Elevator
Star Unloader
Dust Humidifier Mixer
Filter Cage
Filter Bag
Pause Valve
Description:
Our company mainly researches and develops hi-tech filter, dust removal products and gradually develop other comprehensive environmental protection projects as sewage treatment and garbage treatment.
Other Information:
We mainly produce 6 range of filter products:
1. Woven filter cloth (multi or mono filament)
In material of PA66. Polyester, PP, PVA, xxxxx
2. Belt filter cloth
Belt fabric in mateiral of Polyester.
Dewatering belt, spiral belt, drying belt, etc.
3. Ari slide belt.
Thickness: 4mm, 5mm, 6mm, 7mm, 8mm
Standard length: Up to 500 m (1650 ft. )
Material Structure: High tencity polyester yarn, circular woven in plain weave, one side polyurethane-coating, for maximumair permeability on the uncoated side, specially designed for good air transport.
4. Needle punched non woven felt in Material of PP, Polyester, Acrylic, P84, PTFE, Nomex (Aramid), PPS, etc Weightness: 100GSM to 3000GSM.
5. Spunbond non Woven in material of PP, Polyester, or PP/PE bicomponent.
Weightness: 10GSM to 280GSM.
Be able to be pleated, and to be made cartridges.
And Widely used for packaging.
6. Filter bags in various material.
Thread Sewing or Welding. Standard size #1#2#3#4 or your special size.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Elaine Li
Tel: 17805600899
