Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag

Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag

  • Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag
  • Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag
Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag
Product Details:
Place of Origin: Made in China
Brand Name: Ptfe Dust Collector Filter Bags
Certification: ISO9001-2015
Model Number: Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3 days
Payment Terms: T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: Dust Collector Filter Bags For Ironworks 160X 6000mm Thickness: 1.6-2mm
Application: Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works Feature: High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion
Weight: 500gsm, 550gsm And 700gsm Usage: Industry Dust Collector
Type: Pocket Filter, Aramid Filter Working Temperature: 120-150 Degree
Air Permeability: 120 L/m2/S Filtration Efficiency: < 5mg/Nm3
High Light:

0.1 Micron PTFE Filter Bag

,

500gsm PTFE Filter Bag

,

2mm polyester felt filter bag



PTFE Nonwoven Filter Bags For Waste Incineration Plant High Temperature Resistant Steel Plant Dust Collector Baghouse

Product Details



Specification



Economical





Filter bags provide cost effective filtration for industrial applications
High filtration performance and extended life time
Washable and reusable
Large flow rate Suitable for the large volume or high viscosity liquid filtration

Wide chemical

compatability

Filter bags are made of different materials in various micron

ratings,Which can be compatible for many situation

100% welded seams



All abutting edges are welded without media migration or by pass
Customized bag filters are available





Filter Bag Specification

Type Flow rate(m3/h) Filtration Area(m2) Size (Diameter X Length)
#1 20 0.25 7" x 16" (180mm x410mm)
#2 40 0.50 7" x 32" (180mm x 810mm)
#3 6 0.10 4" x 8.25" (102mm x 210mm)
#4 12 0.15 4" x 14" (102mm x 356mm)
#5 25 0.30 6 7/8" x 34" (175mm x 870mm)
*Size could be on your request.





Working Conditions



  Temp. Aqueous Aliphatic Alkaline Strong Alkaline Aromatic Acid Strong Acid
PET 130
PPF 90
PPP 90
NMO 130





ORDER INFORMATION



PRODUCT MATERIAL MICRON Seal Type SIZE How to Order ?-Example
FB PET 5um=500 Steel Ring- S 1

Polyester Filter Bag; 5um; Steel Ring;
Size #1.

Selection Code is: FBPET500S1

  PPF 10um-1000 Polyester Ring -P 2
  PPP 25um-2500   3
  NMO 50um-5000   4
    75um-7500   5
    100um-10000   6
            7
        X-special







INTRODUCTION



Filter bag is the core of the dust filter components. The filter bag has the strict requirements on design, filter material cutting, woven technology etc. These requirements are very important for the normal operation of the bag filter and convenient maintenance, and it is great significance to enlong the service life of the filter bag.



Structure and application

Filter bag are composed by woven filter material bag body and supported in role, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.



Product Image

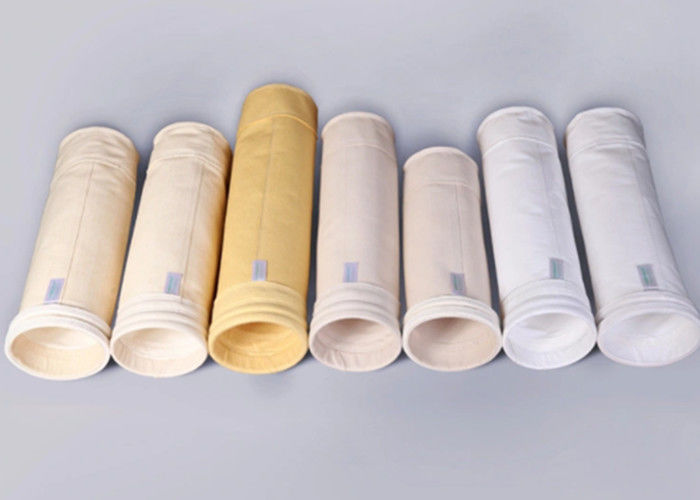

Nonwoven 500gsm 0.1 Micron 2mm PTFE Filter Bag 0





Filter bag processing need attention



Filter bag processing matters that should be paid attention:
After the selection of filter bag material and determine the specifications of the filter bag, we will process the filter bag as following attention matters:


(1) Precise design required size of the filter cloth for filter bag parts, the filter cloth will larger than the actual amount design size, to leave a spare for weaving.


(2) To choose the right filter bag accessories, specifications and check its quality. The filter bag accessories should match the filter bag quality requirements.



(3) We make the filter bag line drawing, cutting, sewing on automatic production line. When the filter bag need manual processing, we will open it on the operation platform, and with certain pulling force to keep it is flat.


(4) We keep the strict processing quality standards, according to design drawings and operation process. Our worker meet the requirements of tooling and clothing shoes and hats, no smoking.



(5) We have the responsible for the processing of products, and examines, waste, residue, defective goods in the beginning.










Precautions for dust bag installation

1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.










FAQ



Q1. How about your delivery time?



A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.



Q2. Can you produce according to the samples?



A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q3. Is it convenient to install and operate the equipment?



A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.



Q4. What is your terms of payment?



A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q5. Can it really meet the environmental requirements?



A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.



Q6. What if the equipment is broken?



A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
