Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags

Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags

  • Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags
  • Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags
Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags
Product Details:
Place of Origin: Made in China
Brand Name: Ptfe Dust Collector Filter Bags
Certification: ISO9001-2015
Model Number: Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Carton or Woven Bag
Delivery Time: 3 days
Payment Terms: T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability: 1000 pcs per day
Contact Now
Detailed Product Description
Product Name: PTFE Filter Bag Thickness: 1.6-2mm
Application: Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works Feature: High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion
Weight: 500gsm, 550gsm And 700gsm Usage: Industry Dust Collector
Type: Pocket Filter, Aramid Filter Working Temperature: 120-150 Degree
Air Permeability: 120 L/m2/S Filtration Efficiency: < 5mg/Nm3
High Light:

1.6mm 5 Micron Filter Bags

,

P84 5 Micron Filter Bags

,

550gsm polyester filter bag



High Temperature Resistance P84 PTFE Filter Bags Sleeves PTFE Membrane Filter Bag For Industry Dust Collector

Product Details




Acrylic needle felt with PTFE membrane filter bag for industry dust collector

Acrylic needle felt with PTFE membrane filter bag for industry dust collector industrial filtration. This kind of needle felt is widely applicable to detergent,waste incineration,asphalt,spray dryer,coal mill and powder plant(desulfurization part) industry to filter gas .





Feature

Polyester fibre Typical characteristics

- Good resistance to oxidation

-Good resistance to hydrolysis

-Good resistance to acids

-PTFE membrane







Specification



Material



Fiber 100% Acrylic
Scrim Acrylic spun yarn
Weight(g/m2) 500
Thickness(mm) 2.0
Air permeability (L/m2/s) 30-60
Tensile strength(N/5×20cm) Warp ≥700
Weft ≥800
Tensile Elongation(%) Warp ≤20
Weft ≤40
Working temperature(°C) Continues ≤120
Instant 140
Hydrolyzation resistant Good
Alkali resistant Moderate
Acid resistant Good
Oxidation resistance Good
Finish treatment

Singe calendering Heat setting PTFE membrane

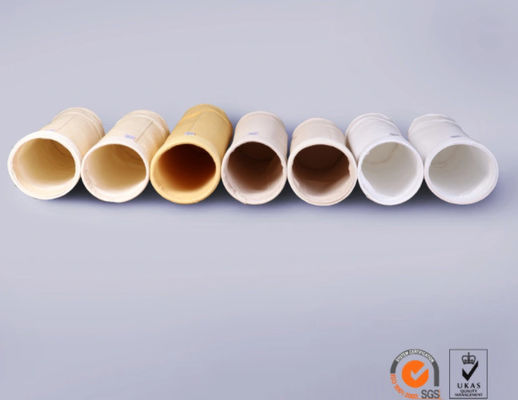

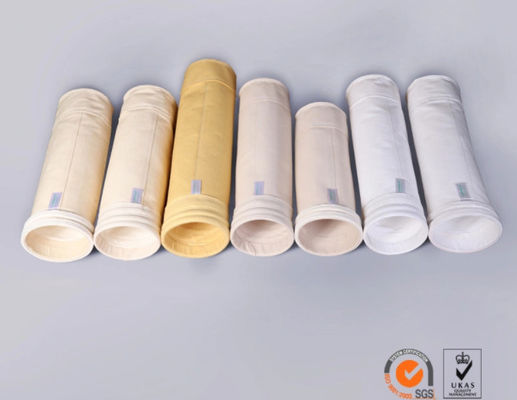

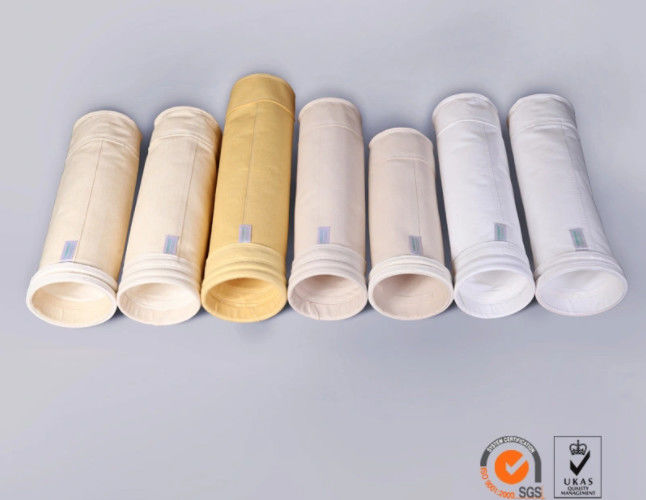

Product Photo


Anti Static P84 550gsm 1.6mm 5 Micron Filter Bags 0

Precautions for dust bag installation

1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.



How to select a proper filter bag?
1) Please inform us the detail of the environment
Different environments, different filter bags. In order to ensure that the accident will not happen to choose the most suitable
filter bag for the environment is particularly important. Temperature, humidity, PH, gas composition and so forth, the more detail
the better. Our client manager prepared a questionnaire for you, just spend a little time to fill it.

2) Ensure standardized installation

The installation process is also particularly important, non-standard installation is a major cause of accidents. Be sure to check
the situation after the filter bags installed.







FAQ



Q1. How about your delivery time?



A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.



Q2. Can you produce according to the samples?



A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.



Q3. Is it convenient to install and operate the equipment?



A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.



Q4. What is your terms of payment?



A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.



Q5. Can it really meet the environmental requirements?



A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.



Q6. What if the equipment is broken?



A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
