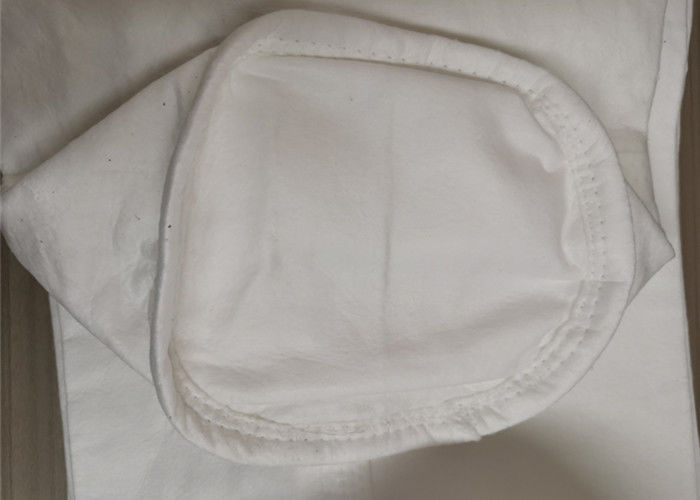

Nomex Needle 700gsm ISO9001 100 Micron PTFE Filter Bag

Product Details:

Place of Origin:	Made in China
Brand Name:	Ptfe Dust Collector Filter Bags
Certification:	ISO9001-2015
Model Number:	Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	PTFE Dust Collector Filter Bags	Thickness:	1.6-2mm
Application:	Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works	Feature:	High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion
Weight:	500gsm, 550gsm And 700gsm	Usage:	Industry Dust Collector
Type:	Pocket Filter, Aramid Filter	Working Temperature:	120-150 Degree
Air Permeability:	120 L/m2/S	Filtration Efficiency:	< 5mg/Nm3
High Light:	100 Micron PTFE Filter Bag , Nomex PTFE Filter Bag , 700gsm polyester needle felt filter bags

Nomex Needle Felt Filter Bags Bag With Ptfe Membrane PTFE Fiberglass Filter Bag

Product Details

1) Different material:

Polyester / PPS / Aramid / P84 / PTFE / Acrylic / FMS / Glasfiber / Antistatic etc

2) Finish treatment:

Singeing / Calendering / Water&Oil repellent / PTFE dipping / Antistatic etc

3) Filter bag processing method:

Sewing&Hot sealing

4) Filter bag size:

Customize according to customer's requirement

5) Working temperature(℃):

150 - 500

6) Filtration effeciency(mg/nm³):

5 - 10

7) Working life:

up to 10000 hours(standard product)

8) Production capacity:

5000 pieces per day

Specifications:

Fibre Types	Operating temperature	Resistance to Hydrolysis	Resistance to Acids	Resistance to Alkalis	Resistance to Oxidation
Polyester	130°C- 150°C	restricted	good	restricted	good
Polypropylene	90°C- 100°C	excellent	excellent	excellent	restricted
PPS	160°C- 190°C	excellent	excellent	excellent	restricted
Aramid(Nomex)	204°C- 240°C	restricted	restricted	restricted	good
Polyimide(P84)	240°C- 260°C	good	restricted	restricted	good
Acrylic	125°C- 140°C	excellent	excellent	excellent	restricted
PTFE	250°C- 280°C	excellent	excellent	excellent	good
Fiberglass	260°C- 280°C	restricted	excellent	excellent	good

Product Show

Application

Filter bag-----Filter bags for air dust collector

Filter Shaker bags/Shaker Bags

Reverse air filter bags/Filter bags for reverse air

Pulse Jet filter bags

Envelope filter bags

Filter bags for special working conditions

Poyester, polypropylene, nylon and PTFE liquid filter bag

fiberglass dust filter bag

Precautions for dust bag installation

1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.

How to select a proper filter bag?

1) Please inform us the detail of the environment

Different environments, different filter bags. In order to ensure that the accident will not happen to choose the most suitable

filter bag for the environment is particularly important. Temperature, humidity, PH, gas composition and so forth, the more detail

the better. Our client manager prepared a questionnaire for you, just spend a little time to fill it.

2) Ensure standardized installation

The installation process is also particularly important, non-standard installation is a major cause of accidents. Be sure to check

the situation after the filter bags installed.

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
