| Place of Origin: | Made in China |
| Brand Name: | Ptfe Dust Collector Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | PTFE | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 550gsm PTFE Filter Bag,5 Micron PTFE Filter Bag,pps filter bag |
||

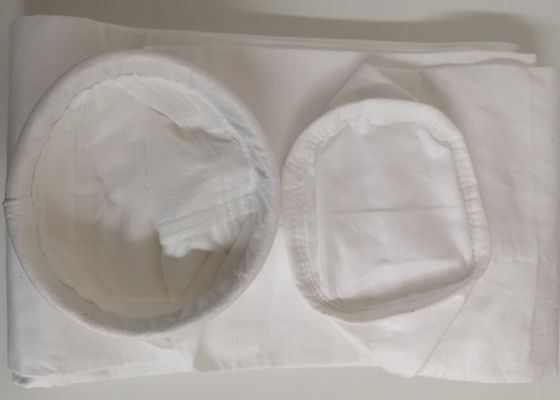

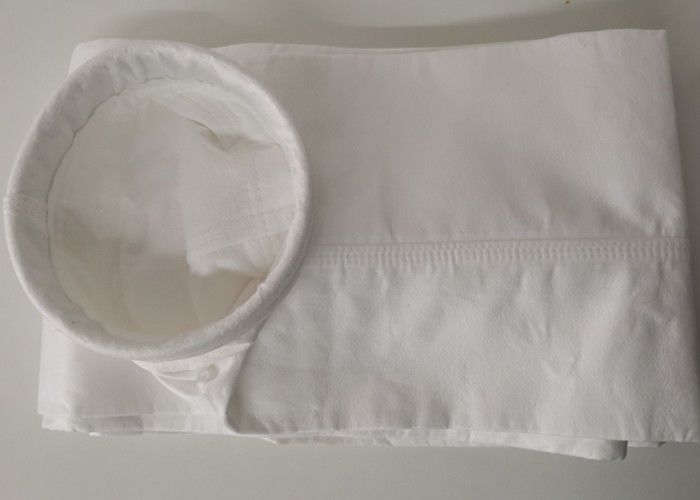

High Temperature PPS Filter Bags
PPS filter bags are used for higher temperature applications with a maximum continuous operating temperature of 160ºC.
PPS filter bags raw material is made of Japan Toray PPS high quality fiber and produced by Germany equipment to loosening, needle punching. Our company can provide different kinds of PPS filter bags according to the customer's demands as follow:
1. PPS filter bags
2. PPS water and oil repellent filter bags
3. PPS+PTFE scrim filter bags
4. PPS+PTFE blending filter bags
5. 30%PPS,70%PTFE filter bags
6. 50%PPS,50%PTFE filter bags
7. 70%PPS,30%PTFE filter bags
Quick Details
This kind reverse air filter bag can be widely used in the industrial filtration field and high temperature dust filtration.
1. grammage: 750;
2. mechanical finish: PTFE ;
3. excellent acids,caustics,solvent,hydrocarbons and abrasion resistance;
4. maximum operation temperature from 200 degree to 260 degree,and maximum surge temperature 270 degree;
5. Air Permeability: 20-40L/M2/S at 127Pa;
NOTE: WE WOULD LIKE TO ORDER ANY SIZE PRODUCTS ACCORDING TO CUSTOEMRS' REQUIREMENTS.
Specifications:
Product Show
Application
Filter bag-----Filter bags for air dust collector
Filter Shaker bags/Shaker Bags
Reverse air filter bags/Filter bags for reverse air
Pulse Jet filter bags
Envelope filter bags
Filter bags for special working conditions
Poyester, polypropylene, nylon and PTFE liquid filter bag
fiberglass dust filter bag
Precautions for dust bag installation
1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.
FAQ
| Q1. How about your delivery time? |
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
| Q2. Can you produce according to the samples? |
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
| Q3. Is it convenient to install and operate the equipment? |
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
| Q4. What is your terms of payment? |
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
| Q5. Can it really meet the environmental requirements? |
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
| Q6. What if the equipment is broken? |
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
