| Place of Origin: | Made in China |
| Brand Name: | Polyester Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Aramid Fabric+glassfiber Dust Filter Bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | 100% Pure Polyester Fibre | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 450GSM~550GSM | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 0.5um Non Woven Filter Bags,PPS Non Woven Filter Bags,550gsm 1 micron dust collector bag |
||
Product features:
(1) Strong dirt holding capacity, large flow, high pressure resistance.
(2) Imported material guarantees that there will be no fiber shedding and no secondary pollution.
(3) High filtration efficiency, low cost, and wide application range.
(4) Weak alkali resistance, chemical resistance, temperature resistance 120°C.
(5) High-density non woven fabrics, depth filtration, precision range of 0.5 to 200 μm
Technical parameter:
Material: PP/PE/Nylon
Ring material: Galvanized steel,Stainless steel ring,PE ring,PP ring,Nylon ring,Drawstring
Manufacture type: Hot-melt,Welded,Sewn
Precision rate: 0.5,1,5,10,25,50,......200μm
Highest operate temp.: 120℃
|
dust filter bags can be customized according to your specific working condition: size, material and other details |
||||||
| Material |
Gramage (g/m²) |
Thickness (mm) |
Working Temperature(℃) | Max. Surge Temperature(℃ ) | Acid-resistance | Alkali-resistance |
| polyester needle felt | 500 | 1.8 | ≤130 | 150 | excellent | good |
| pps needle felt | 500 | 1.8 | ≤190 | 230 | excellent | excellent |
| fiberglass | 1000 | 2.1 | ≤280 | 300 | excellent | excellent |
| acrylic fibers | 500 | 2 | ≤160 | 180 | commonly | commonly |
|
fibberglass P84 fiber |
800 | 2 | ≤280 | 300 | good | good |
Product Show

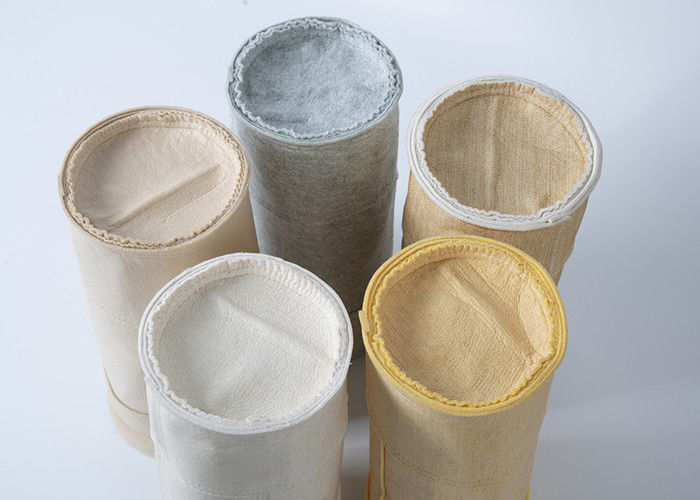

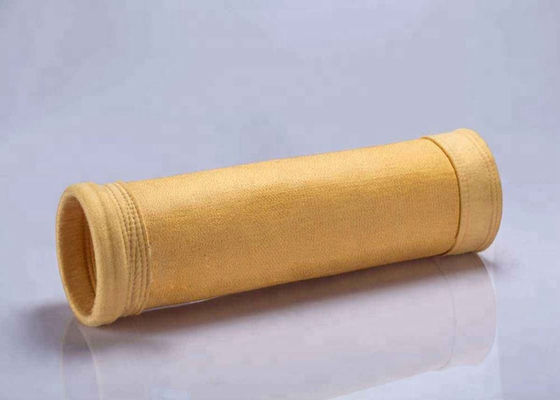

Polyester filter bag for dust collector
High temperature filter bag for dust collector are in general frequently used for dust removal in industrial applications. We make filter bags to fit most styles and types of bag houses and other dust collection systems. Filter bags come in a wide range of fabrics, coatings, finishes, sizes and configurations.Medias are available in various fabric weights and treatments such as singed, glazed, PTFEmembrane, anti-static, acid resistant and more.
Common materials of dust filter bags:
1. Acrylic dust-removing cloth bag
2. PPS dust removal bag
3. Aramid cloth bag
4. P84 high temperature resistant dust removal bag
5. PTFE dust removal bag
6. Glass fiber filter bag
7. Covered cloth bag
8. Anti-static dust removal bag
Hot pressing composite process is adopted in the production of cloth bag film covering.It has the characteristics of easy ash removal, low pressure loss, high dust removal efficiency, energy saving and long service life of filter bag.It can be used in various industries.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
