Asphalt Mixing Plant Dust Collector Filter Bags 5mg/Nm3

Product Details:

Place of Origin:	Made in China
Brand Name:	Felt Dust Collector Bags
Certification:	ISO9001-2015
Model Number:	Dust Collector Filter Bags

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	Asphalt Mixing Plant Baghouse Filter Dust Collector Filter Bag	Filter Bag Environment:	High-Temperature
Applicable:	Power Station , Coal Fired Boiler	Finishing Treatment:	Singeing , Calendering
Weight:	450GSM~550GSM	Usage:	0.1 To 300um Dust Filter
Color:	Customized	Maximum Surge Temperature:	210 Degree
Air Permeability:	15-30 M3 / M2.m	Filtration Efficiency:	< 5mg/Nm3
High Light:	550GSM Dust Collector Filter Bags , 5mg/Nm3 Dust Collector Filter Bags , Asphalt Mixing Plant Baghouse Dust Collector

Dust Collector Bags High Temperature Ash Filter Bag Asphalt Mixing Plant Baghouse Filter Dust Collector Filter Bag

Name: Asphalt Mixing Plant Dust Collector Filter Bags 5mg/Nm3
Brand: Felt Dust Collector Bags
SKU: Dust Collector Filter Bags

Product Description:

Grain mills dust collector needle punched filter bag polyester

Our company choose different fineness polyester fiber make into gradient type structure of filter material , make the product not only has the common felt high voidage , good air permeability,high dust collecting efficiency, high tensile strength, strong elongation,long service life, but also moderate temperature rating.

Operating temperature about 130 to 150℃, moderate antacid and anti-alkali, and has very good abrasion resistance. Gram weight is from 350 g/m2 -600 g/m2, Thickness is from 1 mm to 4 mm, width is below 2.5 meters, our factory can produce, and can be cut to various width. Most popular in Turkey, Russia, Middle east, Asia, Africa,South America etc .

According to different requirements of working condition,Surface treatment can be singeing, calendering, oil and water proof, PTFE impregnation, coating , laminating process.

Application:

mining industry, grain processing, stone crusher, build material, waste incineration plants, steel plants, cements plants, etc

Fiber Composition	Polyester	Polyester with PTFE membrane	PTFE	FMS	P84	PPS	Nomex
Weight (g/m2)	500	500	750-800	800	500	500-550	450-600
Thickness (mm)	1.7-2.0	1.7-2.0	1.2-1.6	1.8-3	2.1	1.8-2.0	1.9-2.4
Running Temperature (°C)	130	130	240	200	180	160	200
Peak Temperature (°C)	150	150	260	280	260	190	240
Air Permeability (M3/M2.S. 200Pa)	8-12	8-12	5-8	15	14	15	8-12
Mechanical Finish	Singeing, calendaring, heat-set				Singeing
Chemical Finish	membrane	Water and oil repellent	PTFE impregnated peritoneal
Warp Of Stretch Strength	800	1000	600	1400	900	900	900
Welf Of Stretch Strength	1200	1300	800	1600	1200	1200	1200
Resistance to Acid	Medial	Fair	Excellent	Excellent	Excellen	Excellent	Fair
Resistance to Oxidation	Excellent	Good	Excellent	Excellent	Excellent	Poor	Fair
Resistance to Alkali	Medial	Poor	Excellent	Excellent	Excellent	Excellent	Good
Resistance to Hydrolysis	Medial	Poor	Excellent	Fair	Excellent	Excellent	Fair
Application	1) The fume and smoke treatment and particle removing system in metallurgy plant 2) Smoke filtration in garbage burning, coal-feed boiler,power plant 3) Asphalt concrete mixture, cements, chemical,ceramics, building materials 4) Dust treatment, purification and collection in electronics, mining, flour and timber processing
Size	Φ4'' ; 5'' ; 5.25'' 6'' ; 6.62'' Length: 18'' up to 192''
Filter Bag Top Construction	1) Side Load: raw edge top (3" longer than split collar cage length) 2) Top Load: snap band/ring ; double beaded
Bottom Construction	1) Single-ply felted disc bottom 2) 3" bottom; double-ply wearguard 3) 5" wear cuff with 2" overhang below bag disc bottomBottom Construction

Aramid Filter Bags ,Nomex Filter Bags, Nomex Needle Felt for high temperature Ash filter bags.
Application:
Nomex filter bags are widely used in Asphalt mixing plant ,steel plant , waste incinerators, coking furnaces, kiln furnaces, chemical dry process of flue gas cleaning processes, also using carbon black, powder collection, pneumatic conveying, cement industry and more. When due to chemical attack and hydrolysis causes, Aramid can not be used, PPS Filter Bag can be substituted.

Performance:

1, Good flame retardant and excellent heat function.
2, Excellent performance of strong acid and alkali resistance.
3, Excellent hydrolysis resistance capability and strong chemical stability.

What can we provide for you?
1, Professional and patient reply for the consulations.
2, High qualified products.
3, Competitive price against other suppliers.
4, Professional instruction during the installation.
5, Continuous and stable after-sale service.

Product Show

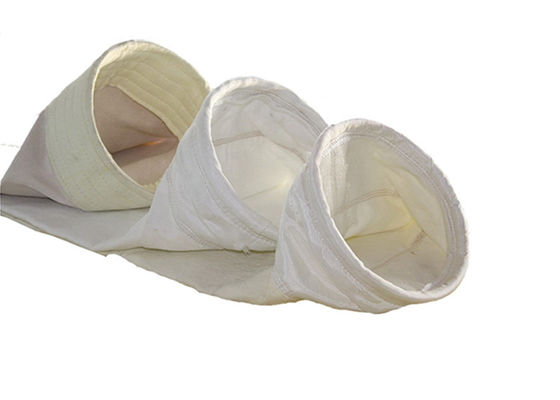

Asphalt Mixing Plant Dust Collector Filter Bags 5mg/Nm3 0

Applications of filter bags :

1) The fume and smoke treatment and particle removing system in metallurgy plant, alloy plant, steel works, moulding factories, fire-retardant factories and power stations

2) Fume filtration, tiny particle recycle and division of liquid and solid in aluminum electro analysis, tin, zinc, cooper and other rare metals

3) Smoke filtration in garbage burning, coal-feed boiler and liquidized laid boilers

4) Division of liquid, solid and tiny particle recycle in chemicals, coke, carbon, dyestuff, pharmacy and plastics

5) Asphalt concrete mixture, cements, ceramics, building materials, lime and plaster

6) Dust treatment, purification and collection in electronics, mining, foodstuff processing, flour and timber processing.

Advantages of the product:

1. Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2. Strong intensity
3. Excellent anti-abrasion,good finishing treatment
4. Good raw material, competitive price
5. High filtration efficiency
6. Fast delivery
7. Size can be customized
8. Factory manufacturer could contol quality and price
9. Strict quality inspection and contol
10. Professional designer team to match with your operating condition

What we can offer:

1.OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
5.Quality Guarantee, If there have any quality problems with products, we are willing to be replaced free.
6.rapid response, the engineer installation guide. The feedback problems will be replied within 24 hours.If any problem, We will arrange professional engineers within 48 working hours to solve it.
7. All goods will be inspected and tested before shipment.

FAQ

1, What kind of filter bags can you provide?

Re, P84, Nomex, PPS, PTFE filter bags are the main products we producve, and PP, DT filter bags are also within our capacity.

2, About the specification, what do you get?

Re, Common specifications like 130x2.45m, 150x4m or 160x6m and we can also design a certain specification for you.
It depends on customers' requirements. You can get more specific information on our web.

3, Can you tell me what certifacation you have?

Re, Yeah, we have got ISO9001 and SGS certification. We pay much attention to our products' quality.

4, What's your payment terms?

Re, Usually in 30% TT in advance and 70% balance against B/L copy.

5, May I ask what kind of after-sale services can you provide?

Re, We offer professional instructions during the installation and oversea service for you if necessarey. For the conplain and claim comes from the problem, we shall take it seriously and give a resonable reply.
