| Place of Origin: | Hefei,Anhui |
| Brand Name: | Non Woven Dust Collector Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Material: | Polyester /PP Non Woven Fabric | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Calendering , Heat Setting |
| Weight: | 450GSM~550GSM | Usage: | Air Filter,Dust Filter |
| Type: | Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | Polyester bag filter dust collector,Calendering Dust Filter Bag,Needle Punched Dust Filter Bag |
||
Product Description
|
||||||||||||||||||||||||||||||
|
Polyester Dust Collector Filter Bag Specification |
|
|
Item |
Industry Polyester Dust Collector Filter Bag
|
|
Construction |
Needle Polyester Felt
|
|
Fibre Composition |
Polyester Fibre |
|
Weight |
350gsm,400gsm,450gsm,500GSM, 550GSM 600gsm or OEM/ODM
|
|
Diameter Size |
100mm,125mm,130mm,150mm,180mm,250mm or OEM/ODM |
|
Continuous Temperature |
130-150 Degree |
|
Feature |
Good resistance to oxidation, limites resistance to acids and alkalis. Serve life will be affected by water content under high temperature.
|
|
Application |
To mine, limestone, cement, iron and steel induestries, alumina delivery, electrolytic aluminium, non-ferrous metal production, wood processing, foodprocessing and pharmacy industry.
|
|
Normal Finishing |
Singeing, Calendering, Heat set |
|
Functional Finishing |
anti-static, water and oil repellent, PTFE membrance |

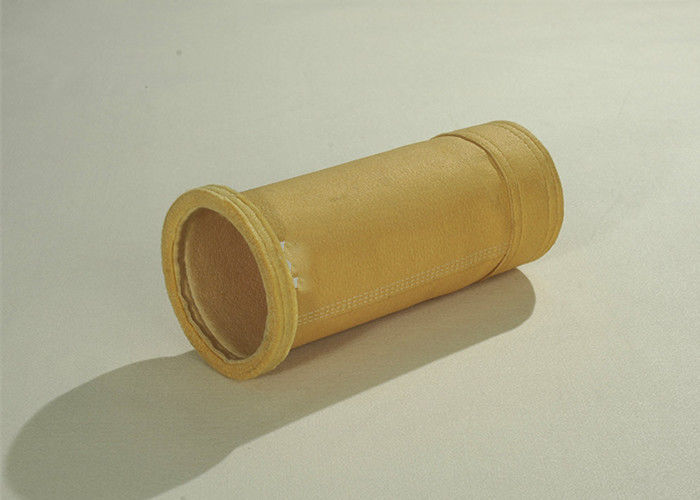

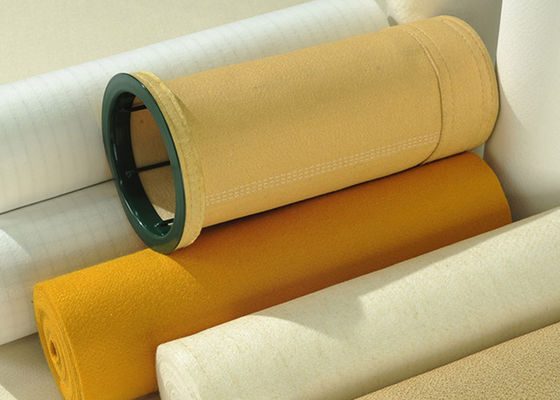

Product Show
PP(Polypropylene)
1. Operating Temperature:<90 centigrade
2. Maximum Temperature:<100 centigrade
3. Wear Resistance:Fair
4. Hydrolisis Resistance:Excellent
5. Alkaline Resistance:Excellent
6. Acidic Resistance:Excellent
7. Anti-oxidability:Fair
8. The filter precision can reach less than 1 micron.
Production Feature:
1.Various material: Polyester(PE), Polypropylen(PP), Aramid, P84, Acrylic, PPS, Fiberglass, PTFE,Nomex,FMS etc.
2.Strong intensity.
3.Excellent anti-abrasion,good finishing treatment.
4.Good raw material, competitive price.
5.High filtration efficiency .
6.Fast delivery.
7.Size can be customized.
8.Factory manufacturer could contol quality and price.
9.Strict quality inspection and contol.
10.Professional designer team to match with your operating condition
Applications:
Galvanic industry and Chemical industryPrefiltering solvents and acids
Prefilter to extend final filter lifeFinal filter for noncritical filtrations
Liquid-solid sepration with strong acid and alkali conditions filter press
Air filtration under 90℃
How to replace the filter bag
Change-out Pressure Differential: The recommended bag filter change-out pressure differential across the bag media is 0.10MPA ( 15 PSI). Continuing beyond this point will result not only in rapid flow rate reduction and contaminant unloading, but also increase the risk of filter rupture. The max differential pressure allowed is 0.23 MPA( 35PSI).
Removal of use filter: During operation, the filter media many be embedded into perforated on the basket under excessive pressure, making it difficult to remove the bag filter.When this happens, don’t use excessive force to pull the bag, as it will break the ultrasonic welding line and detach the seal ring form the bag body. To safely remove the bag, shake the basket rapidly and then use a spine motion to separate the bag from the basket, slowly pull the use bag filter out.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Elaine Li
Tel: 17805600899
