Epoxy Galvanized Filter Bag Cage For PVC Vinyl Coating

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Stainless Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Bag House Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Product Name:	Galvanized Filter Bag Cage	Applicable Industries:	Skeleton Bag Filter Cement Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Filtering Equipment	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Type:	DUST FILTER
Advantage:	Strong Welding
High Light:	Galvanized Filter Bag Cage , Epoxy Filter Bag Cage , PVC Vinyl Coating Filter Bag Cage

Galvanized Filter Bag Cage To Match Filter Bag As Pulse Jet House Solution For Cement Mining Iron And Steel Industry

Product Information

Specifications for Filter cages

Types: Round Style/Flat Style/Envelope Style/ Special Style

Number Of Wires: 8/10/12/16/20/24 vertical wires

Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)

Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)

Wire thickness: Wire thickness ranges are 2mm to 5mm

Material: Carbon Stee, Galvanized Steel, Stainless Steel

Finishment: Epoxy, PVC vinyl coating

Packaging: Cages are packed in custom designed cartons

Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

Advantages:

1. no corrosion

2. no damage

3. 3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5. prominent effect in removing dust from Filter by pulsing

6. easy to install
7. no ventury installation required

Materials/Finishes	Carbon Steel/Mild Steel
	Galvanized Steel
	304 Stainless Steel
	316 Stainless Steel
	Epoxy Coated (High Temp <325°)
	Inconnel 600 or 601
Vertical Wires	10, 12, 20, 5, 6, 8, 16, 24
Wire Gauges	10, 11, 12, 7, 9, 13
Diameters	4''-6 1/8''
Lengths	6''-12''
Cage Shape	Round
	Oval
	Envelope
Cage Top Styles	Rolled Flange (Turned Down Flange)
	Split Collar (Rolled Band)
	Slotted
	All Wire
	Split Ring
Cage Bottom Styles	Welded
	Crimped
	Snap
	Wire Formed
Venturi	Aluminum, Carbon steel, Galvanized and Stainless steel
	Attached (riveted) or drop-in/removable designs
	Lengths: 3''-6''

The cage is the "rib" of the filter bag. It is welded once by automatic welding equipment. The welding is firm and the appearance is smooth and straight, so that the filter bag is not damaged. It is light and easy to install and maintain. Zinc plating or plastic spraying process is used for surface post-treatment.

Product Show

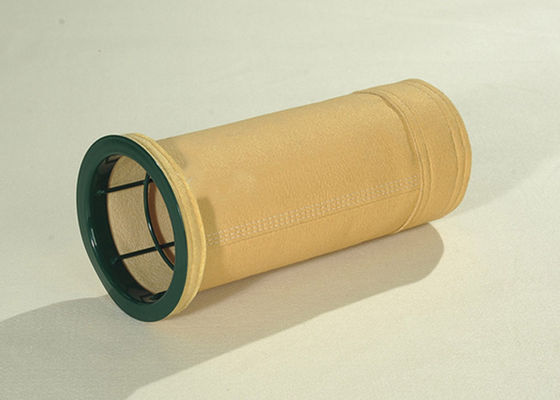

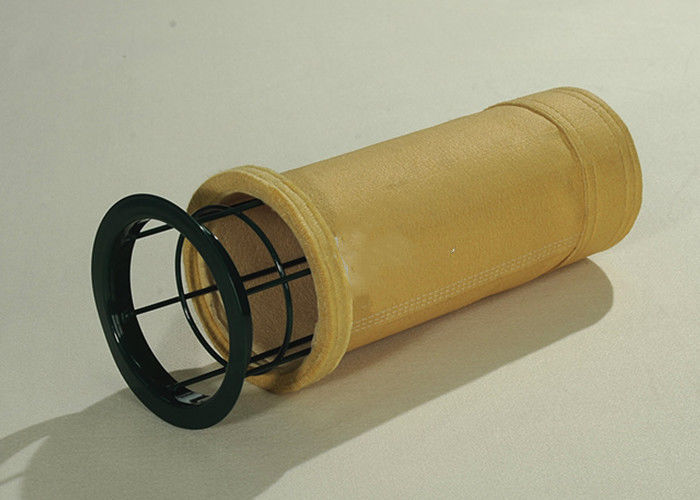

Epoxy Galvanized Filter Bag Cage For PVC Vinyl Coating 0

Dust Collector Cages made from our cpmpany are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.
If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.


Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4”, 6'' or 8”. Wire thickness ranges are: 9 gauge, 10 gauge and 11 gauge.

Bottom load cages are constructed with a split collar or split ring top. Cage diameters range from 4” to 6 1/8”. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.

Working occasions

In industry dust collection

Power Stations
Filtered dust
Flue ash, discharging flue ash
Coal dust

Building and Construction
Cement, furnace dust, gypsum, limestone, finely ground quartz,
Calcium hydroxide, lead monoxide, quicklime, acid crystals,
Pure clay, phosphates, magnesite concentrate, finely ground
fluorid, production of aluminum

Chemical Industry
Thomas meal (Fertilizer)
Rubber compounds, sinter dust, catalysts
Sodium sulfate
Soap powder

In machinery top:

Silos / Tanks
Discharging systems
Warehouse units
Mixing equipment
Homogenizing systems

Chute Bottoms
Conveyor systems
Ventilator systems
Aeration systems

Powder Coating Machinery
Bottoms for sinter basin

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
