Strong Welding Oval Type Filter Bag Cage Galvanized Steel

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Stainless Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Bag House Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Product Name:	Dust Collector Filter Bag Cage For Filter Bag	Applicable Industries:	Skeleton Bag Filter Cement Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Environment Friendly	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Type:	Round/Customized
Advantage:	Strong Welding
High Light:	Galvanized Steel Filter Bag Cage , Strong Welding Filter Bag Cage , Oval Type Filter Bag Cage

Baghouse Wire Venturies Stainless Steel Oval Finger Split Cageter Dust Collector Filter Bag Cage For Filter Bag

Product Information

Features Specifications: Bag Cage For Dust-collector

Bag Cage is the framework which used for supporting the filter bag in the dust collector,it also known as bone cage or skeleton.We could produce various type of the bag cages,such as circle type,oval type,special-shaped and so on,it also could do as different kinds of surface treatment for these bag cages,to meet the use requirements of different industries and the different type dust collectors.

Our Company provides leading technologies in filter bag cage welding industry, from a stand alone machine to a whole automated line, with world class flexibility, quality and cost-efficiency.
1. The six machines are basic configuration of a cage welding line.
1) 16 or 24-vertical wires cage body welding machine,
2) Ring making machine.
3) Air-operated butt welding machine,
4) Top cap welder,
5) Bottom cap welder,
6) Wire straightening machine,

2.Type of cage: Round cage, Oval (flat) cage, Star cage, Split cage, etc.
Cage size: dia.100-200mm
Steel wire of Cage: Mild steel wire, Stainless steel wire, Galvanized carbon steel wire,etc.
Steel wire thickness: 2.5-5mm

Materials/Finishes	Carbon Steel/Mild Steel
	Galvanized Steel
	304 Stainless Steel
	316 Stainless Steel
	Epoxy Coated (High Temp <325°)
	Inconnel 600 or 601
Vertical Wires	10, 12, 20, 5, 6, 8, 16, 24
Wire Gauges	10, 11, 12, 7, 9, 13
Diameters	4''-6 1/8''
Lengths	6''-12''
Cage Shape	Round
	Oval
	Envelope
Cage Top Styles	Rolled Flange (Turned Down Flange)
	Split Collar (Rolled Band)
	Slotted
	All Wire
	Split Ring
Cage Bottom Styles	Welded
	Crimped
	Snap
	Wire Formed
Venturi	Aluminum, Carbon steel, Galvanized and Stainless steel
	Attached (riveted) or drop-in/removable designs
	Lengths: 3''-6''

The cage is the "rib" of the filter bag. It is welded once by automatic welding equipment. The welding is firm and the appearance is smooth and straight, so that the filter bag is not damaged. It is light and easy to install and maintain. Zinc plating or plastic spraying process is used for surface post-treatment.

Product Show

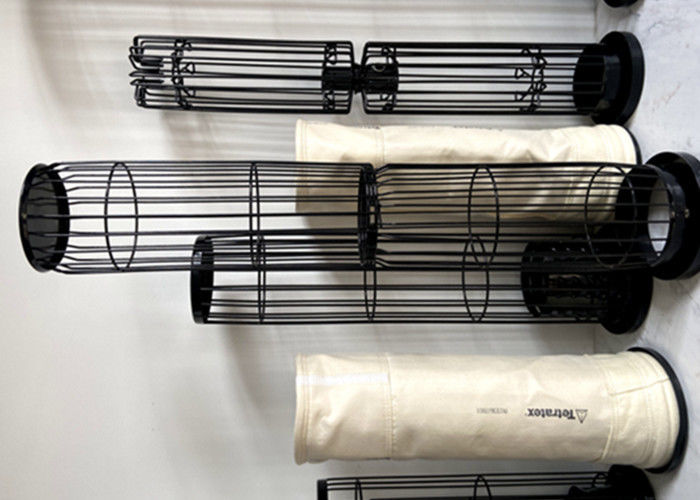

Strong Welding Oval Type Filter Bag Cage Galvanized Steel 0

Dust Collector Cages made from our cpmpany are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.
If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.


Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4”, 6'' or 8”. Wire thickness ranges are: 9 gauge, 10 gauge and 11 gauge.

Bottom load cages are constructed with a split collar or split ring top. Cage diameters range from 4” to 6 1/8”. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.
