Galvanization Dust Collector Bag Filter 316 L Stainless Steel

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Stainless Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Bag House Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Product Name:	Baghouse Dust Collector Bag Cage	Applicable Industries:	Skeleton Bag Filter Cement Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Environment Friendly	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Type:	Round/Customized
Advantage:	Strong Welding
High Light:	0.5 Micron Dust Collector Bag Filter , Galvanization Dust Collector Bag Filter , Stainless Steel Baghouse Filter Cages

Dust Collector Bag Filter Cages 0.5 Micron Filter Dust Bag Filter Cage 304 L 316 L Stainless Steel Wire Bag Cage

Product Information

Features Specifications: Bag Cage For Dust-collector

Bag Cage is the framework which used for supporting the filter bag in the dust collector,it also known as bone cage or skeleton.We could produce various type of the bag cages,such as circle type,oval type,special-shaped and so on,it also could do as different kinds of surface treatment for these bag cages,to meet the use requirements of different industries and the different type dust collectors.

Application: Dust from factory of mine, wood, Cement, chemical, medicine, dying,Paint, plastic, food & other industry.

About filter cage:(Specification for Special Cages)

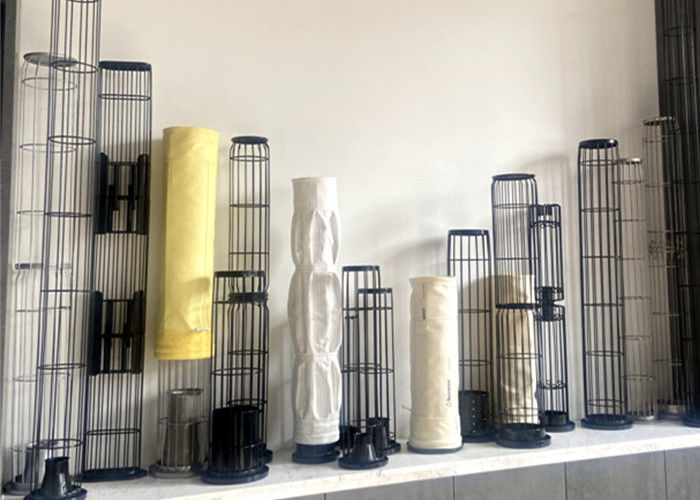

Galvanization Dust Collector Bag Filter 316 L Stainless Steel 0

	ENPO	ENPT	ENPE
Filter layer material	PP	PTFE	PE
Seal ring	S201,S304,S316L,PP	S304,S316L	S201,S304,S316L,PE
Maximum operating pressure difference	1.7 bar
Suggested replacement of differential pressure	1 bar
Maximum operating temperature	90℃	135℃	135℃
Size	Size 01:180×430mm Size 02:180×810mm Size 03:100×230mm Size 04:100×380mm	Size 01:180×430mm Size 02:180×810mm	Size 01:180×430mm Size 02:180×810mm Size 03:100×230mm Size 04:100×380mm
Filter area	Size 01:0.24m2 Size 02:0.48m2 Size 03:0.08m2 Size 04:0.16m2	Size 01:0.24m2 Size 02:0.48m2	Size 01:0.24m2 Size 02:0.48m2 Size 03:0.08m2 Size 04:0.16m2

The cage is the "rib" of the filter bag. It is welded once by automatic welding equipment. The welding is firm and the appearance is smooth and straight, so that the filter bag is not damaged. It is light and easy to install and maintain. Zinc plating or plastic spraying process is used for surface post-treatment.

Product Show

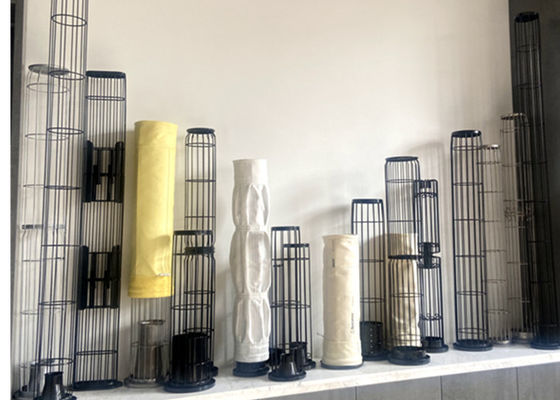

Galvanization Dust Collector Bag Filter 316 L Stainless Steel 1

Dust Collector Cages made from our cpmpany are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.
If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.


Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4”, 6'' or 8”. Wire thickness ranges are: 9 gauge, 10 gauge and 11 gauge.

Bottom load cages are constructed with a split collar or split ring top. Cage diameters range from 4” to 6 1/8”. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
