Baghouse Stainless Steel 316 Filter Bag Cage Silicone Coated

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Stainless Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Bag House Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Product Name:	Baghouse Dust Collector Bag Cage	Applicable Industries:	Skeleton Bag Filter Cement Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Environment Friendly	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Type:	Round/Customized
Advantage:	Strong Welding
High Light:	Silicone Coated Filter Bag Cage , Baghouse Filter Bag Cage , Stainless Steel 316 Filter Bag Cage

Baghouse Dust Collector Bag Cage Skeleton Bag Filter Cement Plant Dust Collector Filter Bag Cage For Filter Bag

Product Information

Dust collector filter cage features:

1. Filter bag cage to be galvanized/silicon coated surface treatment;

2. Carbon or Stainless steel 304/316 material;

3. ISO9001:2015 Certified;

4. Round or oval or envelop shaped;

5. Any length or diameter;

6. Single or split type.

The ventury dust filter cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirements for tightness, smoothness and uprightness.

1. material of cage: Carbon steel or Stainless Steel304, 316, 316L

2. type of cage: Any type(round, envelop, star)

3. type of the horizontal bar: Any type

4. surface treatment: Galvanized or silicon coating or epoxy finish

5. venturi material: Aluminum, metal or stainless steel

The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.

The thichkness of the longitudinal wire can be Φ3, Φ3.2, Φ3.5, Φ3.8, Φ4mm.

Product Name	Galvanized Steel Filter Bag Cages for Baghouse Power Plant
Material	Carbon Stee, Galvanized Steel, Stainless Steel
Types	Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires	8/10/12/16/20/24 vertical wires
Ring Space	Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter	Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness	Wire thickness ranges are 2mm to 5mm
Finishment	Epoxy, PVC vinyl coating
Packaging	Cages are packed in custom designed cartons
Usage	Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic,food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.

The cage is the "rib" of the filter bag. It is welded once by automatic welding equipment. The welding is firm and the appearance is smooth and straight, so that the filter bag is not damaged. It is light and easy to install and maintain. Zinc plating or plastic spraying process is used for surface post-treatment.

Product Show

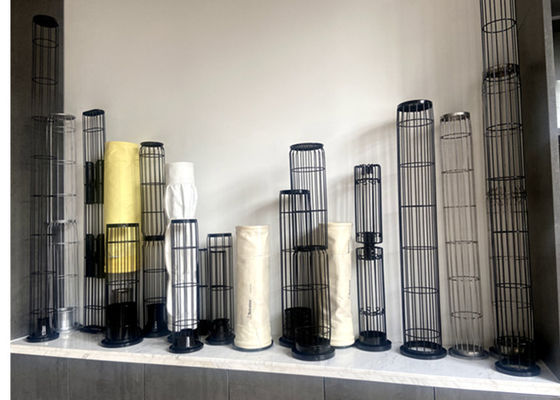

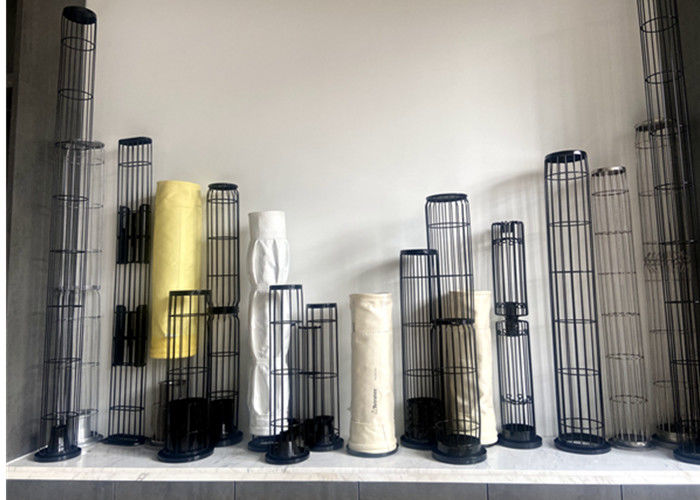

Baghouse Stainless Steel 316 Filter Bag Cage Silicone Coated 0

Dust Collector Cages made from our cpmpany are to fit most baghouse makes and models. Common cage constructions consist of 10, 12 or 20 vertical wires. Standard horizontal ring spacings are 4”, 6” or 8”.
If clean air plenum height restrictions are a problem, two piece cages are available. For areas where moisture or acid corrosion are present we provides a range of materials and coatings.


Top load cages are available with a T-flange, ring top or several styles of rolled flange tops. Cage diameters range from 4”, 6'' or 8”. Wire thickness ranges are: 9 gauge, 10 gauge and 11 gauge.

Bottom load cages are constructed with a split collar or split ring top. Cage diameters range from 4” to 6 1/8”. Wire thickness ranges are 9 gauge, 10 gauge and 11 gauge.

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
