High Temperature 0.5 Micron Nomex Aramid Filter Bags

Product Details:

Place of Origin:	Made in China
Brand Name:	Aramid Fabric Dust Filter Bag
Certification:	ISO9001-2015
Model Number:	Customized Size Aramid Filter Bags

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	Aramid Air Filter Bag	Thickness:	≥2.0 Mm
Scrim:	NOMEX	Feature:	Dust Collection,Heat Resistant,High Quality
Weight:	550 G/m2	Usage:	Cement Plant,Power Plant,Steel Plant,Mining Plant Etc.
Type:	Pocket Filter, Aramid Filter	Working Temperature:	120-150 Degree
Air Permeability:	15-30 M3 / M2.m	Filtration Efficiency:	< 5mg/Nm3
High Light:	0.5 micron Aramid Filter Bags , Nomex Aramid Filter Bags , 0.5um dust extractor filter bags

Aramid Filter Bag Of High Temperature Aramid Filtering Material Dust Filter Bags Aramid Dust Filter Bag

Filter media selection:

Aramid Felt -ES	N-ARM/PTFE-550G/PTFE-ES PTFE-ES : PFTE Emulsion Soaking
Weight per Square Meter (Normal)	550 G
Material (Fiber/Scrim)	ARM/PTFE
Thickness	1.9~2.3 mm
Air permeability	15~20 M3/M2.Min@200Pa
Warp Tensile Strength	> 900N/5×20cm
Weft Tensile Strength	> 1300N/5×20cm
Warp Elongation	< 30%/(5×20cm)
Weft Elongation	< 40%/(5×20cm)
Continuous service Temperature	< 204ºC
Instant (<10Min.) Temperature bears	< 240ºC
Liner Shrinkage@130 ºC	MD<1.5%, XD<1%
Mechanical Finish	Heat setting, singeing, calendering PTFE-ES : PFTE Emulsion Soaking
Chemical Finish	/
Mullen (PSI)	/
Water Repellent	/
Surface Electric-Resistance	/
Special Surface or Deep Treatment (In case client specially request to)	PTFE Membrane Laminated (PTFE-ML), or PFTE Emulsion Soaking (PTFE-ES)
Other Customise Requests	Acceptable depends on MOQ.

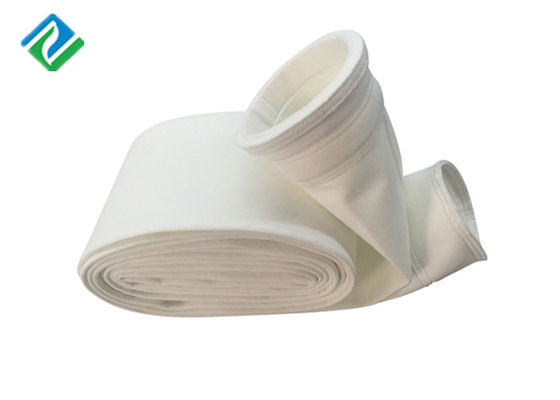

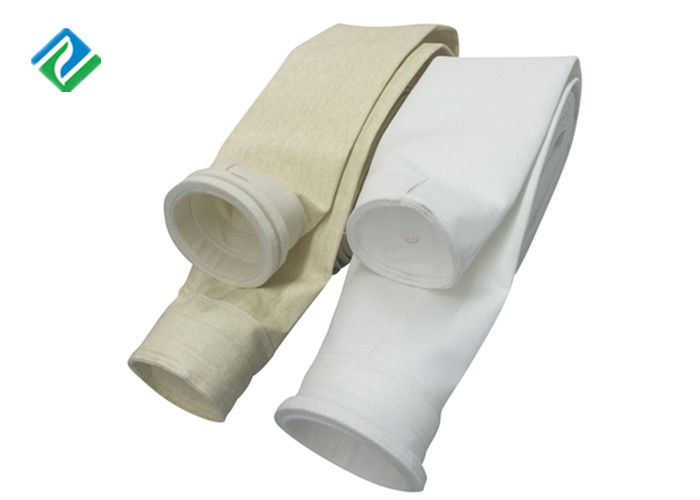

Product Show

High Temperature 0.5 Micron Nomex Aramid Filter Bags 0

Features of Nomex Filter Bag:

Compare with the other heat-resisting fabrics, Aramid is cheaper and better. Good performances of intensity. Good abrasion and folding resistance.

The acid resistance of our Aramid Filter Bag is good. If you want to know the detail, please contact us!
Physical properties:

Air permeability(L/m2.s) @200pa	Tensile strength(N/5cm)		Temperature(ºC)
Air permeability(L/m2.s) @200pa	warp	weft	continue	instant
150~300	1000	1100	204	240

Chemical properties:

Acid Resistance	Alkali Resistance	Hydrolytic Resistance	Oxidation Resistance	Abrasion resistance
Good	Good	Moderate	Poor	Good

Application:

1) Mining

2) Cement Industry

3) Iron and Steel Industry

4) Aluminum and Non Ferrous Industry

5)Flour Mills (Applications under dry conditions up to temperatures of 150°C)

Delivery time

Samples delivery time : 1 ~ 2 days

Normal products : Available stock

LCL orders delivery time : 7~10 days

FCL orders delivery time : 15~20 days

Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin

FAQ

Q1 : Are you manufacturer or Trade Company? A : We are a manufacturing and trading company with

nearly 20 years of production experience.

Q2 : Where is your factory located? A : Our company is headquartered in Shanghai, and has branch factories

in Kunshan City,Jiangsu Province, Jiaxing City, Zhejiang Province,

and Jinan City, Shandong Province.

Q3 : Is your price competitive ? A : Yes,our price is competitive under the same quality.

We have multiple fully automatic production lines,

which can save a lot of labor costs while ensuring quality.

Q4 : Do you provide OEM service? A : Yes, absolutely we can, and we can production totally according

to your design standard.We will keep your sample confidential.

Q5 : What is your sample policy? A : Base on the sample quantity and express cost,

sample fee will be refund when you place a order.

Q6: What is your terms of payment ? A: Payment<=1500USD, 100% in advance. Payment>=1500USD, 30% T/T in advance ,balance before shippment.

Q7 : How about your delivery time? A : Generally, it will take 10 to 15 days after receiving your advance payment.

The specific delivery time depends on the items and the quantity of your order.

Q8: What kind of packing and transportation do you choose? A : We usually pack them in cartons or wooden cases and transport them by Cargo ship or plane. We will choose the most suitable packing and transportation mode to ensure that the goods will not be damaged during transportation.

Q9: What is your terms of delivery? A : CIF, DDU.EXW, FOB, CFR,DAP, FCA Q10 : Do you test all your goods before delivery? A : Yes, we have 100% test before delivery.
