Silicon Industrial SS316 20cm PPS Filter Bag Cage

Product Details:

Place of Origin:	Anhui,China
Brand Name:	Filter Bag Cage
Certification:	ISO9001-2015
Model Number:	Filter Bag Cage

Payment & Shipping Terms:

Minimum Order Quantity:	100 pcs
Price:	Negotiable
Packaging Details:	Pallet , Carton box,knitting bags
Delivery Time:	According to the quantity
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	Negotiable

Contact Now

Detailed Product Description

Product Name:	Filter Bag Cage	Applicable Industries:	Manufacturing Plant
Function:	Back Bone Support For The Dust Filter Bag	Main Function:	Filter Bag Skeleton
Application:	Environment Friendly	Treatment:	Epoxy , Galvanization
Material:	Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel	Type:	Round
Advantage:	Strong Welding
High Light:	PPS Filter Bag Cage , SS316 Filter Bag Cage , 20cm support cage

Silicon Industrial PPS Cloth Dust Filter Bag Cage Filter Bags Support Cage For Bag Filter Housing Dust Filter Bag Cage

Name: Silicon Industrial SS316 20cm PPS Filter Bag Cage
Brand: Filter Bag Cage
SKU: Filter Bag Cage

Product Information

1.Filter bag cage/Filter bag frame:
We surpply full range of filter bag cages; each cage made in TR can fit to the requirements of being light, handy, smooth and straight. Cage resembles the rib of bag. It should be light, handy, easy to install, maintain, and it is smooth and straight, to prevent the bag from damage.

2.Material of filter bag cage:
1. Galvanized steel;
2. Stainless steel304, 316, 316L and etc.;
3. Silicon power plated.

3.The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.

Specifications
Types:	Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires:	8/10/12/16/20/24 vertical wires
Ring Space:	Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter:	Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness:	Wire thickness ranges are 2mm to 5mm
Material:	Carbon Stee, Galvanized Steel, Stainless Steel
Finishment:	Epoxy, PVC vinyl coating
Packaging:	Cages are packed in custom designed cartons
Usage:	Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages:	1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 4. economical maintenance(almost no Maintenance required) 5.prominent effect in removing dust from Filter by pulsing 6.easy to install 7.no ventury installation required
Standard Technical Data
Round Style	Diameter(mm)	Bag Diameter(mm)	Length(mm)
	115	120	2000,2400 2800, 3200,3600,4000, 4400,4800,5200, 5600,6000,7000
	125	130
	147	152
	195	200
Flat Style	Perimeter	Bag Perimeter	Length(mm)
	800	800	2000 3000 4000 5000 6000
	900	900
Envelope Style	Length Width Thickness		Bag Length Width Thickness
	1500X750x25mm		1500X750x25mm

Product Show

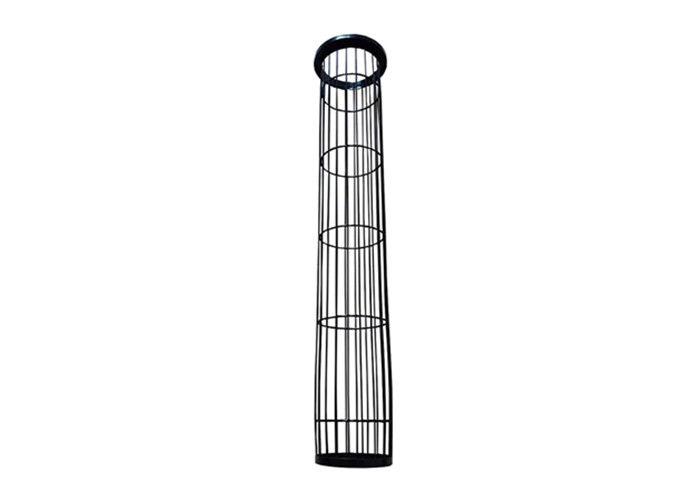

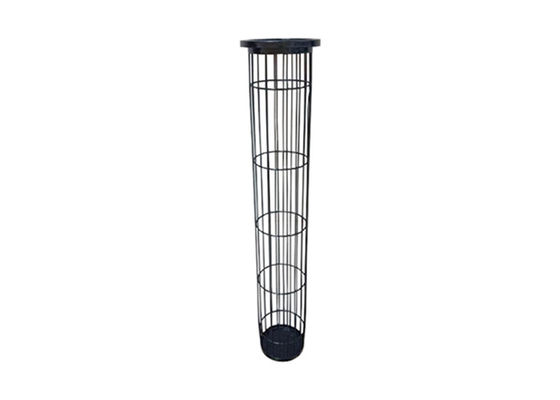

Silicon Industrial SS316 20cm PPS Filter Bag Cage 0

FAQ

Q1. How about your delivery time?

A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.

Q2. Can you produce according to the samples?

A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q3. Is it convenient to install and operate the equipment?

A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.

Q4. What is your terms of payment?

A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q5. Can it really meet the environmental requirements?

A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.

Q6. What if the equipment is broken?

A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
