| Place of Origin: | Anhui,China |
| Brand Name: | Air Slide Fabric |
| Certification: | ISO9001-2015 |
| Model Number: | Air Slide Fabric |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | Negotiable |
| Product Name: | 100% Air Slide Fabric | Feature: | Shrink-Resistant, Flame Retardant, Oilproof |
|---|---|---|---|
| Use: | Industry | Weight: | 1 Square =4 Kg |
| Type: | Canvas | Applicable Industries: | S: Manufacturing Plant, Cement Industry |
| Color: | White/Yellow | Max Width: | 2600mm |
| Technics: | Woven | Thickness: | 4-8mm |
| Highlight: | 8mm Air Slide Fabric,Aramid Air Slide Fabric,woven 0.1 micron filter fabric |
||
Product Parameters

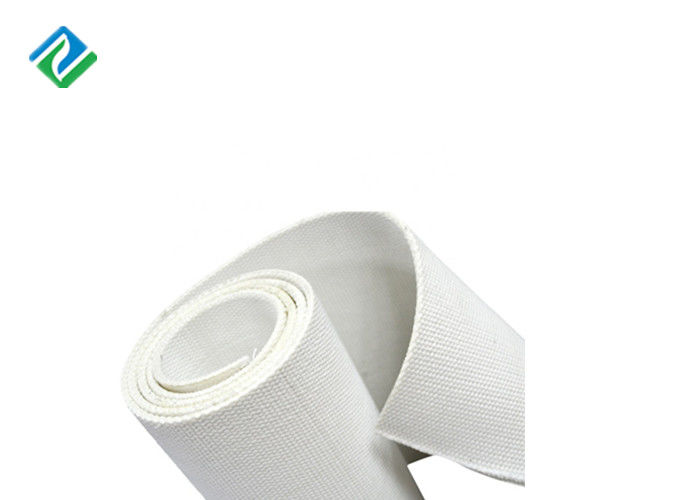

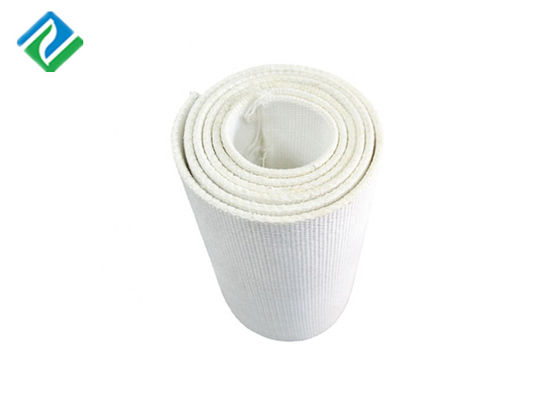

Polyester Filament Air Slide Fabric For Cement Factory
The Polyester Filament Air Slide Fabric For Cement Factory consists of polyester fiber as raw material, which is woven by heavy-duty loom warp and weft thread,it is suitable for pneumatic transportation of powdery materials such as cement and alumina. The product is spread between the material and the air chamber, the following is the gas chamber, the above is the material, under the action of air pressure through the product, the material fluidized, so as to achieve the purpose of transport. It is also suitable for pneumatic conveying devices of other powder and granular materials.
Polyester Filament Air Slide Fabric For Cement Factory Advantage
No moisture absorption No caking
Resistant to rotting and decomposition
Complete unloading without residues
Consistent fluidization over the complete surface
Good resistance to abrasion
Low wear and therefore longer life
Low shrinkage even when used under hot and humid conditions.
Airslide Fabrics are an indispensable part of cement plan,chemical industry,metallurgical industry,bulk cement tank trucks,bulk cement ship and fixed cement tanks.
| Product Name | Heat Resist Seamless P.B.O / Kevlar Aramid Conveyor Insulation Felt Timing Belt for Aluminum Extrusion |
| Brand | ECOGRACE |
| Work Temperature | 600ºC |
| Size | Make-to-order |
| Thickness | 5-12mm |
| Width | 50-150mm |
| Usage | Aluminum Extrusion Initial Table |
| Color | Brown+Yellow |
| Hardness | Adding Resin Or Not |
| Shape | Strip |
| Thickness | 2mm PBO layer + 8mm Kevlar layer / 3mm P.B.O layer + 7mm Kevlar Layer |
| Technics | Needle Punched |
| Material | 20% PBO+ 80% Kevlar / 30% P.B.O + 70% Kevlar . |
| Type | Color and Work Temperature | Composition |
| PK | Brown + Yellow 600ºC | PBO + Kevlar mixture |
| K | Yellow 500ºC | Kevlar |
| N | Off White 500ºC | Nomex |
| P | White 200ºC | Polyester |
| Type | Material | Ply | Tensile Strength | Heat resistance°C | Thickness | Weight/m2 | Max Width | Air resistance in 2m3/m2/minH2O mm |
|
| Warp>N/mm | Weft>N/mm | ||||||||
| AP4-4 | 100%Polyester | 4 | 360 | 270 | 150 | 4 | 3200g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-200 |
| AP4-5 | 100%Polyester | 4 | 360 | 270 | 150 | 5 | 3600g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-200 |
| AP4-6 | 100%Polyester | 4 | 360 | 270 | 150 | 6 | 4000g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-200 |
| AP4-7 | 100%Polyester | 4 | 360 | 270 | 150 | 7 | 4400g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-200 |
| AP4-8 | 100%Polyester | 4 | 360 | 270 | 150 | 8 | 4800g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-200 |
| AC4-5 | 100%Cotton | 4 | 150 | 100 | 150 | 5 | 3800g | 2000mm | Type A;80-120 Type B:120-150 Type C:150-2 |
Types of Heat Resisting Felt Roller
1 ) 500 C temperature resistance, 100% Aramid ( Dupont Fiber ) Heat resistant fiber for production.
Fiber introduction: Aramid (Dupont Fiber) fiber can resist instant 550 C, longtime working with high temperature sections material (300 C ~500 C ), will not melt and pollute Sections Aluminum as Aramid (Dupont Fiber) Fiber is Thermo settings.
2 ). Kevlar Felt, 480C temperature resistant, 70% Aramid (Dupont Fiber) Fiber blended with 30% carbon fiber to get Kevlar Felt.
Fiber introduction: carbon fiber is also Thermo Setting material will not melt and pollute sections Aluminum, Kevlar Felt can resist instant 480C, long time working in high temperature conditions ( 280 C ~500C),
felt will be in weightlessness. 30% carbon fiber will take calorific conduction and save production cost.
Types of Heat Resisting Felt Belt ( Kevlar / Nomex Roller / Belt )
1 ). 480 C ~500 C Felt Belt
2 ). Nonporous Felt Blet 480 C ~500 C
3 ). Regular Surface conglutinate Felt Belt, 480C ~500 C.
Application of Kevlar Roll Nomex Felt Belt :
1 . Applided in walking beam, Felt Roller 100% Aramid (Dupont Fiber). 500 C. 12mm thickness.
2 . Nonporous felt belt is composed with nonporous scrim and needle punched layer. Different tons of extruder will take different belt,
AA class: 3 layer of Aramid (Dupont Fiber) nonporous scrim, tensile strength 35N/ mm, are suitable for
2000tons extruder.
A Class: Composed by 1 layer of Kevlar nonporous scrim,3 layer high strength Polyester scrim. PE layerin the middle can only resist 200 C, suitable for less then 2000 tons extruder.
Product Show
Working principle
In cement plant:
An Airslide belt is in the middle of a chute. Powder material will come into the chute above Airslide belt. Material will flow to the chute lower side as pneumatic blower down Airslide belt. That's why we say Airslide belt can move powder material because of the wind power. And then, the rest wind will go out from the top of the chute. Through the moving, no parts moved except powder material. So that it can spare more energy and maintain cost, etc.
In fluidization silo:
Our Airslide canvas is installed on the surface of the silo bottom. It is supplied for installation as aeration units on the sloped conical bottoms of bins and silos to aid in the withdrawal of dry relatively free-flowing material.
Each Airslide aeration unit package consists of 200mm open-type. Airslide conveyor units in lengths of 1.5 or 3m depend on the slope length of the conical storage area. Some spoke patterns are normally used with materials which have good fluidization characteristics. Others spoke patterns provide maximum aeration for difficult materials which can be fluidized.
In cement vessel's hold:
The sloped bottom of the cargo hold is covered with fluidizing panels. Our airslide fabric is on the surface of fluidizing panels. Rotary piston blowers supply the panels with oil-free compressed air and make the cement flow to the lowest point, where the discharge gate is installed. Powder and particulate material available the Airslide canvas fabric conveyor belt
Application:
In industry
Power Stations: Filtered dust, Flue ash, discharging flue ash, Coal dust
Building and Construction: Cement, furnace dust, gypsum, limestone, finely ground quartz, Calcium hydroxide, lead monoxide, quicklime, acid crystals, Pure clay, phosphates, magnesite concentrate, finely ground fluorid, production of aluminum
Chemical Industry:Thomas meal (Fertilizer), Rubber compounds, sinter dust, catalysts,Sodium sulfate, Soap powder
FAQ
Q: ,What certifacation you have?
A: Generally it is 5-10 working days if the goods are in stock. or it is 15-20 days if the goods are not in stock.It depends on the quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment≤1000USD, 100% in advance. Payment≥1000USD, 30% T/T in advance, balance before shippment.
Q. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them.
Q:What should I do if I'm not satisfied with your product?
A:Please contact us as soon as possible and tell us where went wrong.We can only accept refund or exchange if there is any quality issue.
IF you have some interesting please contact us without any hesitate, we will reply you within 24 hours and welcome to have a visit to our factory for more further business and know each other better. We do have the keen interesting to cooperate with you near future.
