| Place of Origin: | Anhui,China |
| Brand Name: | Industrial Filter Cloth |
| Certification: | ISO9001-2015 |
| Model Number: | Industrial Filter Cloth |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000 pcs per month |
| Product Name: | Industrial Filter Cloth | Weight(g/m2): | 850g/m2 |
|---|---|---|---|
| Thickness(mm): | 2.2-2.4mm | Specifications: | Customized |
| Material: | Aramid,aramid Nomex Metamax | Operating Temperature: | <260℃ (MAX280℃) |
| Applicable Industries: | Cement, Steel,waste Incineration Etc | Usage: | Dust Filter Cloth For Industry Dust Collector Filter |
| Color: | White / Yellow | Air Permeability (L/m2/S):: | 2200±110 |
| High Light: | 0.88mm Industrial Filter Cloth,750B Industrial Filter Cloth,nomex filter cloth |
||

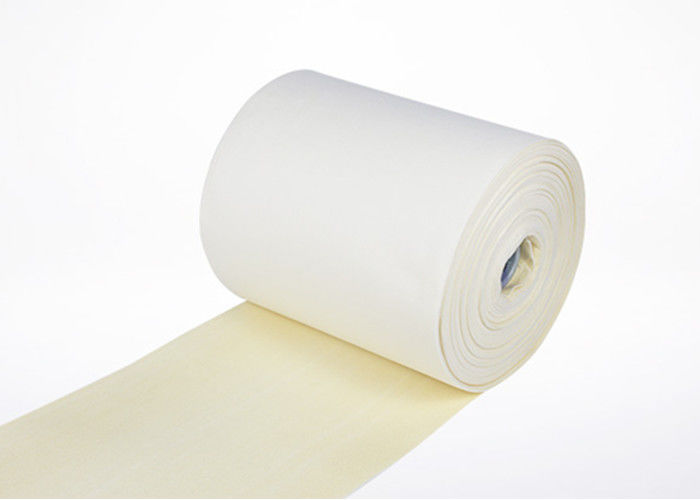

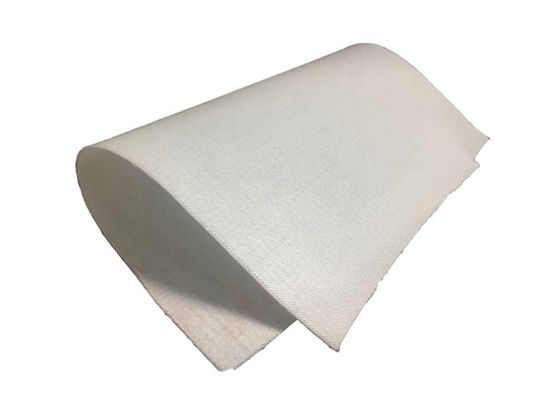

Product Show
Product Description
Features of Filter Cloth
1. Filter cloth is used for sludge dehydration in sewage treatment factories. They have the characteristics of good water permeability, air permeability and non-revealed sludge, acid-resisting, alkali-resisting, heat resistance (180°C) .Because of their designing structure, the sludge can be peeled off easily after pigeonhole filter, so the screen are easily cleaned and have a long working time. Therefore they are designed specially for sludge dehydration.
2.Filtration fabrics for belt filter presses are characterized by high strength, resistance against abrasion and high dimensional stability. Fabric construction secures good water drainage and at the same time protects the sludge cake form going through the fabric. Individual fabric designs differ in speed of dewatering, size of apertures, surface smoothness for easy cake release, resistance against abrasion, etc.
3. Fabrics for belt filter presses are equipped with stainless steel clipper seam and belt edges are melted. There is also the possibility to connect the fabric onto endless belt by using a woven seam, which is stronger and has a higher lifetime than clipper seam.
| Material | PP | The type | 750B |
| Technology | Single layer | Weave method | twill |
| Nature | acid/alkali-resisting Thickness | 0.88mm | |
| Air perm | 35(L/m2·s) | Unit weight | 450-460 (g/m2) |
| Warp density | 268 (root/10cm) | Weft density | 157 (root/10cm) |
| With or without the filter material | Without | ||
Advantages:
Our Company makes many different industry specific fabrics and filters. All fabrics are woven with monofilament wire or a combination of monofilament and multifilament wires from virgin high viscosity PET, PP, PA, PPS chips. After heat-setting or calendaring the fabric has the following advantages:
1. Shape stability: The fabrics will maintain their shape under proper temperature and tensile strength settings.
2. Chemical stability: Citius fabrics are acid proof, alkali proof, and anti-corrosive. They also are able to withstand high temperatures.
3. Long life-span: Citius fabrics are anti-abrasive and have a strong tensile strength.
4. Can meet different filtration requirement (2-100um).
5. Strips easily.
6. Strong seam strength: Citius fabrics combine high quality materials and advanced manufacturing procedures to increase the life of their products.
Application
Dewatering of municipal sludge in sewage plants
Dewatering of paper sludge and pulp
High pressure dewatering of pulp
Production of fruit and vegetable juices
Production of wine
Dewatering of minerals in mining industry
Dewatering of sand
Dewatering of sludge in agriculture
Other industrial separation processes
Packing And Delivery
Packaging:Water proof woven bag and Carton or customized.
Delivery time:Within 15days after payment.And According to your quantity.
FAQ
1. How to choose the right filter cloth for your company?
Cause every filter has its own characteristics and parameters, so when we choose filter material for filter cloth , we have to know the following parameters:
(1) Working enviroment
temperature ( Continuous / Peak) filtering ingredient
(2) Measurement and design (need the drawing)
(3) Material (or we offer the solution).
2. How to assure the filter cloth quality?
All the products we produce are strictly based on international standards. Before the production, you will receive a sample from us for your confirmation.
3. How many times can I clean and reuse a filter cloth?
Filter cloth are designed for one time use. We supply high quality cloth to increase the service time of the filter bag.
4. Sample rule
Usually, we offer the sample free, but you should pay the freight.
