| Place of Origin: | Made in China |
| Brand Name: | Fiberglass Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Fiberglgass Nonwoven Filter Bag For Cement Plant | Thickness: | 1.6-2mm |
|---|---|---|---|
| Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
| Weight: | 500gsm, 550gsm And 700gsm | Usage: | Industry Dust Collector |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 1um Fiberglass Filter Bag,500gsm Fiberglass Filter Bag,Nomex baghouse filter bags |
||
Description
Structure fiberglass dust filter bag fiberglass dust filter bag
Filter bag are composed by woven filter material bag body, snap ring, clamp, chain hoist, etc. The rest of the filter bag dust collector and its accessories are the venturi tube, frame, mouth of elastic ring, etc.
Specifications fiberglass dust filter bag
The diameter of the filter bag is 115-200mm, length is 2000 - 9000mm, the specifications of the commonly used filter bag is 120 - 160 mm diameter, 2000 ~ 6000mm length.
fiberglass dust filter bag
The oval, flat, envelope and support ring types of filter bag, please be sure to enquiry for us engineer. We'd like to provide the most suitable design and filtration material select suggestion for your reference. fiberglass dust filter bag
| Product Model | Fiberglass Filter Bag | |||
| Fiber Material | Polyester Staple | |||
| Scrim | Fiber Glass Scrim | |||
| Thickness | mm | ≥2.1 | ||
| Unit Weight | g/m2 | ≥750 | ||
| Air Permeability | L/(dm2*min) | 150—180 | ||
| Tensile Strength | MD(N) | ≥ | 1600 | |
| CD(N) | ≥ | 1500 | ||
| Break Elongation | MD(%) | < | 10 | |
| CD(%) | < | 10 | ||
| Working Temp | Continuous(℃) | 150 | ||
| Peak(℃) | 170 | |||
| Chemical Properties | Acid-resistant | Moderate | ||
| Alkali-resistant | Bad | |||
| Oxidation-resistant | Good | |||
| Hydrolysis-resistant | Bad | |||
| Ultraviolet resistant | Good | |||
| Finishing | Heat Setting | Singe | Calendar | Chemical Coating |
| Water proof and Oil proof | PTFE Lamination | |||
| Products with desired unit weight, thickness, and finishing styles can be provided according to customers’ requirements. | ||||

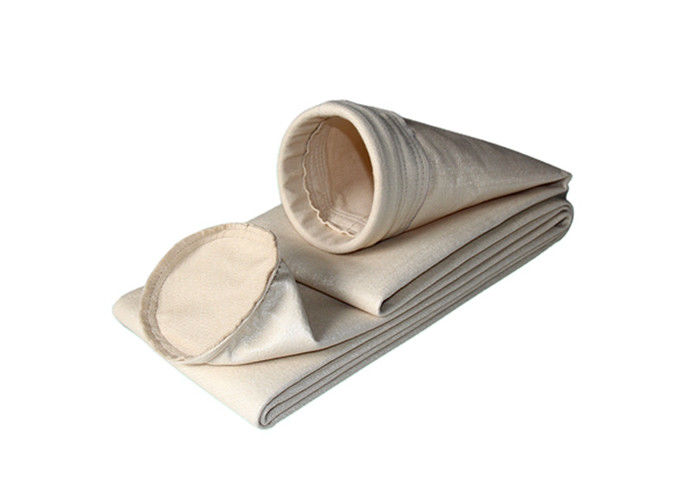

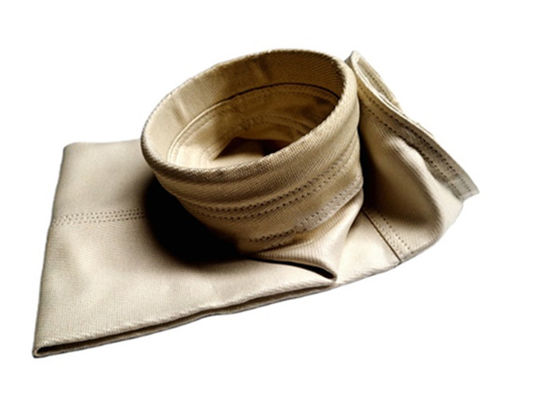

Product Image
Product Feature:
1.High efficient filtration level
2.Depth type filtration
3.Wide range of chemically compatible media
4.High temperature resistance
5.High flow efficiency
6.High air to cloth ratio
7.Various coatings are available
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
