| Place of Origin: | Made in China |
| Brand Name: | Aramid Fabric Dust Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Aramid Cement Dust Collector Filter Bags | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Scrim: | NOMEX | Feature: | Dust Collection,Heat Resistant,High Quality |
| Weight: | 550 G/m2 | Usage: | Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 25 Micron Nomex Filter Bag,10mg/Nm3 Nomex Filter Bag,550g/m2 dust collector bags |
||
Filter media selection:
| Name | NOMEX | P84Complex | P84 | Glass fiber composite filter | |||
| Fiber | NOMEX | P84+NOMEX | P84 | Ultrafine glass fiber+P84 |
glass fiber+P84
|
||
| Scrim | NOMEX | PTFE | PTFE | Ultrafine glass fiber | PTFE | ||
|
Weight (g/m2) |
550 | 550 | 550 | 850 | 650 | ||
|
Continuous use of temperature(℃) Continuous |
200 | 230 | 260 | 260 | 260 | ||
|
Continuous use of temperature(℃) Peak |
230 | 250 | 280 | 280 | 280 | ||
|
Breaking strength (N/5*20CM) Strenght |
Longitudinal | >800 | >800 | >700 | 2400 | >700 | |
| Transverse | >1000 | >1100 | >950 | 2400 | >800 | ||
|
Elongation at break% Elongation |
Longitudinal | <35 | <15 | <30 | <10 | <8 | |
| Transverse | <55 | <50 | <55 | <10 | <15 | ||
|
Air permeability (cm3/cm2*s) |
15~25 | 15~25 | 15~25 | 20~30 | 20~30 | ||
| Applicable filter wind speed(m/min) | <1.2 | <1.2 | <1.2 | <0.8 | <1 | ||
| Heat shrinkage rate%(220℃,260℃2H) | Vertical | <1 | <1 | <1 | <1 | <1 | |
|
Weft
|
<1 | <1 | <1 | <1 | <1 | ||
| A year of pressure to ensure that the value of PA |
<1200
|
<1100
|
<1000
|
<1500
|
<1400 | ||

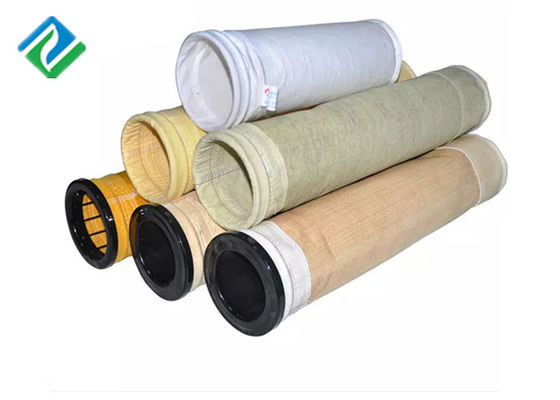

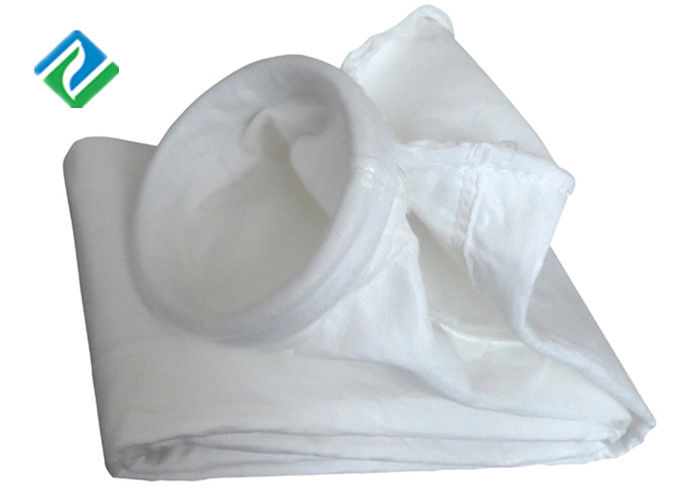

Product Picture
Precautions
⑷ to further improve environmental awareness, dust system is not a production system, it is a production process system in a major equipment, it runs directly affect the production environment and the operator's physical and mental health, so to ensure that the production equipment and dust removal system synchronization Rate and intact rate. In addition, the need to strengthen the dust management system management and maintenance efforts to develop practical operating procedures and maintenance procedures, make full use of the system downtime to do a good job of key dust removal system equipment maintenance and repair.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
