| Place of Origin: | Made in China |
| Brand Name: | Aramid Fabric Dust Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Nomex Filter Bags | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Scrim: | NOMEX | Feature: | Dust Collection,Heat Resistant,High Quality |
| Weight: | 550 G/m2 | Usage: | Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | High Temperature Nomex Filter Bag,non woven Nomex Filter Bag,ISO9001 5 micron filter bags |
||
Filter media selection:
| Name | NOMEX | P84Complex | P84 | Glass fiber composite filter | |||
| Fiber | NOMEX | P84+NOMEX | P84 | Ultrafine glass fiber+P84 |
glass fiber+P84
|
||
| Scrim | NOMEX | PTFE | PTFE | Ultrafine glass fiber | PTFE | ||
|
Weight (g/m2) |
550 | 550 | 550 | 850 | 650 | ||
|
Continuous use of temperature(℃) Continuous |
200 | 230 | 260 | 260 | 260 | ||
|
Continuous use of temperature(℃) Peak |
230 | 250 | 280 | 280 | 280 | ||
|
Breaking strength (N/5*20CM) Strenght |
Longitudinal | >800 | >800 | >700 | 2400 | >700 | |
| Transverse | >1000 | >1100 | >950 | 2400 | >800 | ||
|
Elongation at break% Elongation |
Longitudinal | <35 | <15 | <30 | <10 | <8 | |
| Transverse | <55 | <50 | <55 | <10 | <15 | ||
|
Air permeability (cm3/cm2*s) |
15~25 | 15~25 | 15~25 | 20~30 | 20~30 | ||
| Applicable filter wind speed(m/min) | <1.2 | <1.2 | <1.2 | <0.8 | <1 | ||
| Heat shrinkage rate%(220℃,260℃2H) | Vertical | <1 | <1 | <1 | <1 | <1 | |
|
Weft
|
<1 | <1 | <1 | <1 | <1 | ||
| A year of pressure to ensure that the value of PA |
<1200
|
<1100
|
<1000
|
<1500
|
<1400 | ||

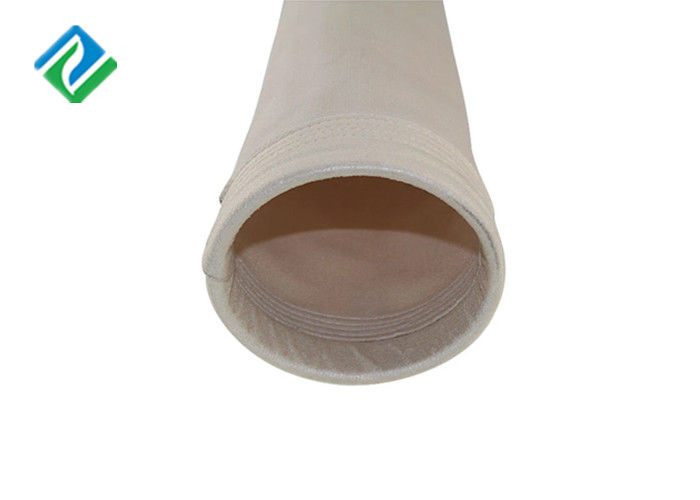

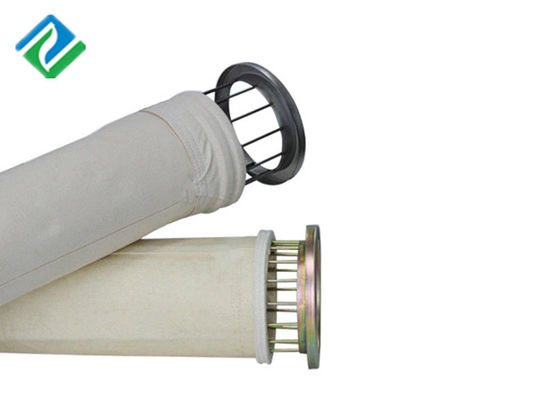

Product Image
Precautions
(2) for the pulse backflush system made the following recommendations:
① the dust on the back of the pipeline and the warehouse replenishment of the fixed way to carry out an effective transformation, such as the screw fixation at the spring pad, double nuts, etc., to further control the burst pipe frequent fall and the warehouse out of the mouth, And so on;
② each set of dust collector is equipped with two sets of air supply lines to ensure that all the way to stop the case can be timely use, and strictly control the compressed air and water conditions;
③ through the amount of ash production and dust analysis and comparison, appropriate to adjust the frequency of blowing and over the air volume.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
