| Place of Origin: | Made in China |
| Brand Name: | Aramid Fabric Dust Filter Bag |
| Certification: | ISO9001-2015 |
| Model Number: | Customized Size Aramid Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | Aramid Fabric Filter Bag | Thickness: | ≥2.0 Mm |
|---|---|---|---|
| Scrim: | NOMEX | Feature: | Dust Collection,Heat Resistant,High Quality |
| Weight: | 550 G/m2 | Usage: | Cement Plant,Power Plant,Steel Plant,Mining Plant Etc. |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 15-30 M3 / M2.m | Filtration Efficiency: | < 5mg/Nm3 |
| High Light: | 400 mic Aramid Filter Bags,550g/M2 Aramid Filter Bags,400um fabric filter bag |
||
Filter media selection:
Use in the dust removal or desulfurization of the new unit, this unit can control the temperature to
solve the dust removal equipment due to aging system caused by the increase in oxygen content
of the problem; and has good corrosion resistance, can be in the Low oxygen content in the use of
conditions
| Serial number | Material | Temperature |
Comparative advantage |
Usage |
||
| Fiber | Base cloth |
Long-term℃
|
Moment℃ | |||
| 1 | PPS Filter media | PPS | 160℃ | 190℃ |
PPS filter in the power plant coal-fired boiler flue gas field is widely used, because of its excellent corrosion resistance and relatively high cost-effective for the power industry widely used. Currently in the world PPS / PPS in the use of coal-fired power plants to reach about 80%. In the material under the conditions of use and normal conditions can reach 30,000 hours of life
|
|
| 2 | PPS+P84 Filter media | PPS | 165℃ | 190℃ | P84 fiber temperature effect is good, three-leaf type of the opposite sex (specific surface area is relatively large), fiber high strength, anti-oxidation, can improve the material temperature instantaneous performance, improve filtration efficiency, improve the load |
Use in the dust concentration is large, low moisture content in the working conditions
|
| 3 |
PPS Filter media |
PTFE | 165℃ | 190℃ | Good temperature resistance, corrosion resistance is particularly good (in strong acid, alkali environment, long-term use, the intensity is almost no attenuation) so you can ensure that the filter temperature level, sulfur oxides, nitrogen oxides, high oxygen content Excellent performance, strength attenuation curve is relatively stable |
Use in the electrical bag with the project or the old unit transformation, to solve the problem of high oxygen content
|
| 4 |
PPS+PTFE Filter media |
PTFE | 170℃ | 200℃ |
Electric bag with the project or the old unit transformation project, or high life requirements, high oxygen content in the case.
|
|
| 5 |
P84+PTFE Filter media |
PTFE | 260℃ | 280℃ |
Electric bag with the project or the old unit transformation project, or high life expectancy, high oxygen content in the working conditions, and high dust concentration, high emission requirements, high temperature performance
|
|
Modification Filter Bag Features:
1) Material:
Bag body ----- Modification filter cloth
Bag cuff ----- steel-plate,rubber rings and garter spring isavailable
2) Working temperature:
Normal Working Temperature ----- 190-celsius-degree
Peak Working Temperature ----- 240-celsius-degree
3) Weight standard580g/m2
4) Filtration efficiencyup to 99.99%
5) Filtering precision: 120~200L/M2*S.
6) Dimension&Length: As customers' requirement.
7)Quality level: Fine strength&ideal air permeability&big durability.

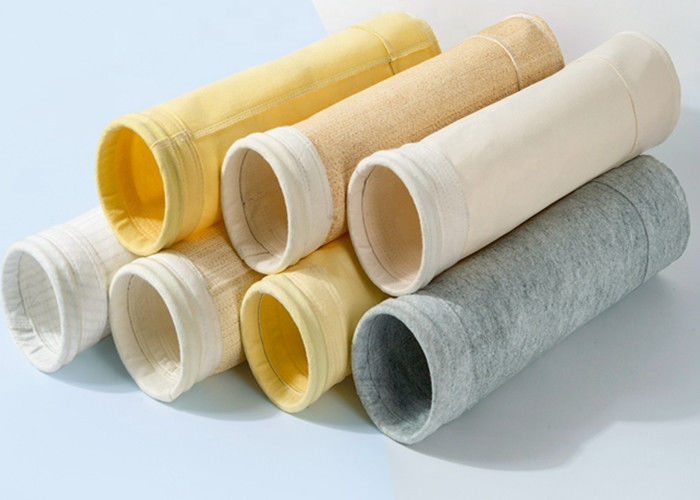

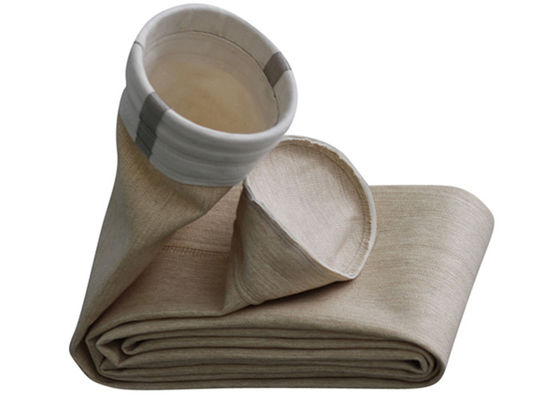

Product Show
Application:
1 iron, steel mill, ferroalloy plant, refractory plant, foundry,power plant of flue gas dedusting system etc.
2 Wastes incinerator, coal fired boilers, fluid fluidized bedboiler flue gas filter etc.
3 Asphalt mixing, building materials, cement ceramic, lime andgypsum and other production sites.
4 Aluminum electrolysis, lead and tin, zinc, copper and other raremetal smelting gas filtering,superfine material recovery, liquid andsolid separation.
Construction:
filters are carefully fabricated and sized to ensure ease ofinstallation and change-out. Generally, dust collector filter bagsare designed to be mounted and gasketed firmly into place with asnap band, corded cuff, or clamp to ensure dust type seal.
Various coatings and finishes can be applied to either side of the dust collector Polyesater filter bag to enhance cleaning and efficiencies, aswell as prolonging service life. Groundwire, anti-collapse rings,and other options can easily be incorporated into bagconstruction. can custom fabricate various types ofattachments to work with your specific shaker mechanism,whether a loop, eyelet, grommet, or other device.
Competitive Advantages:
1. 100% custom pass guaranteed.
2. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
3. Flexible and Untraceable payment terms.
4. Good after-sale service.
5. We offer high quality products at competitive price in quick delivery.
Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
FAQ
Q: How fast can I get the quotation?
A: We usually quote within 12 hours unless holiday in China, if you can urgent to get the price, you can call us so that we can regard your inquiry priority.
Q: Can I get the samples?
A: yes. The sample can be free of charge. But, the shipping expenses should be paid by the customer. The sample will be issued within 3 days. Custom samples take more time
Q: How long does the production take?
A: Usually the delivery time is 30-45 days after confirming order and detail. Delivery time depending on your purchasing quantity and production season.
Q: Can the logo or company name to be printed on the products or package?
A: Sure.We are able to make your brand label and color box as your requirements. Please contact us to discuss details.
Q: What is your payment term?
A: Our normal payment is T/T 30% deposit, 70% balance should be paid before loading or get a copy of B/L.
Q: How does your factory do regarding quality control.
A: Quality is priority. We will do 100% quality inspection before shipment.
Q: Can you produce according to customers' design?
A: Sure, we are professional manufacturer, OEM and ODM are both welcome.
Q: How I know whether your product can be used in my area?
A: Our filter cloth, filter bag can be widely applied in cement, steel, asphalt and chemical industry, to reduce the emission of dust-content tail gas, thus help controlling the pollution of these industries to the atmosphere.
