| Place of Origin: | Hefei,Anhui |
| Brand Name: | Anhui Zhongdian |
| Model Number: | Aramid filter bag |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100000 pcs per month |
| Thickness: | 1.9-2.5 Mm | Material: | Nomex , Aramid , PPS |
|---|---|---|---|
| Applicable: | Industry Dust Collector,Dust Filter,Bag House Filter,Liquid-solid Separation,Pocket-type Dust Collector | Usage: | Dust Filter,Air Filter,Industry Dust Collector |
| Weight: | 450-600GSM | Size: | Customized |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 130 - 260 Degree |
| Air Permeability: | 1.86 | Feature: | High Efficiency,Alkaline Resistant,Large Dust Collection,High Quality |
| High Light: | 600gsm Dust Extraction Filter Bags,Nomex Dust Extraction Filter Bags,1.9mm aramid filter bag |
||

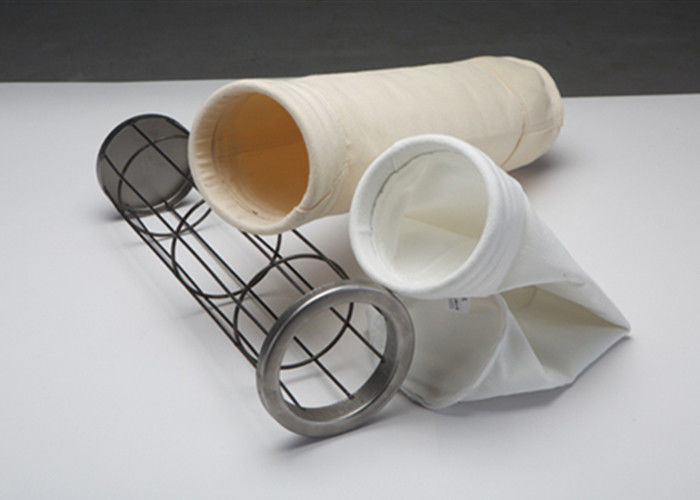

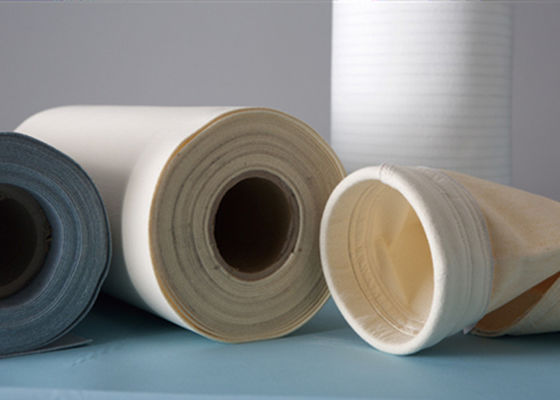

Description:
Material:Nomex(Aramid) and Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. According to your requirements.
Length: 1000mm~8000mm. According to your requirements.
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Technical Parameters:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
Package detail and Delivery time
Samples delivery time : Around1 ~ 2 days
Normal products : Available stocks
LCL orders delivery time : Around7~10 days
FCL orders delivery time : Around15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Elaine Li
Tel: 17805600899
