| Place of Origin: | Hefei,Anhui |
| Brand Name: | Anhui Zhongdian |
| Model Number: | Aramid filter bag |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 pcs per day |
| Optional Fabric: | PTFE(Teflon), P84, PPS, Aramid(Nomex), Fiberglass, Fiberglass Blended | Material: | Nomex(Aramid) |
|---|---|---|---|
| Applicable: | Plaster Plant,Cement Plant,Waster Incinerator,Liquid Fluidized Bed | Usage: | Industry Dust Collector |
| Weight: | 450GSM~550GSM | Size: | Customized |
| Type: | Pocket Filter, Aramid Filter | Working Temperature: | 260-280℃ |
| Air Permeability: | 200-300(L/m2/s) | Treatment: | PTFE Dipping And Coating |
| High Light: | 10um Dust Extractor Filter Bags,450gsm Dust Extractor Filter Bags,Nomex non woven filter bags |
||

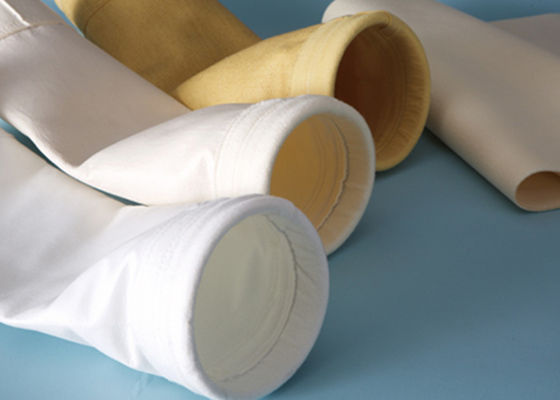

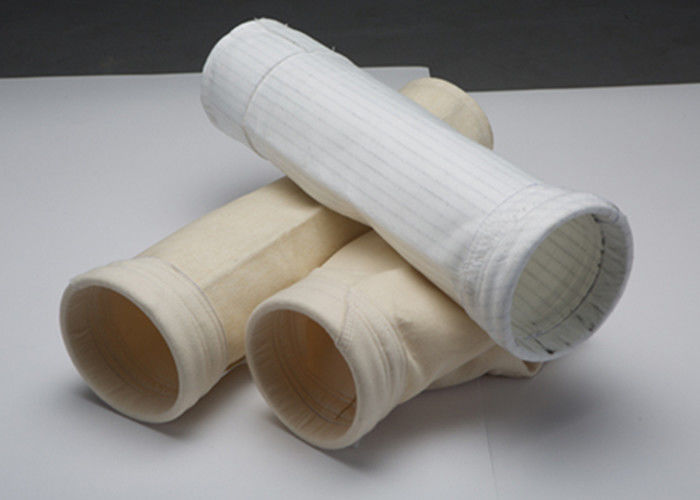

Description:
Material:Nomex(Aramid) and Needle Felt
Weight: 450GSM~550GSM
Diameter: Φ 120,Φ 130, Φ 135,Φ 138, Φ 152, Φ 158 etc. According to your requirements.
Length: 1000mm~8000mm. According to your requirements.
Post Treatment For Filtering Materials
Singeing, calendaring,Heat setting
Water and oil repellent
PTFE Dispersion treatment
PTFE surface Coating treatment
Fire Retardant treatment
Technical Parameters:
| Fibre | Aramid |
| Scrim | Aramid |
| Weight(G/M2) | 450~550 |
| Thickness (mm) | 2.2 |
| Width (mm) | ≤ 2.2 |
| Length | 50m/roll |
| Finish treatment | Singeing, Calendering, Heat-set |
| Air permeability (L/m2/s): | 120~200 |
| Tensile strength (N/5× 20cm) | Warp:>1000 Weft:>1200 |
| Tensile elongation (%): | Warp:<50 Weft:<55 |
| Temperature (ºC): | Continue: 204 Instant: 240 |
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
Package detail and Delivery time
Samples delivery time : 1 ~ 2 days
Normal products : Available stock
LCL orders delivery time : 7~10 days
FCL orders delivery time : 15~20 days
Shipping way & Loading Port :
By sea / air / express
Shanghai / Ning Bo/Tianjin
