| Place of Origin: | Anhui,China |
| Brand Name: | Filter Bag Cage |
| Certification: | ISO9001-2015 |
| Model Number: | Filter Bag Cage |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Pallet , Carton box,knitting bags |
| Delivery Time: | According to the quantity |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | Negotiable |
| Product Name: | Filter Bag Cage | Applicable Industries: | Manufacturing Plant |
|---|---|---|---|
| Function: | Back Bone Support For The Dust Filter Bag | Main Function: | Filter Bag Skeleton |
| Application: | Environment Friendly | Treatment: | Epoxy , Galvanization |
| Material: | Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel | Type: | Round |
| Advantage: | Strong Welding | ||
| High Light: | 8in Filter Bag Cage,5mm Filter Bag Cage,32cm bags and cages |
||
Product Information
Stainless Steel Filter Bag Cage with Spray Coating Treatment
Brief Introduction of Filter Bag Cage
Filter bag cage is the rib of filter bag, it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.Therefore, we need to chose an excellent material for the filter cage, in this condition, stainless steel is the answer.
Technical Information about the stainless steel filter cage
| Specifications | |||
| Types: | Round Style/Flat Style/Envelope Style/ Special Style | ||
| Number Of Wires: | 8/10/12/16/20/24 vertical wires | ||
| Ring Space: | Ring spacing standard is 6 inch or 8 inch. (15.24 or 20.32cm) | ||
| Cage Diameter: | Cage diameters range from 4 inch to 8 inch (100-200mm) | ||
| Wire thickness: | 2-5mm | ||
| Material: | Carbon Steel, Galvanized Steel, Stainless Steel | ||
| Finish: | PVC vinyl coating, spray coating | ||
| Packaging: | In woven bags, 20 pieces/bag | ||
| Usage: | Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. | ||
| Advantages: | 1, No corrosion, no damage 2, 3-5 times longer life than other bag cage with steel 3, Economical maintenance (almost no Maintenance required) 4, Prominent effect in removing dust from Filter by pulsing 5. Easy to install (ventury is not required) |
||
| Standard Technical Data | |||
| Round Style | Diameter (mm) | Bag Diameter (mm) | Length (mm) |
| 115 | 120 | 2000, 2400, 2800, 3200, 3600, 4000, 4400, 4800, 5200, 5600, 6000, 7000 |
|
| 125 | 130 | ||
| 147 | 152 | ||
| 195 | 200 | ||
| Flat Style | Perimeter | Bag Perimeter | Length (mm) |
| 800 | 800 | 2000, 3000, 4000, 5000, 6000 | |
| 900 | 900 | ||
| Envelope Style | Length Width Thickness | Bag Length Width Thickness | |
| 1500X750x25mm | 1500X750x25mm | ||

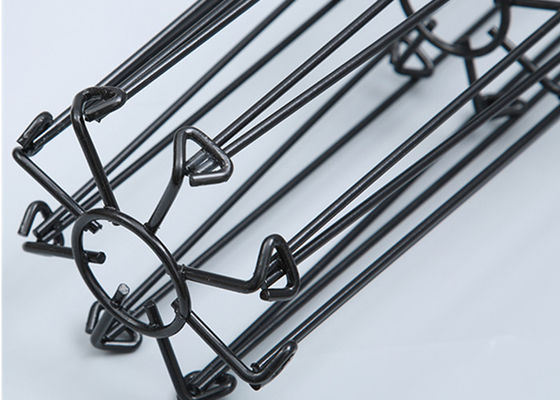

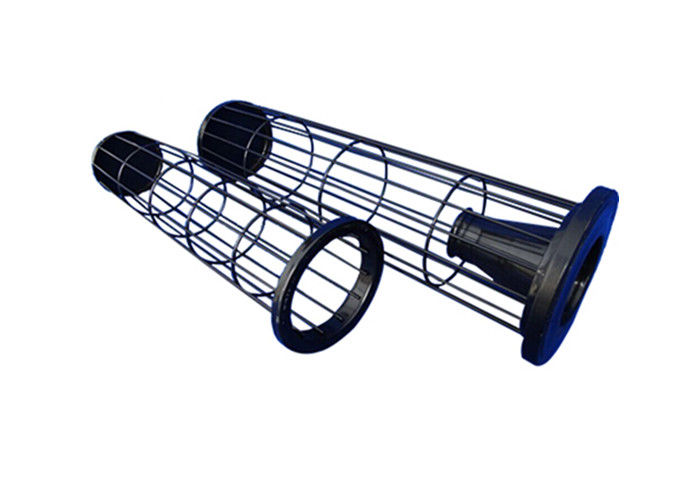

Product Show
Features:
1) Complete set product line for dust collector products
2) High purification efficiency
3) Reliable operation and service life
4) Small maintenance workload
5) Customized order service
FAQ
Q1. How about your delivery time?
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. Is it convenient to install and operate the equipment?
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
Q4. What is your terms of payment?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. Can it really meet the environmental requirements?
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
Q6. What if the equipment is broken?
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
