Place of Origin: | Anhui,China |
Brand Name: | Filter Bag Cage |
Certification: | ISO9001-2015 |
Model Number: | Filter Bag Cage |
Minimum Order Quantity: | 100 pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Pallet , Carton box,knitting bags |
Delivery Time: | According to the quantity |
Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
Supply Ability: | Negotiable |
Product Name: | Filter Bag Cage | Applicable Industries: | Manufacturing Plant |
---|---|---|---|
Function: | Back Bone Support For The Dust Filter Bag | Main Function: | Filter Bag Skeleton |
Application: | Environment Friendly | Treatment: | Epoxy , Galvanization |
Material: | Carbon Steel, Galvanized Steel, Galvanized Steel, Stainless Steel | Type: | Round |
Advantage: | Strong Welding | ||
High Light: | 4mm Bag Filter Cage,SS304 Bag Filter Cage,4mm bag cage |
Product Information
1. Filter bag cage to be galvanized/silicon coating
2. Carbon or Stainless steel
3. ISO9001:2008 Certified
5. Any length or dia.
The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1. material of cage: carbon steel or SS304,316,316L
2. type of cage: any style
3. type of the horizontal bar: round ring or star or envelop or oval
4. surface treatment: zinc-galvanization or silicon coating or epoxy
5. style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be Φ3mm, Φ3.2mm, Φ3.5mm, Φ3.8mm or Φ4mm.
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
Specifications |
|||
Types: |
Round Style/Flat Style/Envelope Style/ Special Style |
||
Number Of Wires: |
8/10/12/16/20/24 vertical wires |
||
Ring Space: |
Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm) |
||
Cage Diameter: |
Cage diameters range from 4 inch to 8 inch (100mm to 200mm) |
||
Wire thickness: |
Wire thickness ranges are 2mm to 5mm |
||
Material: |
Carbon Stee, Galvanized Steel, Stainless Steel |
||
Finishment: |
Epoxy, PVC vinyl coating |
||
Packaging: |
Cages are packed in custom designed cartons |
||
Usage: |
Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments. |
||
Advantages: |
1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel 4. economical maintenance(almost no Maintenance required) 5.prominent effect in removing dust from Filter by pulsing 6.easy to install 7.no ventury installation required |
||
Standard Technical Data |
|||
Round Style |
Diameter(mm) |
Bag Diameter(mm) |
Length(mm) |
115 |
120 |
2000,2400 2800, 3200,3600,4000, 4400,4800,5200, 5600,6000,7000 |
|
125 |
130 |
||
147 |
152 |
||
195 |
200 |
||
Flat Style |
Perimeter |
Bag Perimeter |
Length(mm) |
800 |
800 |
2000 3000 4000 5000 6000 |
|
900 |
900 |
||
Envelope Style |
Length Width Thickness |
Bag Length Width Thickness |
|
1500X750x25mm |
1500X750x25mm |

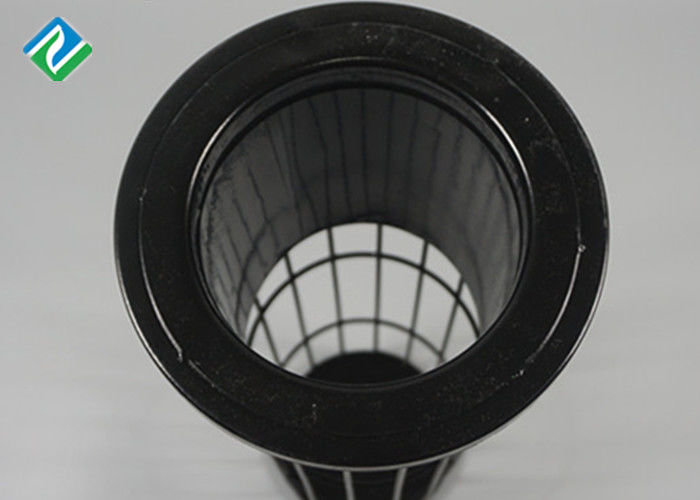

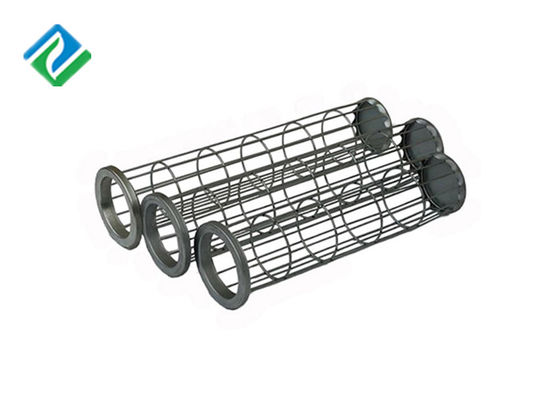

Product Show
FAQ
Q1. How about your delivery time?
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q2. Can you produce according to the samples?
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. Is it convenient to install and operate the equipment?
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
Q4. What is your terms of payment?
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. Can it really meet the environmental requirements?
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
Q6. What if the equipment is broken?
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
