Place of Origin: | Made in China |
Brand Name: | Filter Bag For Cement Plant |
Certification: | ISO9001-2015 |
Model Number: | Polyester Acrylic PPS P84 PTFE fiberglass dust filter bag |
Minimum Order Quantity: | 100pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton or Woven Bag |
Delivery Time: | 3 days |
Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
Supply Ability: | 1000 pcs per day |
Material: | PTFE | Thickness: | 1.6-2mm |
---|---|---|---|
Application: | Building Material Shops, Manufacturing Plant, Printing Shops, Costruction Works | Feature: | High Filtration Accuracy Anti-static Anti-acid And Alkal Anti-abrasion |
Weight: | 500gsm, 550gsm And 700gsm | Usage: | Air Filtration,Powder Filtration,Metal Collection Ect., |
Type: | Pocket Filter, Aramid Filter | Working Temperature: | 120-150 Degree |
Air Permeability: | 120 L/m2/S | Filtration Efficiency: | < 5mg/Nm3 |
High Light: | 0.1 Micron Cement Filter Bags,700gsm Cement Filter Bags,PTFE 5 Micron Filter Bags |
Product Parameter
Material |
Polyester + Conductive Fiber + Normal Base Fabric |
|
Weight (g/m2) |
500 |
|
---|---|---|
Thickness (mm) |
1.8 |
|
Air Permeability (L/m2/S) |
200-350 |
|
Break Elongation (N/5x20cm) |
Warp |
>1000 |
Weft |
>1200 |
|
Liner Strinkage (%) |
Warp |
<35 |
Weft |
<55 |
|
Break Strength (Mpa/min) |
2.4 |
|
Operating Temperature (℃) |
≤130 |
|
Instant Temperature (℃) |
150 |
|
Resistance to Acid |
Good |
|
Resistance to Alkali |
Fair |
|
Resistance to Abrasion |
Excellent |
|
Resistance to Hydrolysis |
Fair |
|
Mechanical Finish |
Singed, Glazed, Heat-Seting |

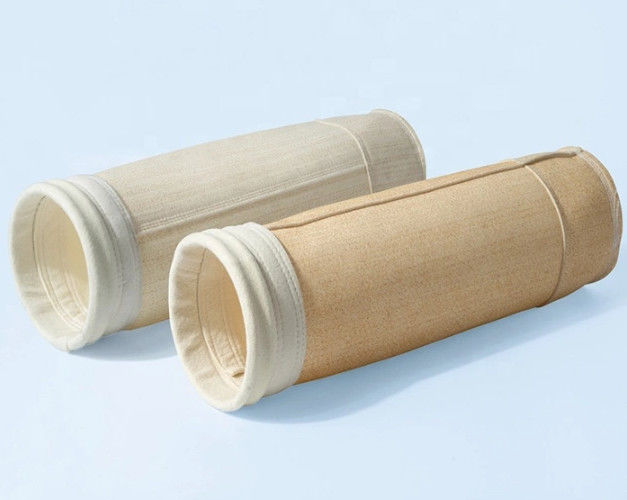

Product Image
Product Details
General industrial dust can easily cause explosions and fires when the concentration reaches a certain level (explosion limit) and meet electrostatic discharge sparks or external ignition. If the dusts need to be collected in a bag, it is required that the filter material of the dust bag is anti-static. Entex produced Anti-static Needle-punched Filter felt and filter cloth according to the needs of blast furnace gas coal dust collection and cement mill coal dust collection and other industries.
In addition to the process of producing a conventional needle felt, the production of the anti-static filter cloth requires that
the conductive fiber yarn is incorporated into the warp yarn of the base fabric of the needle felt or that the conductive fiber or the conductive material is mixed in the chemical fiber. Our company can produce these two types.
Model please inquiry us directly. We accept customization.
How to confirm the model and price:
1. Material of the filter bag
2. Diameter of the tube sheet
3. Dimension of the filter bag
4. Quantity
5. Photos of existing filter bag
If you don't have the above information, feel free to contact me .
Produce process:
1)Fiber:high grade Aramid fiber
2)Scrim: Aramid/PTFE
3)Produce Process:needle punched
4)Filter Felt Weight: 550±20gsm
5)Filter Felt Thickness: 2.0±0.2mm
6)Finish treatment:Singeing, calendaring, PTFE dipping
7)Laboratory Testing:check the test report below
8)Cut according to customer's requirement
9)Packing according to customer's requirement
Precautions for dust bag installation
1. Old cloth bags of the new process should not be mixed, to avoid different damage time and affect the normal operation of the dust removal equipment.
2. Aging of cloth bags. Mainly due to the following reasons, a cause investigation is needed, corresponding measures are taken and the dust filter bag is replaced.
1).Due to abnormal high temperature and hardening shrinkage; 2). Due to contact with the acid, alkali or organic solvent vapor reaction; 3).React with moisture.
3. The filter cloth should not be hung too tightly or too tightly. It is easy to accumulate dust if it is too loose.
4.Replace the cloth bag, blow it with compressed air first, and then check if there are any holes. After the holes are repaired, leave them for replacement. As dust
Rinse the cloth bag, rinse it with water, and leave it for replacement after drying.
5.Blockage of dust bag. When the bag is clogged, the resistance increases, which can be expressed by the reading of the differential pressure gauge. Cloth Closure
plugs are the main cause of wear, perforation, and shedding of bags. The cause of the clogging of the dust bag is checked and repaired as follows.
1).Temporarily strengthen the dust removal to solve the clogging of the bag; 2).Replace the bag partially or completely; 3).Adjust the installation and operating conditions.
FAQ
Q1. How about your delivery time? |
A1: Generally, it will take 7-30 days after receiving your advance payment. The specific delivery time depends on the items , transportation ways and the quantity of your order.
Q2. Can you produce according to the samples? |
A2: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q3. Is it convenient to install and operate the equipment? |
A3: Convenient, we will take a one-to-one service for customers, for each customer tailored for your product equipment and a complete set of solutions.
Q4. What is your terms of payment? |
A4: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q5. Can it really meet the environmental requirements? |
A5: Ensure that customers meet the environmental standards, the environmental situation of the current 10 mg high emission standards.
Q6. What if the equipment is broken? |
A6: If any problem occurs during the warranty period, we will try our best to solve it and achieve customer satisfaction.After the warranty period of equipment supporting wearing parts to provide 10% discount policy, and to ensure that customers in the use of no worries.
