| Place of Origin: | Hefei,Anhui |
| Brand Name: | PPS Needle Felt PTFE Membrane Filter Bags |
| Certification: | ISO9001-2015 |
| Model Number: | Dust Collector Filter Bags |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or Woven Bag |
| Delivery Time: | 3 days |
| Payment Terms: | T/T, Western Union, L/C, 30% in advance,the balance before loading |
| Supply Ability: | 1000 pcs per day |
| Product Name: | 25 50 75 200 300 500 Micron PPS Filter Bags | Seam Treatment: | WS-Fused Seam / SE-Stitched Seam / R-Semi-circle |
|---|---|---|---|
| Applicable: | Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc. | Finishing Treatment: | Singeing , Calendering |
| Weight: | 450GSM~550GSM | Usage: | 25 50 75 200 300 500 Micron Dust Filter |
| Type: | 25 50 75 200 300 500 Micron Pocket Filter,PPS Filter | Working Temperature: | 120-150 Degree |
| Air Permeability: | 1.68 M3/m2/min | ||
| High Light: | 500g/M2 PPS Filter Bags,500 micron PPS Filter Bags,450gsm 24 diameter dust collector bags |
||
Features & Benefits
1. Highly efficient filtration level
2. Depth type filtration
3. Wide range of chemically compatible media
4. High temperature resistance
5. High flow efficiency
6. High air to cloth ratio
7. Various coatings are available
Technical Specifications
1. Material: PPS
2. Weight (g/): 500
3Thickness (mm): 1.8
4. Air permeability (L/*s): 200-300
5. Breaking strength (N/5*20cm): Wrap: 1250
Weft: 1350
6. Elongation (%): Wrap<40
Weft <60
7. Working temperature: Peak: 190
Cont: 220
8. Finishing: Singed calendered heat set
Sizes
Customized sizes are available
Configurations
1. Snap band type
2. Flange collar type
3. Rubber cord type
4. Customized
Applications
1. Pharmaceuticals
2. Steel & Power
3. Powder coating
4. Shot Blasting
5. Cement
6. Chemicals
7. Metals & Minerals
8. Paints & Pigments
model |
material |
Weight (g/square meter) |
Thickness (mm) |
Air permeability (L/square meter*s) |
Breaking strength (N/5*20cm) | Elongation (%) | Working temperature | finishing |
||||
| wrap | weft | wrap | weft | Peak | cont | |||||||
| Fiberglass felt | Fiberglass | 800 | 2.4 | 200-300 | 1800 | 1800 | <10 | <10 | 240 | 260 | PTFE dip forming | |
| Nomex Felt | Nomex | 500 | 2.0 | 200-400 | 1300 | 1500 | <50 | <55 | 204 | 240 | Singed calendered heat set | |
| PPS felt | PPS | 500 | 1.8 | 200-300 | 1250 | 1350 | <40 | <60 | 190 | 220 | Singed calendered heat set | |
| P84 felt | P84 | 500 | 2.0 | 200-300 | 1100 | 1200 | <25 | <35 | 260 | 280 | PTFE dip forming | |
| FMS felt | FMS | 800 | 2.5 | 200-300 | 3260 | 3300 | <10 | <15 | 260 | 300 | PTFE dip forming | |
| PTFE felt | 100% PTFE | 750 | 1.1 | 150-250 | 620N/5cm | 510N/5cm | <5 | <5 | 240 | 260 | Singed heat set | |

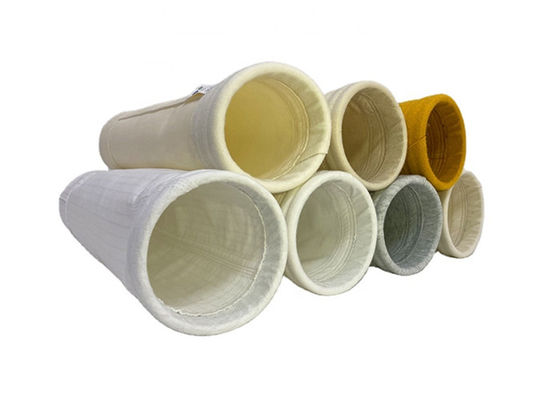

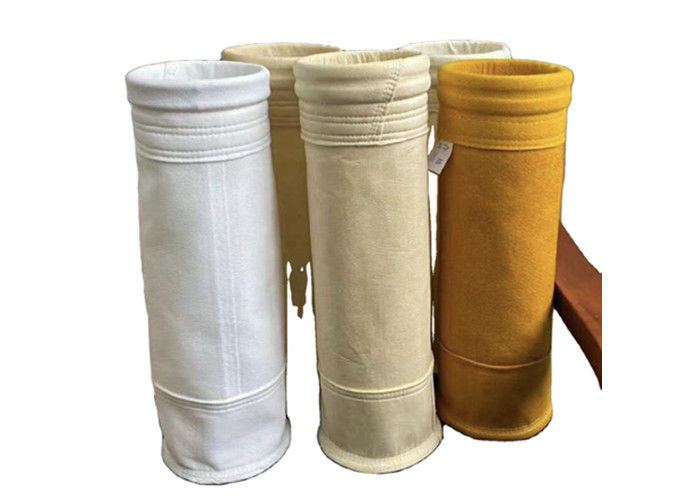

Product Show
Description:
Our company mainly researches and develops hi-tech filter, dust removal products and gradually develop other comprehensive environmental protection projects as sewage treatment and garbage treatment.
Other Information:
We mainly produce 6 range of filter products:
1. Woven filter cloth (multi or mono filament)
In material of PA66. Polyester, PP, PVA, xxxxx
2. Belt filter cloth
Belt fabric in mateiral of Polyester.
Dewatering belt, spiral belt, drying belt, etc.
3. Ari slide belt.
Thickness: 4mm, 5mm, 6mm, 7mm, 8mm
Standard length: Up to 500 m (1650 ft. )
Material Structure: High tencity polyester yarn, circular woven in plain weave, one side polyurethane-coating, for maximumair permeability on the uncoated side, specially designed for good air transport.
4. Needle punched non woven felt in Material of PP, Polyester, Acrylic, P84, PTFE, Nomex (Aramid), PPS, etc Weightness: 100GSM to 3000GSM.
5. Spunbond non Woven in material of PP, Polyester, or PP/PE bicomponent.
Weightness: 10GSM to 280GSM.
Be able to be pleated, and to be made cartridges.
And Widely used for packaging.
6. Filter bags in various material.
Thread Sewing or Welding. Standard size #1#2#3#4 or your special size.
What we can offer:
1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.
We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.
Shipping way & Package details :
By sea / air / express
Shanghai / Ning Bo/Tianjin
Contact Person: Elaine Li
Tel: 17805600899
