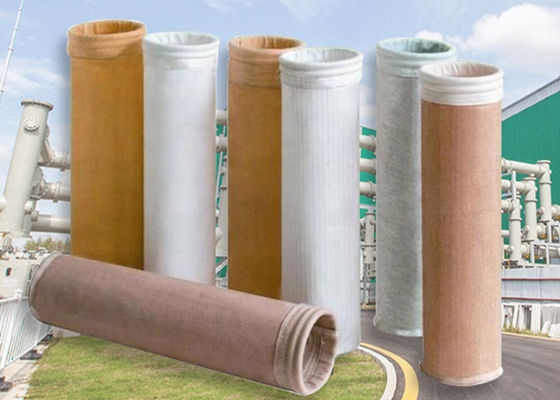

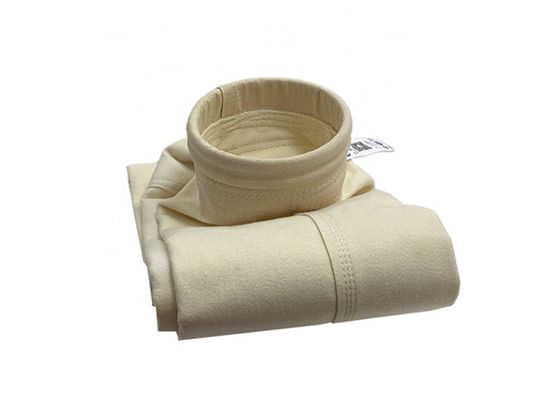

PTFE 300 Micron 450gsm Replacement Dust Collector Filter Bags

Product Details:

Place of Origin:	Hefei,Anhui
Brand Name:	PPS Needle Felt PTFE Membrane Filter Bags
Certification:	ISO9001-2015
Model Number:	Dust Collector Filter Bags

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Carton or Woven Bag
Delivery Time:	3 days
Payment Terms:	T/T, Western Union, L/C, 30% in advance,the balance before loading
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	25 50 75 200 300 500 Micron PPS Filter Bags	Seam Treatment:	WS-Fused Seam / SE-Stitched Seam / R-Semi-circle
Applicable:	Cement Plant,Power Plant,Steel Plant,Mining Plant,Asphalt Plant Etc.	Finishing Treatment:	Singeing , Calendering
Weight:	450GSM~550GSM	Usage:	25 50 75 200 300 500 Micron Dust Filter
Type:	25 50 75 200 300 500 Micron Pocket Filter,PPS Filter	Working Temperature:	120-150 Degree
Air Permeability:	1.68 M3/m2/min
High Light:	450gsm Replacement Dust Collector Filter Bags , 500g/m2 Replacement Dust Collector Filter Bags , 550gsm jet dust collector bags

PPS And PTFE Fiber Non Woven Filter Bag For Dust Housing Industrial PPS Filter Bag For Cement Plants

Product Parameters

Technicial Specification
Name/Fiber	PPS+PTFE
Component	Shell Fiber	PPS+PTFE
	Scrim	PTFE
Weight	580-620g
Thickness	1.8mm
Temperature	Continue	170(ºC)
	Peak	200(ºC)
Air Permeability	120(L/dm².min)
Elogation at break	Length	<=10%
	Cross	<=40%
Tensile Strength N5*20CM	Length	>=850
	Cross	>=1200
After Treatment/Finish	Calendar,Singed,Heat-set,Antistatic,PTFEmembrane,PTFE macreate,oil and water proof
Application Field/Use Scope	Cement and Steel plant,Coal-fired power plant,Chemicial Industry,Instruction,waste incineration plant,Circulating fluidized bed boilers,etc

PPS filter bag have different kinds of filter, PPS filter bag, PPS water and oil repellent filter bag, PPS (ptfe scrim)filter bag, PPS&PTFE mixing filter bag, 30%PPS and 70%PTFE filter bag, 50%PPS and 50%PTFE filter bag, 70% PPS and 30% PTFE filter bag.

PPS fiber can keep intensity completely and bear chemistry naturing inherently, keep good filtration performance among the abominable environment, reach ideal service life. In coal boiler, rubbish incinerator, power plant of fly ash filtering of pulse clear dust catcher, PPS filter felts are an ideal filtration material.

PPS filter felt is one of the main filter material able to bear the high temperature according to processed of production technology and artificial material of other high-temperature filter felt.

We can support 0.1 micron filter bag / 1 micron filter bags / 5micron filter bag / 0.5 micron filter bag / 25 micron filter bag / 10 micron filter bag / 200 micron filter bag / 50 micron filter bag / 100 micron filter bag.

Product Show

Product Range:

Dust Collector

Exhaust Gas Purification

Screw Conveyor

Bucket Elevator

Star Unloader

Dust Humidifier Mixer

Filter Cage

Filter Bag

Pause Valve

Description:
Our company mainly researches and develops hi-tech filter, dust removal products and gradually develop other comprehensive environmental protection projects as sewage treatment and garbage treatment.
Other Information:

We mainly produce 6 range of filter products:
1. Woven filter cloth (multi or mono filament)
In material of PA66. Polyester, PP, PVA, xxxxx

2. Belt filter cloth
Belt fabric in mateiral of Polyester.
Dewatering belt, spiral belt, drying belt, etc.

3. Ari slide belt.
Thickness: 4mm, 5mm, 6mm, 7mm, 8mm
Standard length: Up to 500 m (1650 ft. )
Material Structure: High tencity polyester yarn, circular woven in plain weave, one side polyurethane-coating, for maximumair permeability on the uncoated side, specially designed for good air transport.

4. Needle punched non woven felt in Material of PP, Polyester, Acrylic, P84, PTFE, Nomex (Aramid), PPS, etc Weightness: 100GSM to 3000GSM.

5. Spunbond non Woven in material of PP, Polyester, or PP/PE bicomponent.
Weightness: 10GSM to 280GSM.
Be able to be pleated, and to be made cartridges.
And Widely used for packaging.

6. Filter bags in various material.
Thread Sewing or Welding. Standard size #1#2#3#4 or your special size.

What we can offer:

1.We can customize filter cloth according to your needs, say, cable ties, velcro, buttonhole.
2.Various filter cloth: plate frame filter cloth, recessed filter cloth, membrane filter cloth, CGR filter cloth, high temperature filter cloth, anti-wear filter cloth etc...
3.Or you can express samples directly.

Shipping way & Package details :

By sea / air / express

Shanghai / Ning Bo/Tianjin
